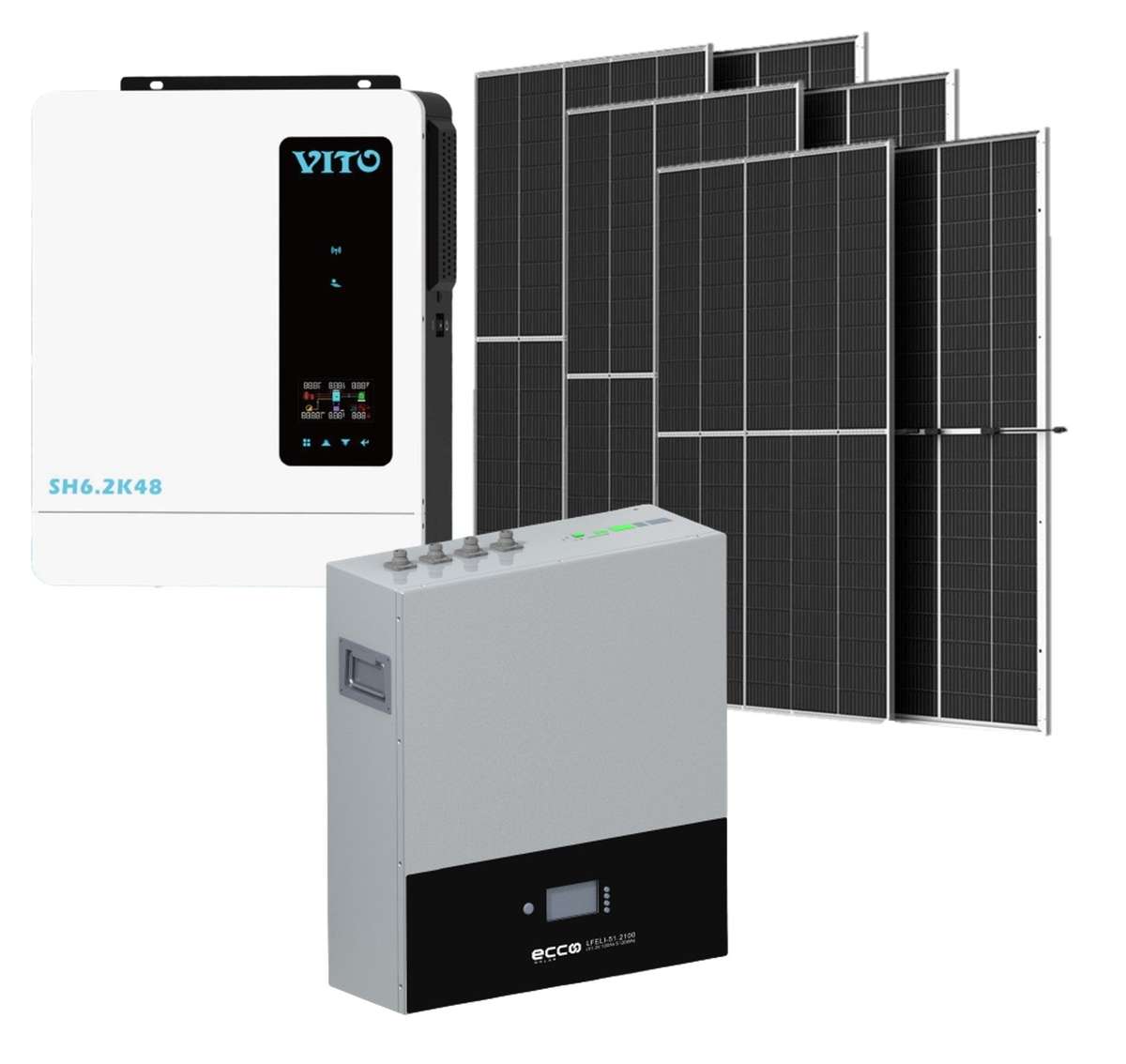

6.2KVA Hybrid Inverter and Battery 6200 Watt 48V ECCO 5.12 KWH Lithium Battery Plus 6 X 450W Solar Panels

Hybrid Inverter 6.2KVA 6200W Watt MPPT SH6.2K48 Vito

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

NOTE: FAN ALWAYS ON

Features
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS (Optional)
• Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
• Generator or Utility.
• PV modules

PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc

RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-511Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz

TWO LOAD OUTPUT POWER:

Full Load6200W
Maximum Main Load 6200W
Maximum Second Load 2067W

Size:

530 x 415 x 180

11kg

What's in the box
1 x Inverter
1 x User Manual

ECCO Lithium Ion Battery 51.2V 100AH 5.1KWH Wall Mounted

• + Wall-mounted design, easy to install, and aesthetic
  + Adopts lithium iron phosphate battery cell, safe to use, long life cycle
  + Maximum 1C charge/discharge
  + User-friendly human-machine inter face
  + Compatible with multiple brands of inverters at the same time
  + Supports a maximum of 16 parallel groups
  + Meet North American UL, EU TUV standards

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership. Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries. Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity. Wider Temperature Range: -20 C~60 C. Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

Battery Parameters:

Battery Type is set to "USE."
Bulk Charge Voltage is set to 56.4-56.6V.
Float Charge Voltage is set to 54V.
Cut Off Voltage is set to 47V.

Battery Specifications:

Characteristics:

- High energy density and conversion efficiency
- Intelligent software anti-theft design
- Compatible with many inverters
- Easy maintenance with SOC (charge status) and SOH (health status)detection

What's in the box
1 x Ecco Lithium Ion Phosphate 51.2v 100ah 5.120 KWh Battery

Battery Cables & Communication Cable Included

Size:

59.4 x 51.8 x 28.2 cm

36kg

450w Solar Panel Mono JMD450P-120M Ecco

• Module Type JMD450P-120M
• Rate Maximum Power( Pmax/W) 450
• Module Efficiency(%) 20.80
• Open Circuit Volatge(Voc/V) 41.25V
• Short Circuit Current(Isc/A) 13.89
• Voltage at Pmax(Vmp/V) 34.67
• Current at Pmax(Imp/A) 12.98

(Courier for panels are at your own risk)

Combo includes:

• 1x ECCO Lithium Ion Battery 51.2V 100AH 5.1KWH Wall Mounted (5 Years Warranty)

• 1x Hybrid Inverter 6.2KVA 6200W Watt MPPT Vito SH6.2K48 (2 Year Warranty)

• 6x Ecco Solar 450 w Solar Panel Mono 10 Year Warranty

• PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK

ADD A Solar Installation Kit:

Solar Installation Kit for 6 Solar Panels, Inverter and Battery
