Hybrid Inverter Solar Kit
6.2KVA MPPT Pure Sine Wave Load shedding Combo 6200 Watt 48V 106AH 5.09 KWH Lithium BATTERY
Overcome load shedding with this premium hybrid inverter load-shedding Combo
The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.
Hybrid Inverter 6.2 KVA 6200 Watt MPPT 48V- Conderenergy (S-2455)

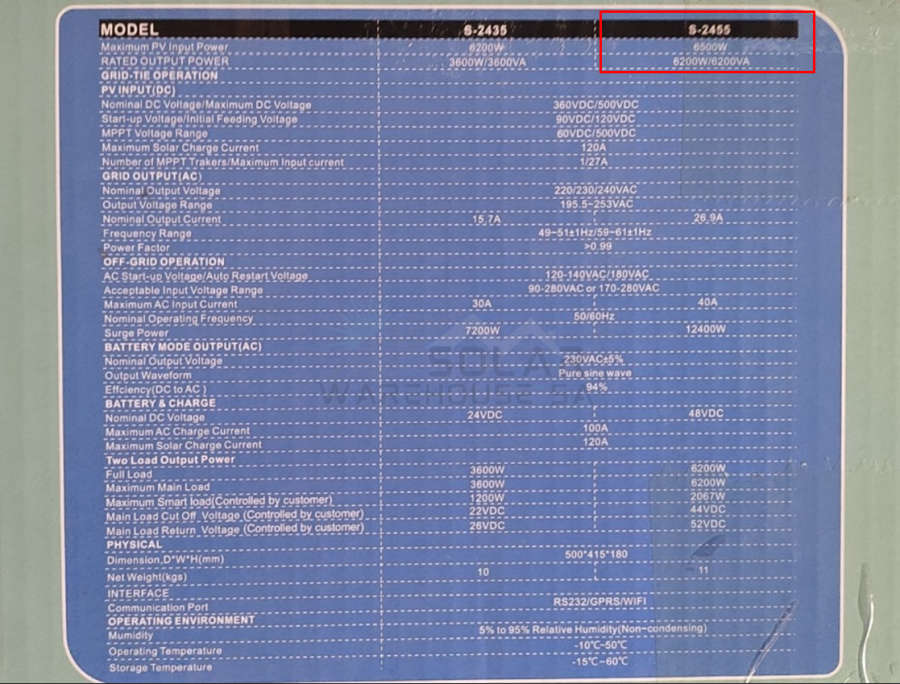

(Please note the label on the unit is not correct, as per the supplier this is a 6200 watt unit as per the label on the box and not the inverter)
One will be able to run lights, television, and wifi.
Compatible with mains voltage and can charge batteries.
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
-Pure sine wave inverter
-Built-in solar charge controller
-MPPT
Operating Temperature Range: -10-50'C
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:60-450Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6500W
Maximum Solar Charging Current: 120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range: 195-253Vac
Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Current: 27A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load: 6200W
Maximum Main load: 6200W Maximum Second load: 1833W Main load cut off voltage: 44Vdc Main load return voltage:55Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:40A
Normal operating frequency:50/60Hz
Surge power:11000VA
Maximum AC charging current: 100A
Add a wifi dongle:
https://solarwarehousesa.com/products/sun-solar-hybrid-inverter-wifi-dongle-for-s-21-series-s-22-series?_pos=1&_sid=f6dece05a&_ss=r
What's in the box
1 x Inverter
1 x User Manual
Battery Specifications:
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Energy:5.09kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage:48V
Nominal Capacity :106Ah
Energy Density:5427 KWh
Dimensions(LxWxH) :688 x 447 x 211mm
Weight (Approx.):49.5KGS
Terminal Type: M6
Terminal Torque:8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance:<30mO
Efficiency - round trip:99%
Self Discharge per Month:<3%
Max parallel connectors:16Pcs
Series connections:Not Allowed
Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
Charge Temperature :20 C to 65
Storage Temperature :0C to 50 C
Bluetooth(App) :Optional
LCD Screen: Optional
Heating Function: Optional
Voltage Window: Optional
Recommend Charge Voltage:43.2V-58.4V
Max Charge Voltage:57.60.20V
Recommend Charge current:58.40.20V
Max Discharging Voltage:43.20.20V
Max Continuous Discharge Current :100A
Peak Discharge Current:150A
Size:
688 x 447 x 211 mm
49.5 Kg
What's In the Box:
- 1 x SVOLT 48V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card

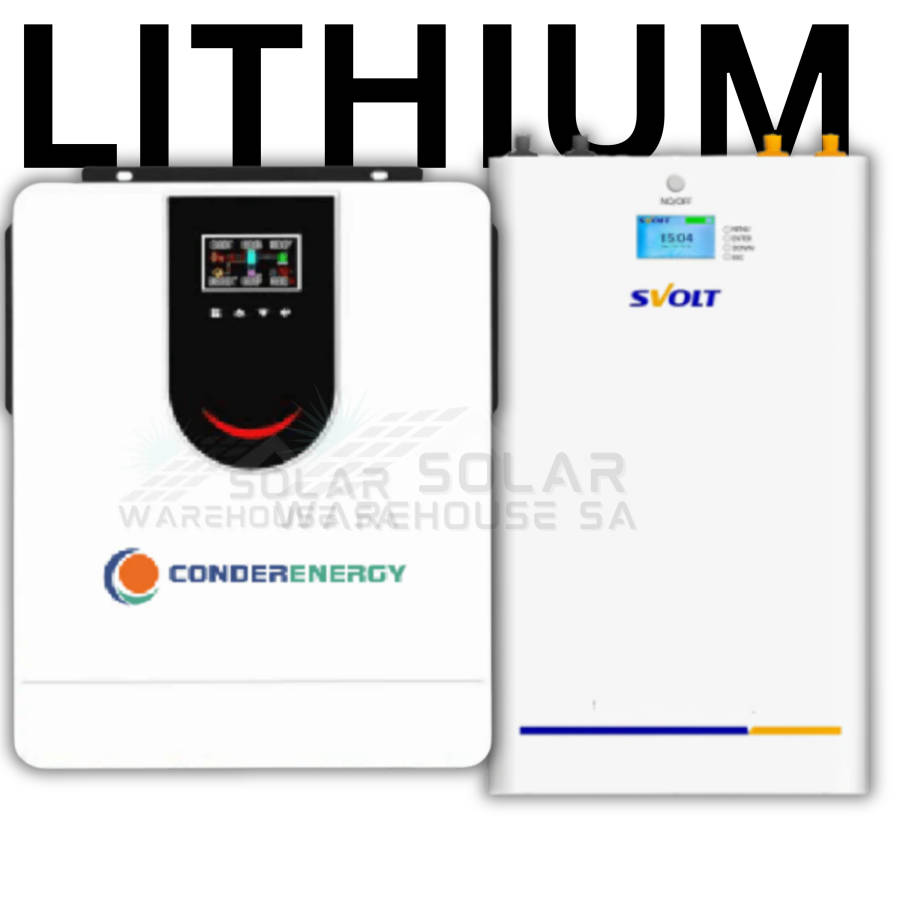

Combo includes:
- 1xSVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery
(5 Years Warranty) - 1xHybrid Inverter 6.2 KVA 6200 Watt MPPT 48V Conderenergy s-2455
(1 Year Warranty)
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
