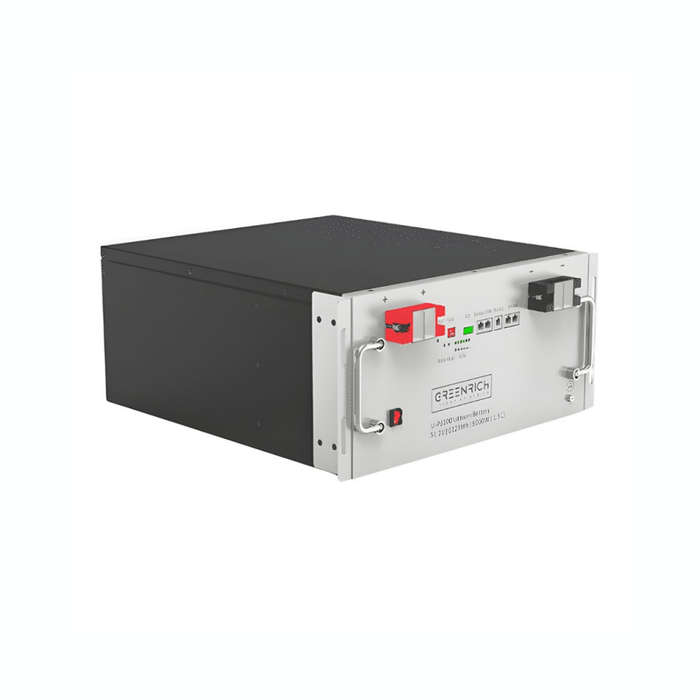

The Greenrich Lithium Battery U-P6100 is a high-performance energy storage solution boasting a 6.1kWh capacity and 51.2V rated voltage.
It prioritizes safety with comprehensive protection features, including overvoltage, undervoltage, short-circuit, and temperature protection.
This makes it a reliable and secure option for various applications. Additionally, the battery supports fast charging with a maximum current of 80A and delivers a powerful 200A discharge current (1.5C continuous).
Features
Safe and Secure: Overvoltage, Undervoltage, short-circuit, and temperature protection.
Communication: RS485, CAN, and RS232 communication options.
Compact and Powerful: 6123Wh at 51.2V, delivers 9000W, easy integration.
Advanced Charging: CC/CV/CP, 80A max charge, 57.4V cut-off.
Efficient Discharging: CC/CP, 200A max discharge, 44.8V cut-off.
Eco-Friendly: Wide temperature range (0-50°C), humidity tolerance (5-95%).
Long-Lasting: 6000+ cycles, 10-year warranty, 60A charging recommended.
Protection
Overvoltage protection
Undervoltage protection
Short-circuit protection
Low-temperature charge protection
High-temperature charge protection
Low-temperature discharge protection
High-temperature discharge protection
Charge over-current protection
Discharge over-current protection
Dormancy function
Communication Capabilities
RS485, CAN, and RS232 communication protocols
Dimensions: 536mm x 438mm x 220.6mm
Weight: 57kg
Specifications
Lifespan: Over 6000 cycles
Recommended Charging and Discharging: 60A (0.5C @ 25 degrees Celsius)
High-Performance Discharge: Discharge Current: 200A (1.5C continuous)
Humidity Tolerance: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature Range: 0~50 degrees Celsius
Electrical Parameters
Rated Voltage: 51.2V, 119.6Ah
Nominal Capacity: 6123Wh
Rated Power: 9000W
Electrical Parameters
Charge Modes: CC/CV/CP
Max Charge Current: 80A
Charging Cut-Off Voltage: 57.4V
Discharge Modes: CC/CP
Discharging Cut-Off Voltage: 44.8V
Max Discharge Current: 200A (1.5C continuous)
Peak Discharge Current: 350A (100ms)
Advanced Charging and Discharging Modes
Charge Modes: CC/CV/CP
Max Charge Current: 80A
Charging Cut-Off Voltage: 57.4V
Discharge Modes: CC/CP
Discharging Cut-Off Voltage: 44.8V
Max Discharge Current: 200A (1.5C continuous)
Peak Discharge Current: 350A (100ms)
Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: Charge 0~50 degrees Celsius
