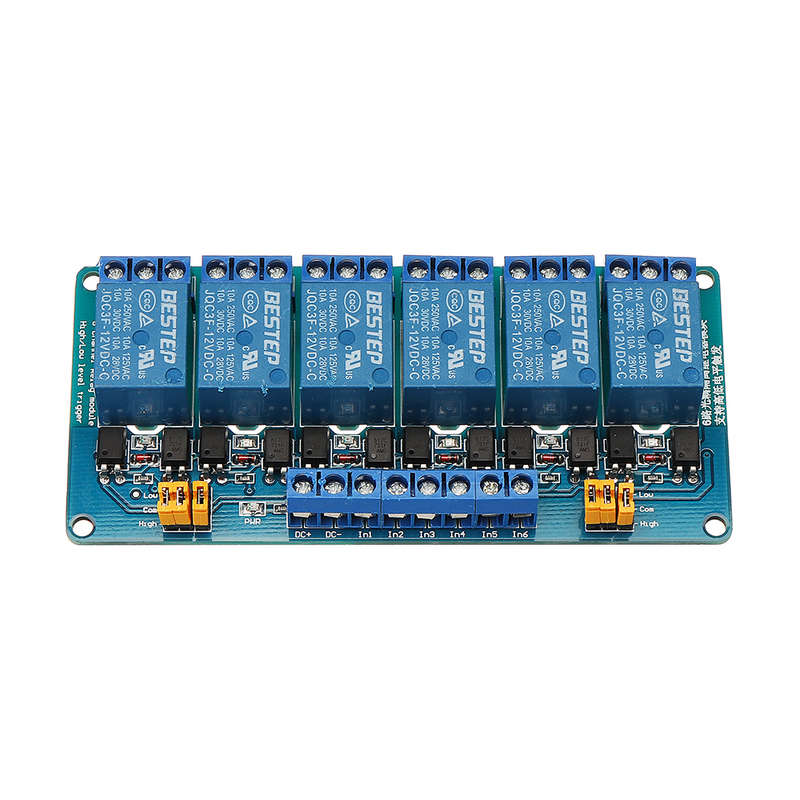

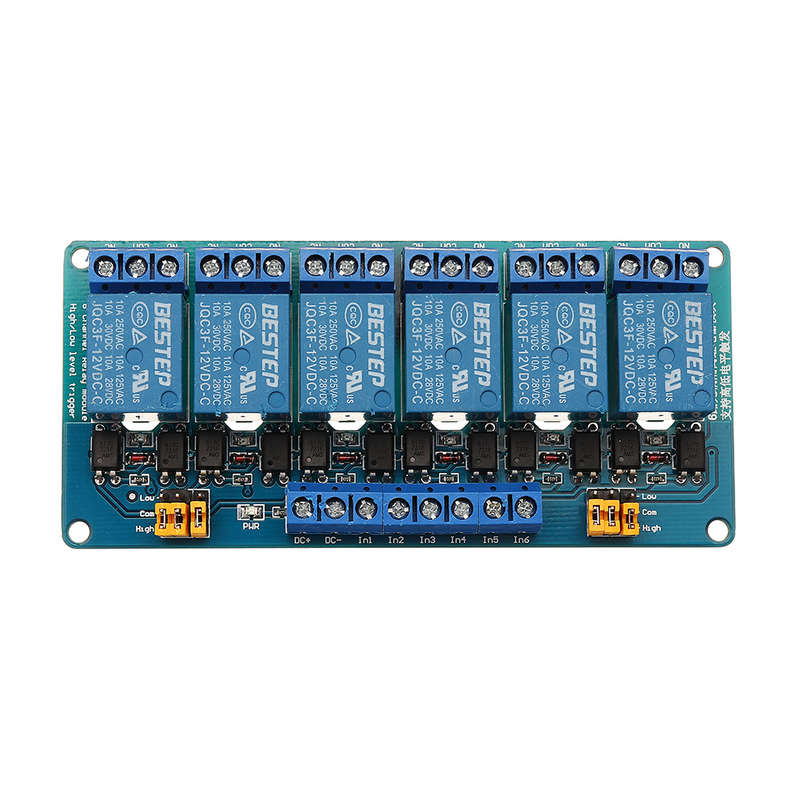

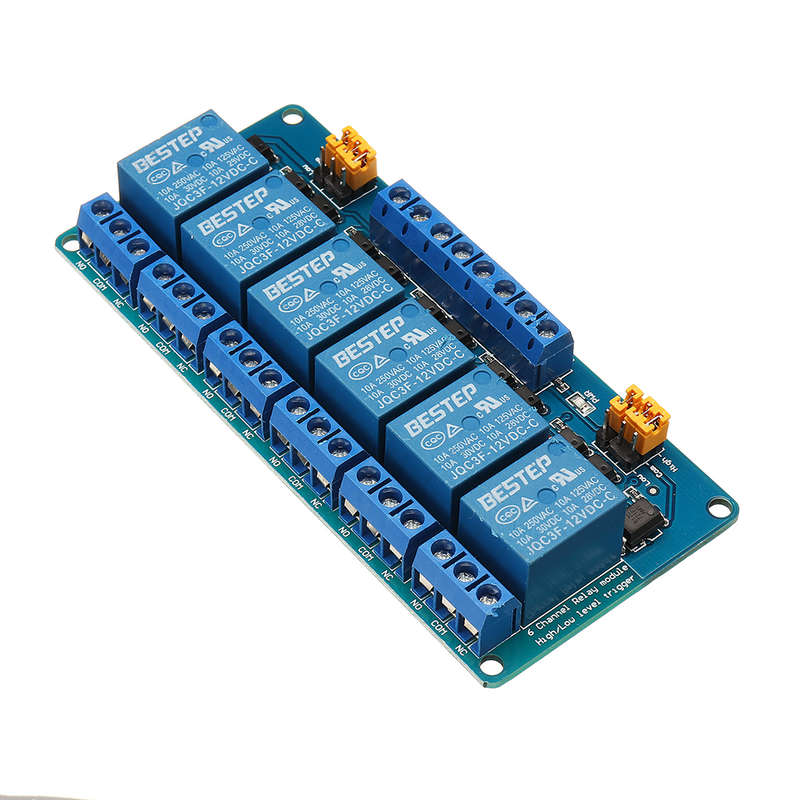

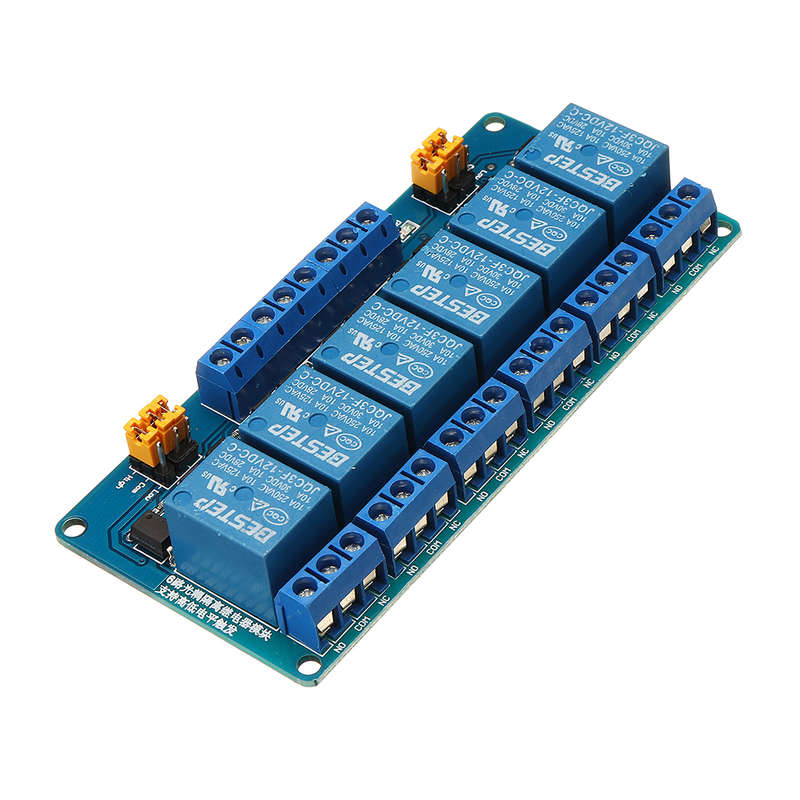

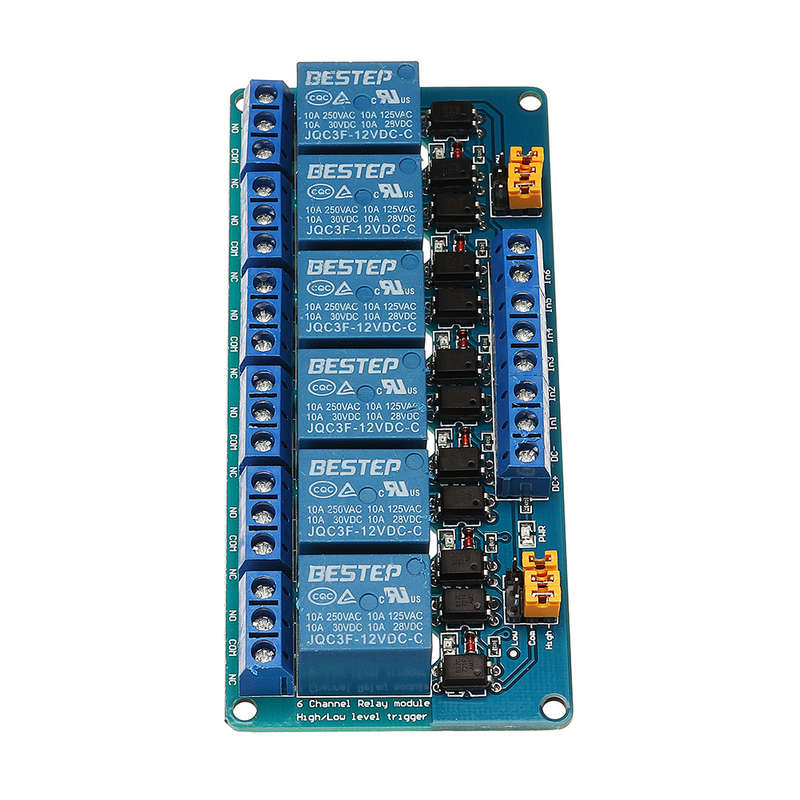

6 Channel 12V Relay Module High And Low Level Trigger BESTEP for Arduino - products that work with o

20 available / new

R371.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641113626

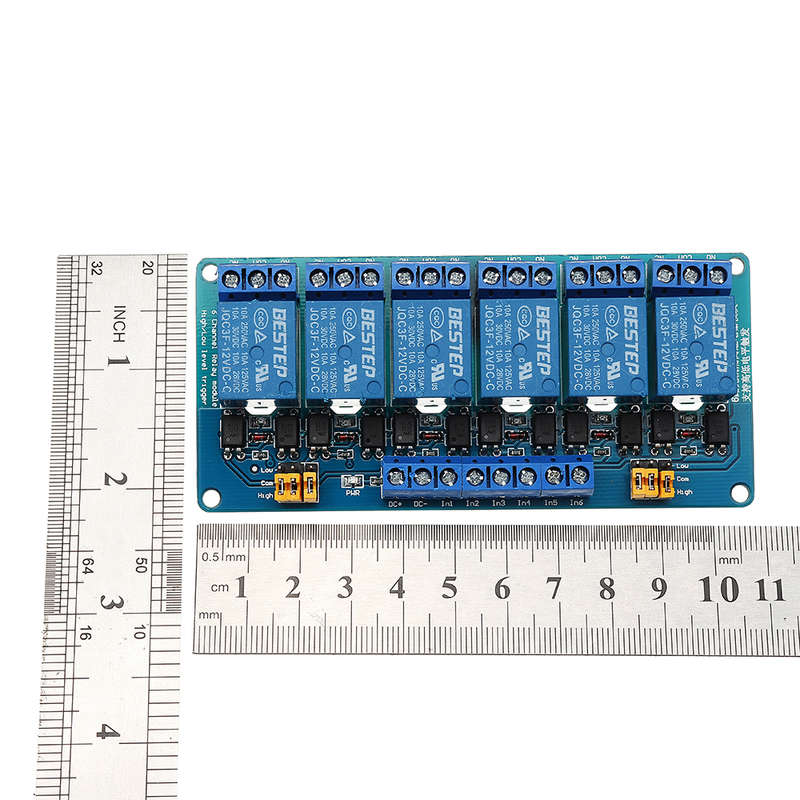

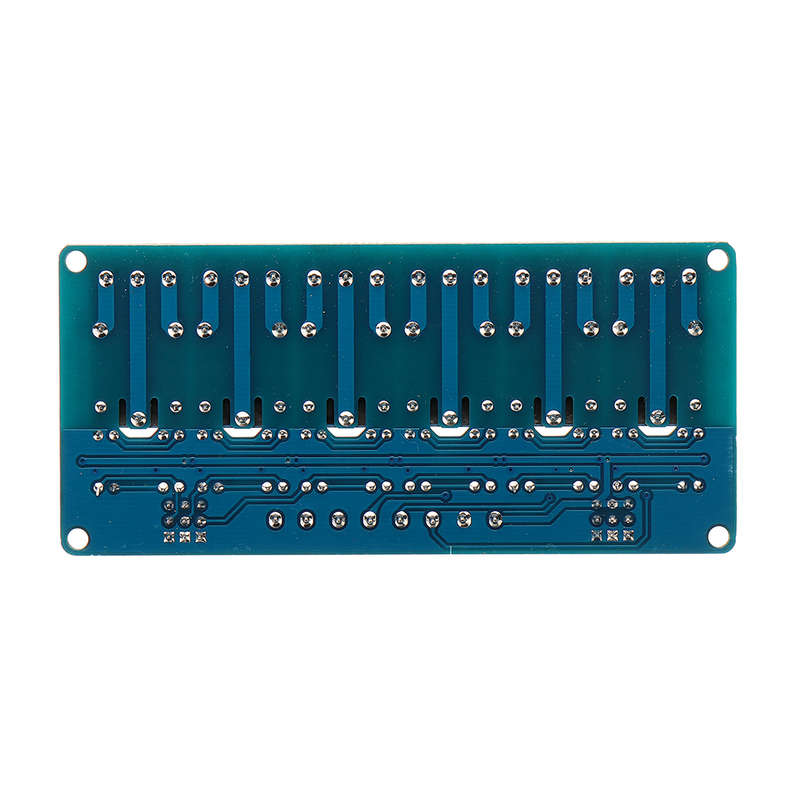

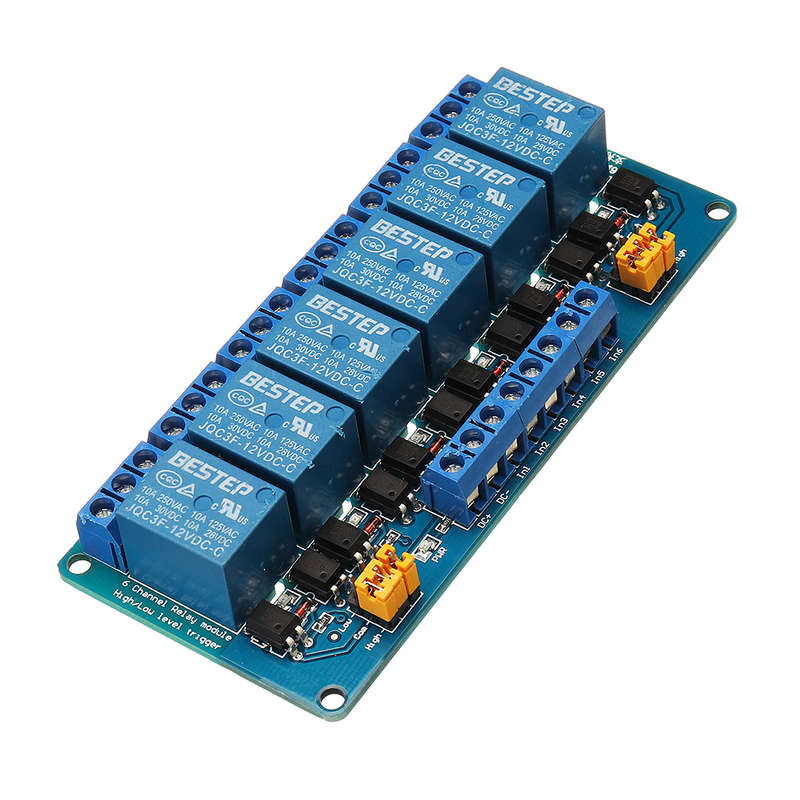

Description: Maximum load: AC 250V/10A, DC 30V/10A. The chip optocoupler isolation, strong driving ability, stable performance, trigger current 5mA. Working voltage is 12V. Each channel of the module can be set up by high jumper or low level trigger. Fault tolerant design, even if the control line is broken, the relay will not act. Power indicator (green), 6 relay status indicator (red). The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient. Module size: 108mm x 50mm x 18.6mm (length x width x height). There are 4 fixed bolt holes, holes 3.1mm, spacing 67mm x 44.5mm.

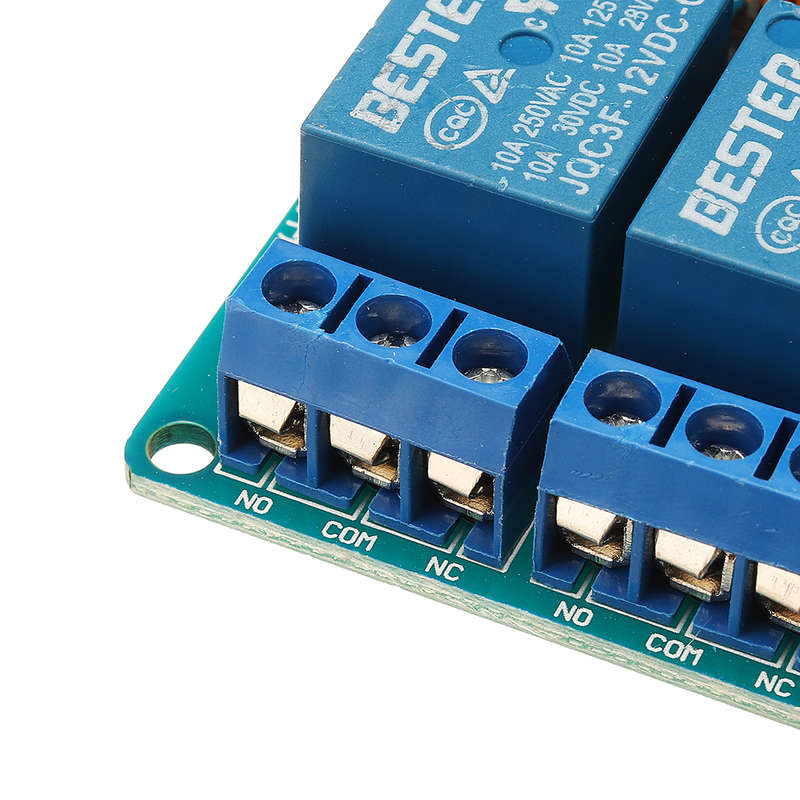

Module interface: 1. DC+: Connect the power positive pole 2. DC-: Connect the power negative pole. 3. IN1-IN6:According to the setting of each way, the correspondingrelay-operatingcan be controlled by high or low level. Relay output: there is a 18 wire interface, all interfaces can be directly connected to lead to facilitate user use. 1. NO1--NO6: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM. 2. COM1--COM6: Relay common interface 3. NC1--NC6: Relay normal close,short connected with COM beforepulling inand suspended afterpulling in. High and low level trigger option:

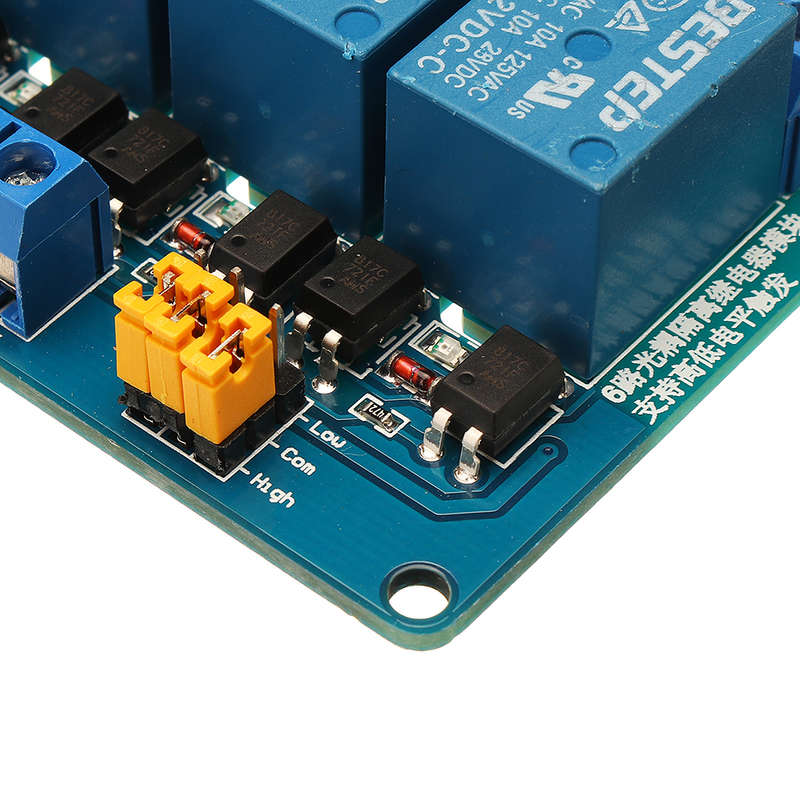

1. S1-S6 is the high level trigger selection of relay 1 Channel - 6 Channel. 2.When COM is short connected with LOW, the corresponding relay is LOW level trigger, while when COM is short connected with high end is high level trigger. Package Included:

1 x6Channel12V Relay Module
