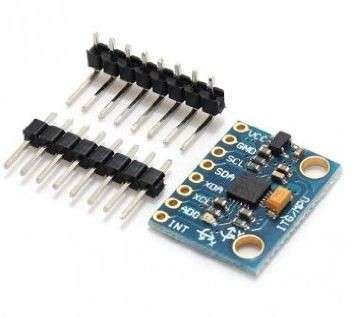

6 DOF Module Triple Axis Acceleration & Gyroscope
New
R134.26
Closed
10 Oct 23 21:38
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Century City, Cape Town
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Tuesday, 21 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 1 business day. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Product details
Condition
New
Location
South Africa
Product code
SEN-00138
Bob Shop ID
589856389

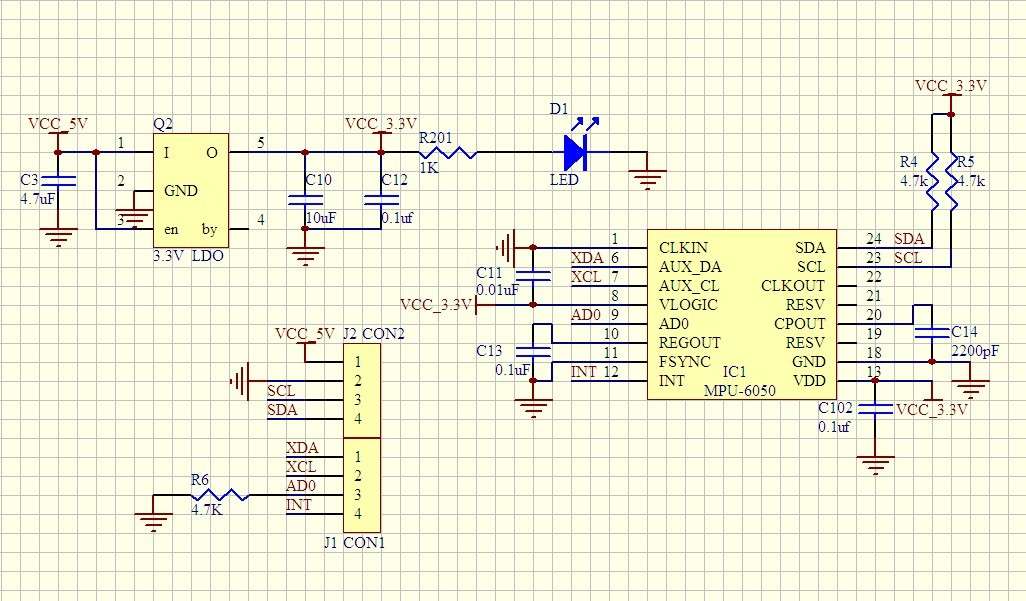

- Uses chip: MPU-6050
- Power supply :3-5v (internal low dropout regulator)
- Communication modes: standard IIC communication protocol
- Chip built-in 16-bit AD Converter, And16-bit data output
- Gyroscope range: 250 500 1000 2000 / s
- Acceleration range: 2 4 8 16g
- Immersion Gold PCB, machine welding process to ensure quality
- Pin pitch 2.54mm
About MPU-6000:
MPU-6000 is the world's first integrated 6-axis motion processing components, compared to the multi-component program, it eliminats the problem of poor combination of the gyroscope and accelerometer axis, reduces the amount of packaging space. MPU-6000 integrated 3-axis gyroscope, three-axis accelerometer, and containing by second I2C port to connect to other brands of accelerators, magnetic sensors, or other sensors of digital motion processing (DMP: Digital Motion Processor) hardware acceleration engine I2C port in the form of a single data stream, output to the application side complete 9-axis fusion algorithm technology
InvenSense's motion processing database can handle the complexity of the motion sensing data, reduced motion processing operations load the operating system, and application development architecture of the API.
The angular velocity of the MPU-6000 grid sensing range is 250, 500, 1000 and 2000 / sec (dps), can be accurately chase Zong fast and slow action, and the user can program-controlled accelerator grid sense The measurement range of 2g, 4g 8g and 16g. Product transmission by up to 400kHz I2C or up to 20MHz SPI.
MPU-6000 can operate at different voltages VDD supply voltage referral 2.5V 5%, 3.0V 5% or 3.3V 5%, logical interface VVDIO supply of 1.8V 5%. MPU-6000 package 4x4x0.9mm (QFN), is revolutionary in the industry . Other features include built-in temperature sensor, oscillator contains only 1% in the operating environment changes.
- Motion sensing games
- Augmented Reality
- Electronic Image Stabilization (EIS: Electronic Image Stabilization)
- Optical Image Stabilization (OIS: Optical Image Stabilization)
- Pedestrian navigation
- "Zero-touch" gesture user interface
- Posture shortcuts
- Authenticate
- Digital output shaft 6 or 9-axis rotation matrix, quaternion (Quaternion) fusion calculus data the Euler angles formats (Euler Angle Forma).
- 131 LSBs / / sec sensitivity grid sensing range of 250, 500, 1000 and 2000 / sec of 3-axis angular rate sensor (gyroscope).
- Programmable control and program control range is 2G, 4g, 8g and 16g 3-axis accelerometer.
- Remove the accelerator and gyroscope axis sensitivity, reduce the setting for the impact sensor drift.
- Digital motion processing (DMP: Digital Motion Processing) engine to reduce the complexity of the fusion calculus data, sensor synchronization, posture induction load.
- Motion processing database support for Android, Linux and Windows
- Built-in operating time deviation with a magnetic sensor calibration algorithm technology, eliminating the customer an additional correction needs.
- Digital output temperature sensor
- Digital synchronization input pin (Sync pin) support the Video Electronics shadow stabilization technology with GPS
- The programmable control interrupt (interrupt) supports gesture recognition, panning, screen zoom, scroll, rapid decline interrupt, high-G interrupt, zero motion sensor, touch sensor, shake the induction.
- VDD supply voltage of 2.5V 5%, 3.0V 5%, 3.3V 5%; VDDIO 1.8V 5%
- Gyroscope operation current: 5mA the gyroscope standby current: 5A; accelerator operation current: 350A the accelerator power saving mode current: 20A @ 10Hz
- Up to 400kHz Fast Mode I2C, or up to 20MHz SPI serial host interface (serial host interface) Displays
- Built-in frequency generator frequency change of only 1% in all temperature range (full Temperature Range).
- User personally tested
- 10,000 g collision tolerance
- For portable products tailored for the smallest and thinnest package (4x4x0.9mm QFN)
- RoHS Compliant and environmental standards
