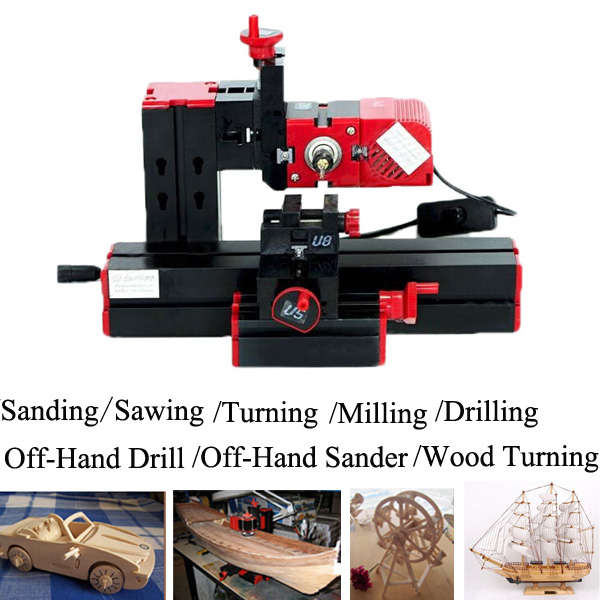

Video ShowIntroduction: 6 in 1 multi metal mini wood lathe Machine -enjoy the joy of creation with "Transformer"
6 in 1 multi metal mini wood lathe not only has single unit, such as Jig-saw, grinder, Driller,wood lathe, metal lathe, Miller, but also has the 6 in 1 combined set. Base is made of advanced aluminum alloy, and it's durable and not deformed. This is really a good tool.

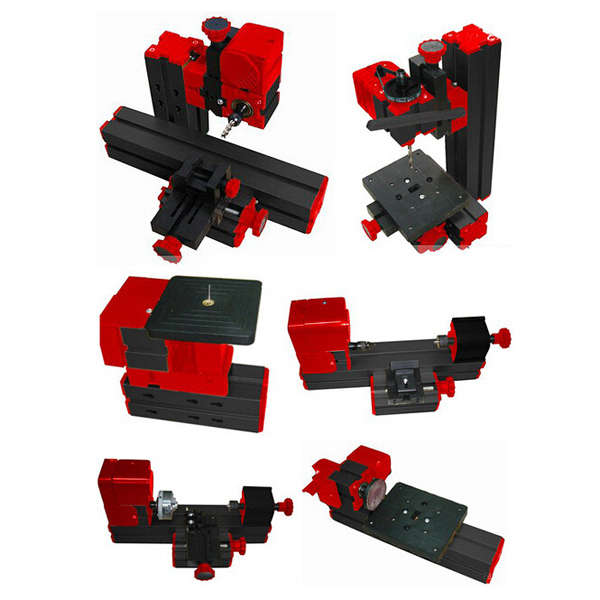

6 in 1 multi metal mini wood lathe can make up of : 1) Jig-saw 2) Grinder 3) Driller 4) Metal lathe 5)Wood lathe 6)Milling
Specification:Material | Carbon steel, Aluminum, ABS |
Headstock speed | 2,000rpm |
Motor input | DC 12V |
Max. Cutting diameter | 45mm(bigger diameter is possible with intermediatepiece) |
Center distance | 135mm(with accessories extra long machine bed can longer to 360mm) |
Color | Black + Red |
Recommended types of wood | Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard). |
Scope | 1, Can process integrated circuit, acrylics, wood, plastic, gold, silver, copper, steel, aluminum, and so on. 2, Every suitable chisel and gouge can be used |
Panel sawsTechnique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Support power: 14.5VDC/2A/29W, Switching Adapter input 100V-240V
4) Table size: 90 x 90mm
5) Stroke of the jigsaw: 4mm
6) Material: Carbon steel, Aluminum, ABS
7) Max. thickness of cut: hardwood: 4mm, plywood: 7mm, softwood: 18mm, sheet metal: 0.5mm, plexi-glass: 2mm
8) Maximum measurements on 3D (L/W/H cm): 15/10/14
9) Net weight: 0.72kg
10)It is specially designed that it is very safe when operating.
GRINDER
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC/2000mA
4) Material: Carbon steel, Aluminum, ABS
5) Can sanding paper: diameter 49mm, grain 100
6) Can process everything that is used in model making
7) Maximum measurements on 3D(cm L/W/H):28/5/10
8) Net weight: 0.75kg
DRILLERTechnique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 50 and 20 respectively
5) Stroke: 25mm
6) 8 collects from: 0.5 to 6 mm
7) Table size: 123 x 100mm
8) Working radius (distance between drill and machine bed): 71mm
9) Material: Carbon steel, Aluminum, ABS
10) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
11) Maximum measurements on 3D(cm L/W/H): 15/15/28
12) Net weight: 1.46kg
MillerTechnique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 30 and 50mm
5) Collets from 0.5-6mm milling cutter
6) Vice capacity: 25 x 25mm
7) Material: Carbon steel, Aluminum, ABS
8) Can process hard wood strips (beech-tree, nut-tree), wooden bars (max. 20mm diameter)or plastic and soft metal.
9) Do not touch the turning tools, it is very dangerous
10) Maximum measurements on 3D(cm L/W/H): 28/18/15
11) Net weight: 1.45kg
Wood LatheTechnique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Max. Cutting diameter: 45mm (bigger diameter is possible with intermediatepiece)
5) Center distance: 135mm (with accessories extra long machine bed can longer to 360mm )
6) Material: Carbon steel, Aluminum, ABS
7) All types of wood (also hard wood) can be processed
8) Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard)
9) Every suitable chisel and gouge can be used
10) Maximum measurements on 3D(cm L/W/H): 28/10/10
11) Net weight: 1.28kg
Metal latheTechnique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Tree 3-jaw chuck
