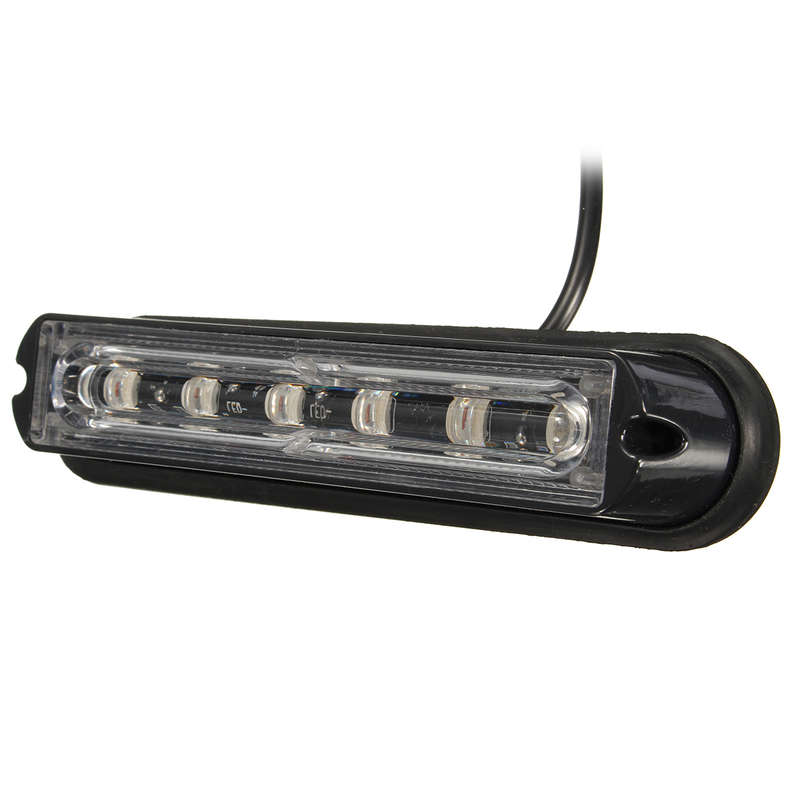

6 LED Car Trailer Boat Emergency Light Bar Hazard Flashing Strobe Warning Lamp

Package weight: 0.23 kg
6 LED Car Trailer Boat Emergency Light Bar Hazard Flashing Strobe Warning Lamp
Feature:
1 .Self-contained light head, no need to connect external flasher.
2. Super bright flashing light.
3. 18 kinds of strobe flash modes.
4. Durable,waterproof,shockproof.
5. Good heat dissipation, built-in heat sink.
Specification:

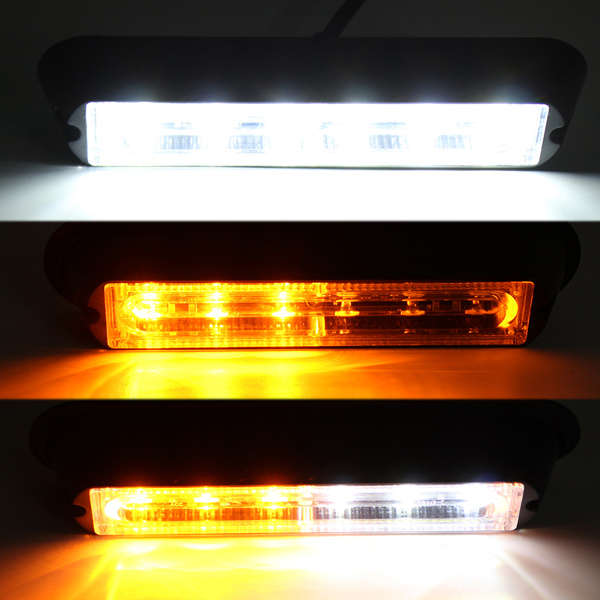

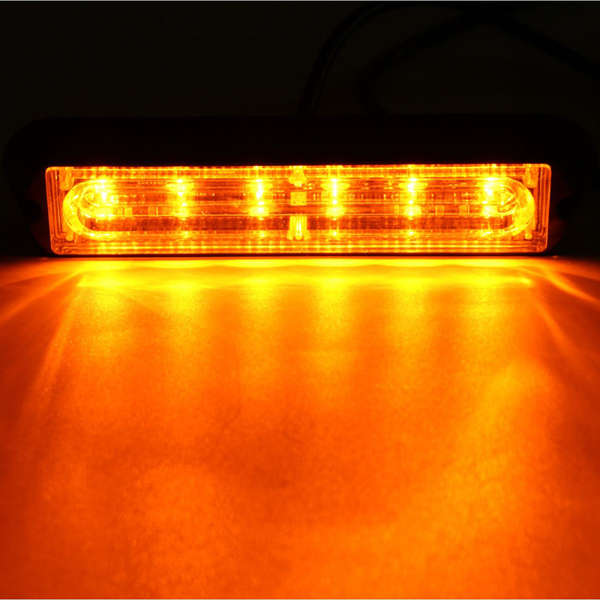

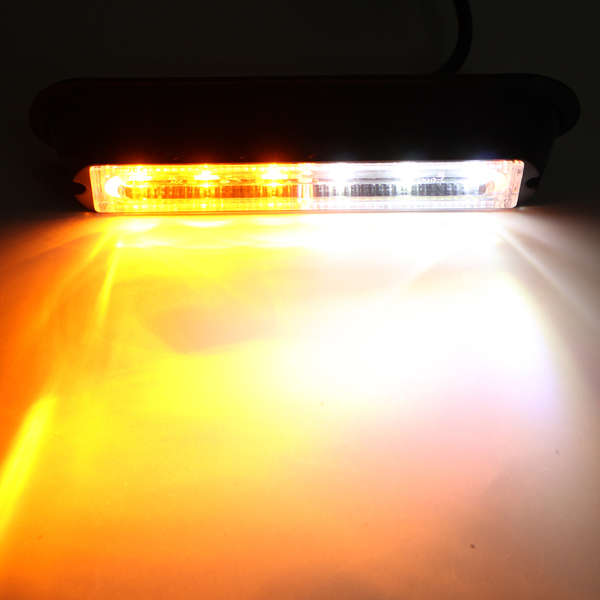

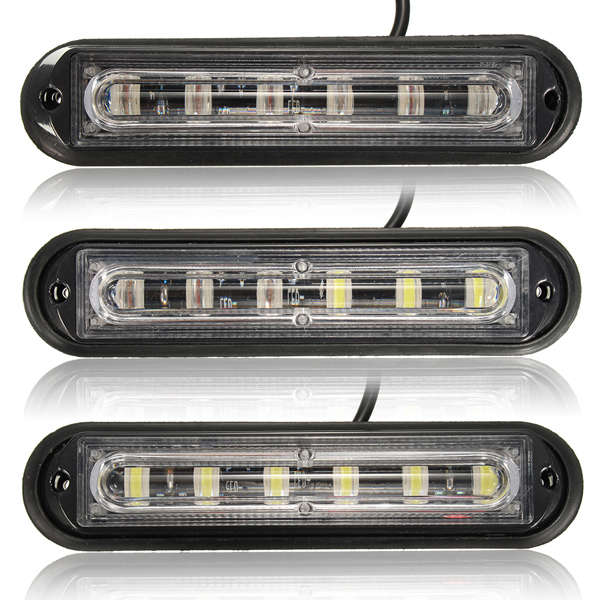

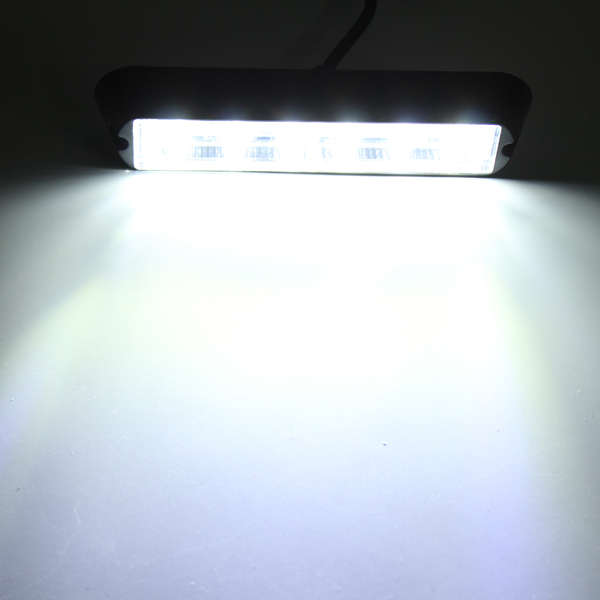

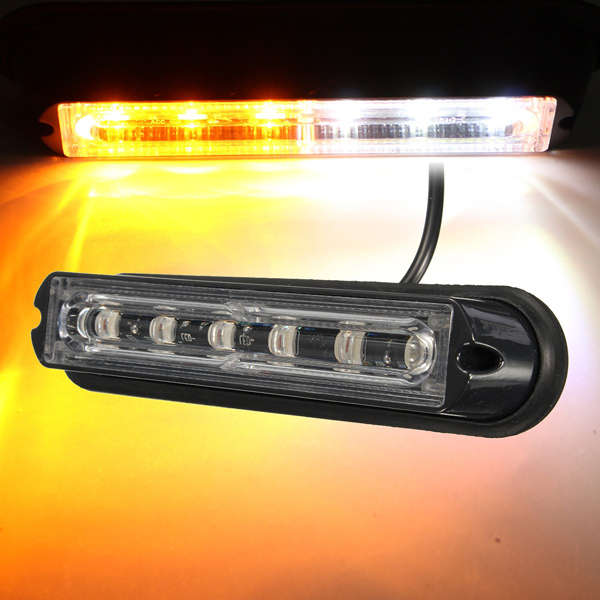

Light color: yellow+white,white,yellow
Lighting Type:strobe
Number of LED in panel: 6
Voltage: 12V-24V
Power: 6W
Working Temperature:-40? to 40?
Color Temperature:6000-7000K

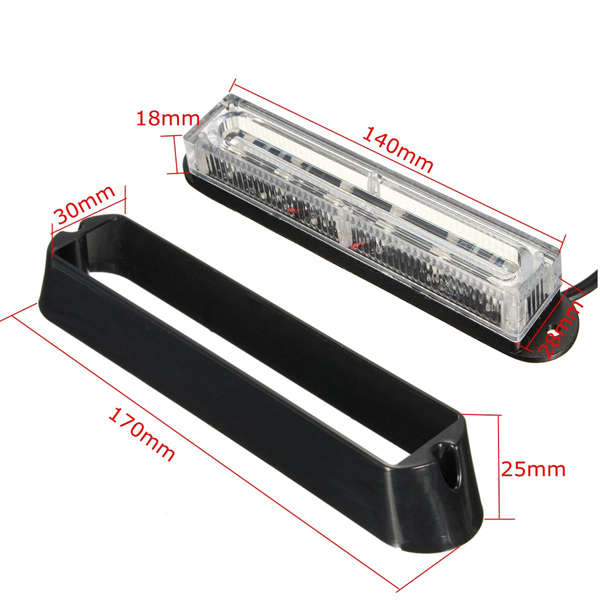

Cable Length: about 73cm / 28.7 inch
Waterproof level: IP62

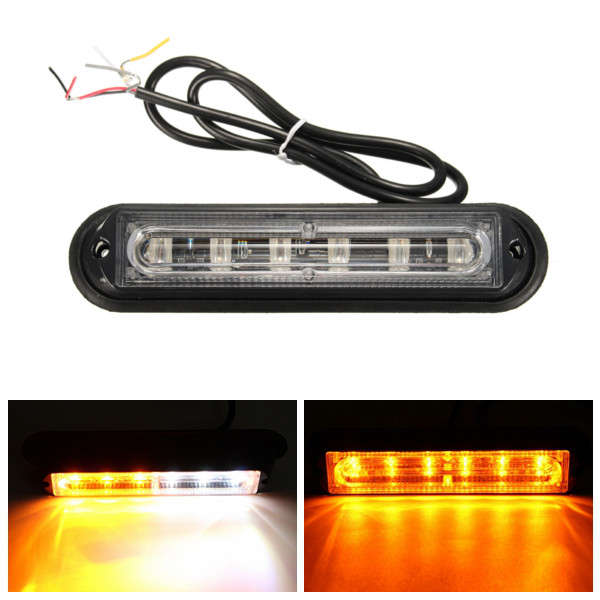

Wires Introduction:
1. Red Wire: To +VDC (fuse@3A)
2. Black Wire: To Chassis Ground
3. Yellow Wire: Synchronization / PatternSelector
(Connect yellow wire of all heads together for synchronization momentarily apply yellow wire to red for one second to change pattern.)
4.  White and Gray: Alternating Pattern
(to male light heads alternate connect the gray wire of the even number of heads to the white wire of the odd number of heads.)
Flash Pattern:

1. Random	11. Double-All
2. Single-Split	12. Quad-All
4. Double-Split	13. Accelerator-All
5. Quad-Split	14. Quad/Single-All
6. Accelerator-Split	15. Plus/Single-All
7. Quad Burst-Split	16. Half Steady-1
8. Double/Accelerator-Split	17. Half Steady-2
9. Quad/Accelerator-Split	18. OFF
10. Single-All

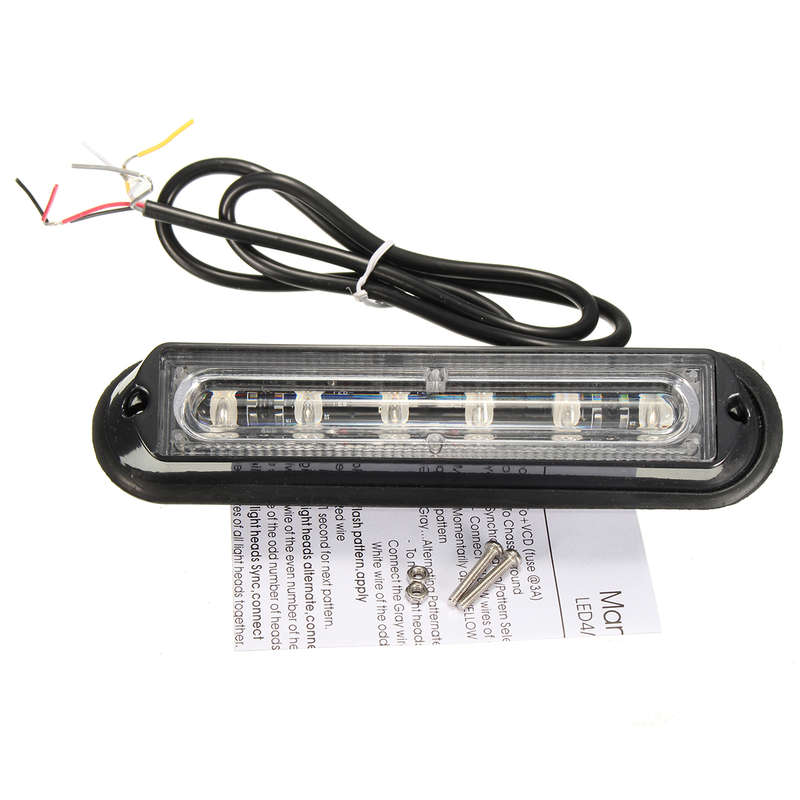

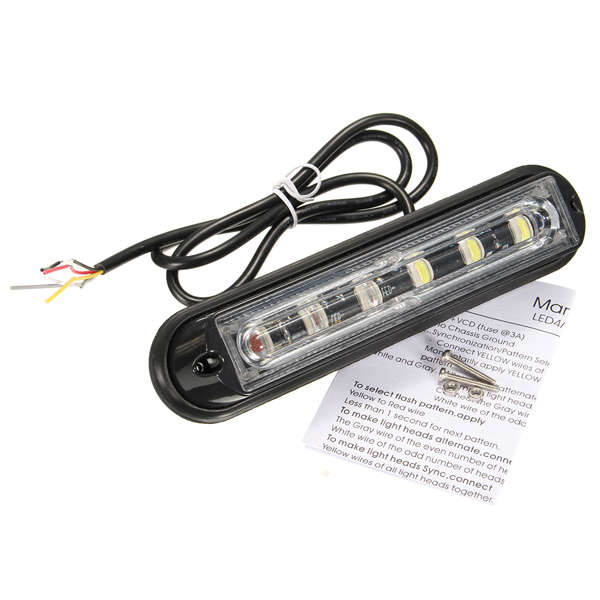

Package Included
1 X 6 LED Car Emergency Light
2 X Screws
1 X Manual
