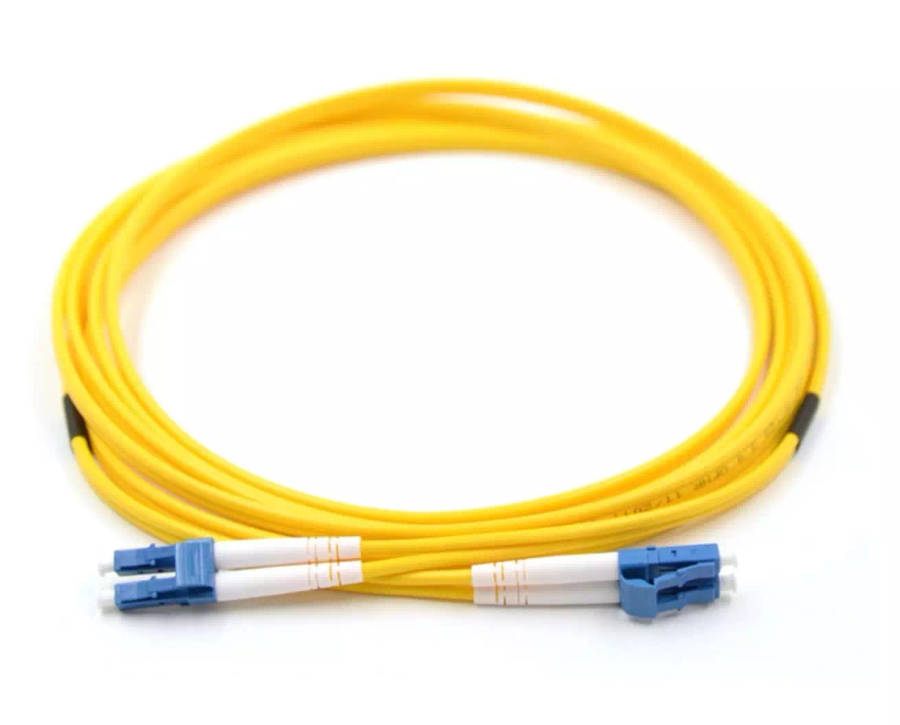

6 Meter Duplex Single Mode Fiber UPC LC-LC Optical Cable | Fiber Patch Cord

6 Meter Duplex Single Mode Fiber UPC LC-LC Optical Cable | Fiber Patch Cord

Single mode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron, and with the buffer layer they are 250 micron. To prevent excessive loss (attenuation), you should ensure that you only connect single mode cables to other single mode fibers already in your system.

Specifications:

• Indoor Cabling Bow-Type Drop Cable
• Diameter  : 3mm
• 2*0.45mm steel strength member
• Duplex (Dual Fiber Cables and DUAL LC Connectors on each side of cable)
• LC/UPC LC/UPC
• G.657A2, 2.0x3.0mmmm
• LSZH (Low Smoke, Zero Halogen)
• UV resistant

Tensile Strength

Always take care when installing fiber cables to ensure not to break the fiber inside the cable by over-bending or twisting cables. These cables strengthened by the 2*0.45mm steel wires provide more than enough pulling strength to easily install these cables in difficult environments without breaking the cable.

G.657A2 Bend Ratio vs Other Specifications

These Fiber Cables Are Commonly used with the Fiber SFP's below

/20km-single-mode-dual-lc-1-25gbit-1310nm-gigabit-sfp-transceiver-module-cisco-huawei-dell-compatible/

/10gbps-fiber-sfp-module-single-mode-dual-lc-transceiver-module-10km-cisco-huawei-or-generic-switch-compatible/

Single Mode Fiber Cable Usage and Instructional Video

?v=7D5DXND3-TI
