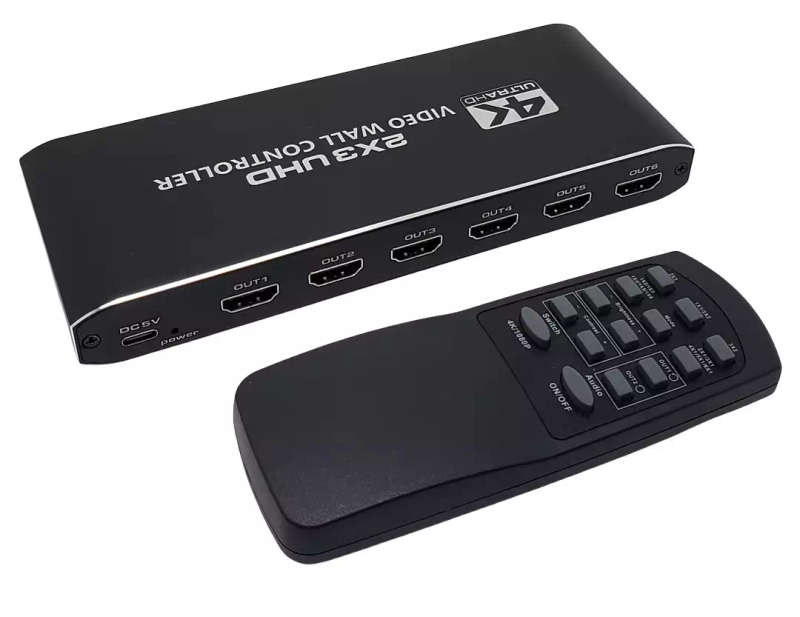

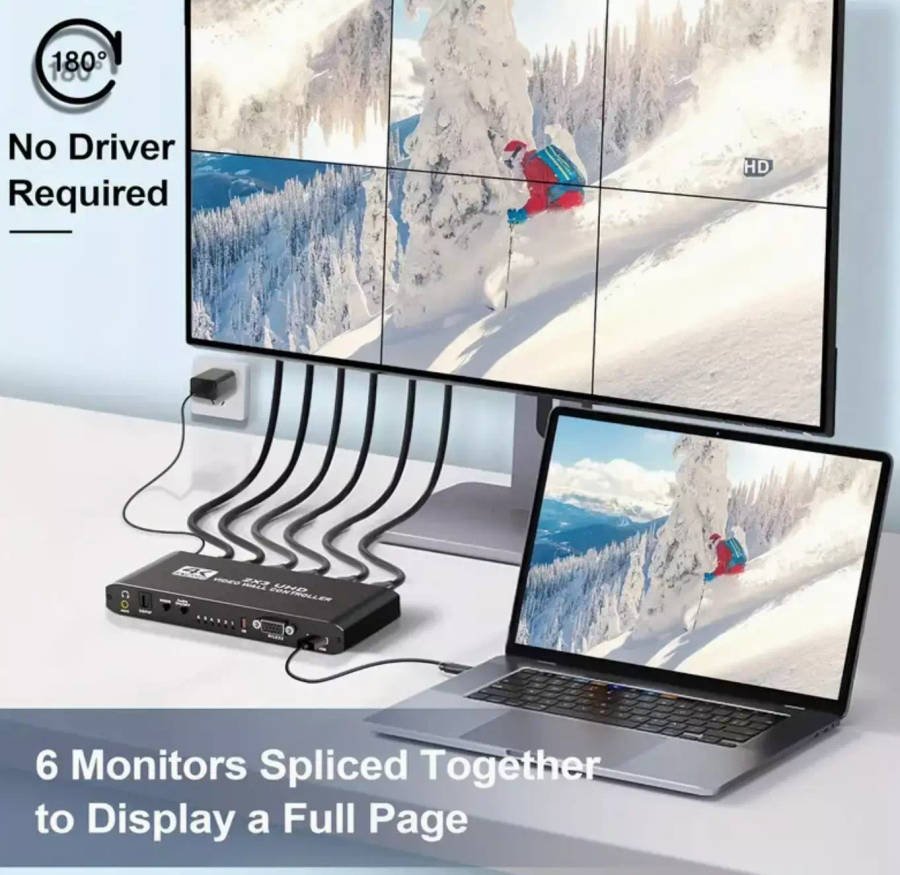

This 6 Port Splicing Processor, supports 1 HDMI or DVI input and 6 HDMI outputs which are spread across multiple screens, it is used to divide a complete HD image signal into various blocks and assign it to different video display units (such as projectors, hdtv's, PC Monitors etc.) and splice one image across multiple displays.

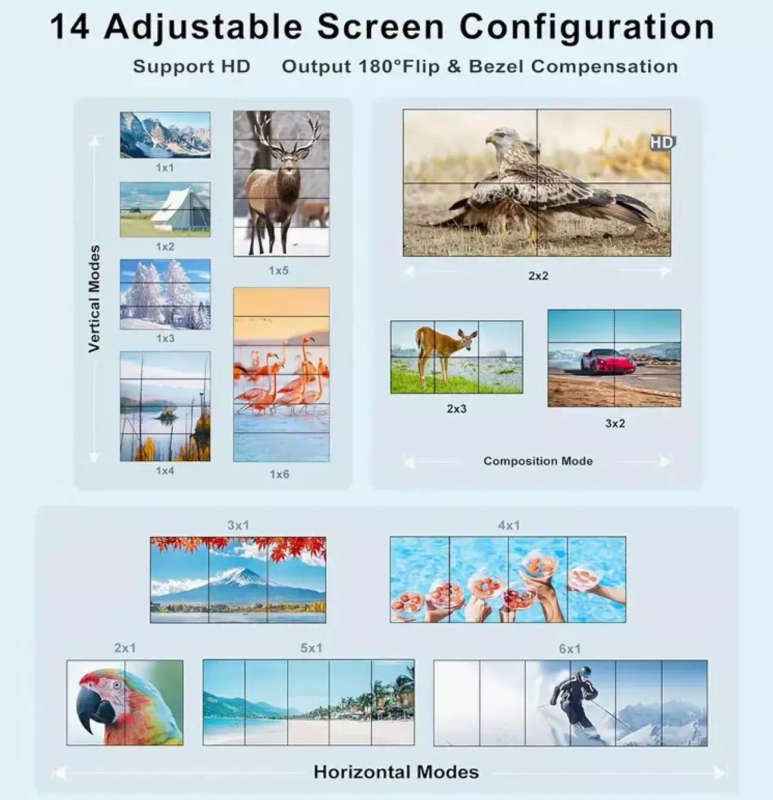

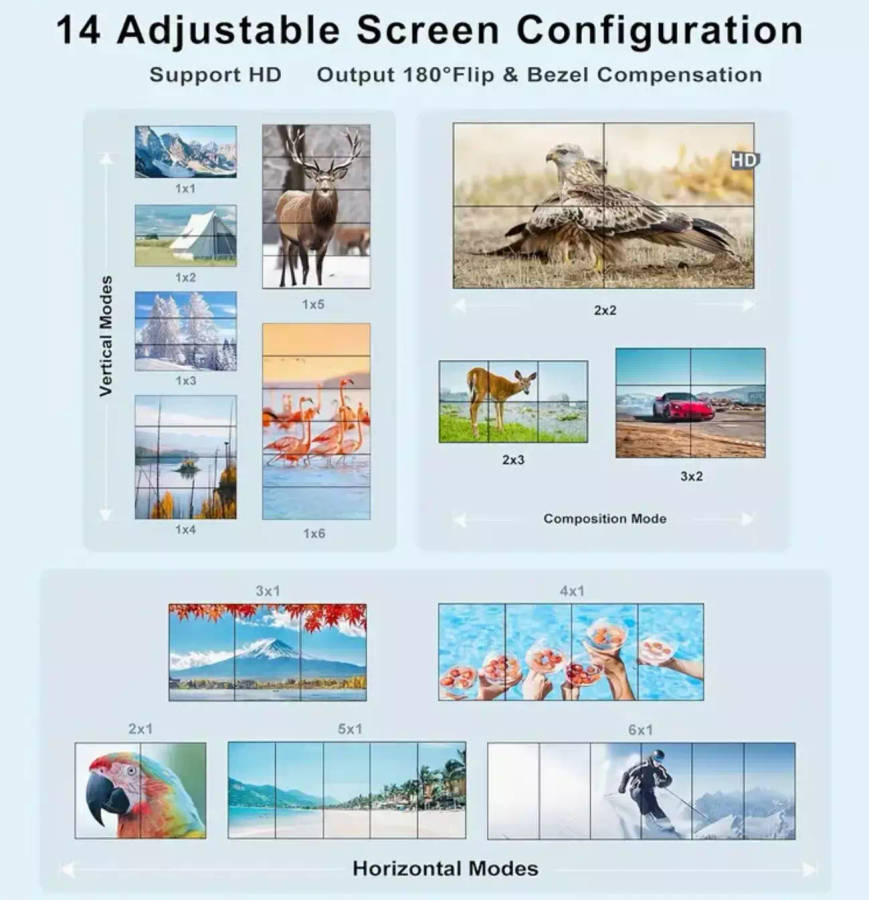

This video wall controller supports 14 modes of 1x1, 1x2, 1x3, 1x4, 1x5,1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1,5x1, 6x1,can be quickly controlled directly through the button or remote control.
The Total resolution of this unit is 4K 3840 x 2160 over 4 displays 1080p@60hz = 1920 x 1080 x 4 outputs = 3840 x 2160 total Output display Resolution spread across 4 displays. If Spread across 6 displays total resolution will be 5760 x 2 160.

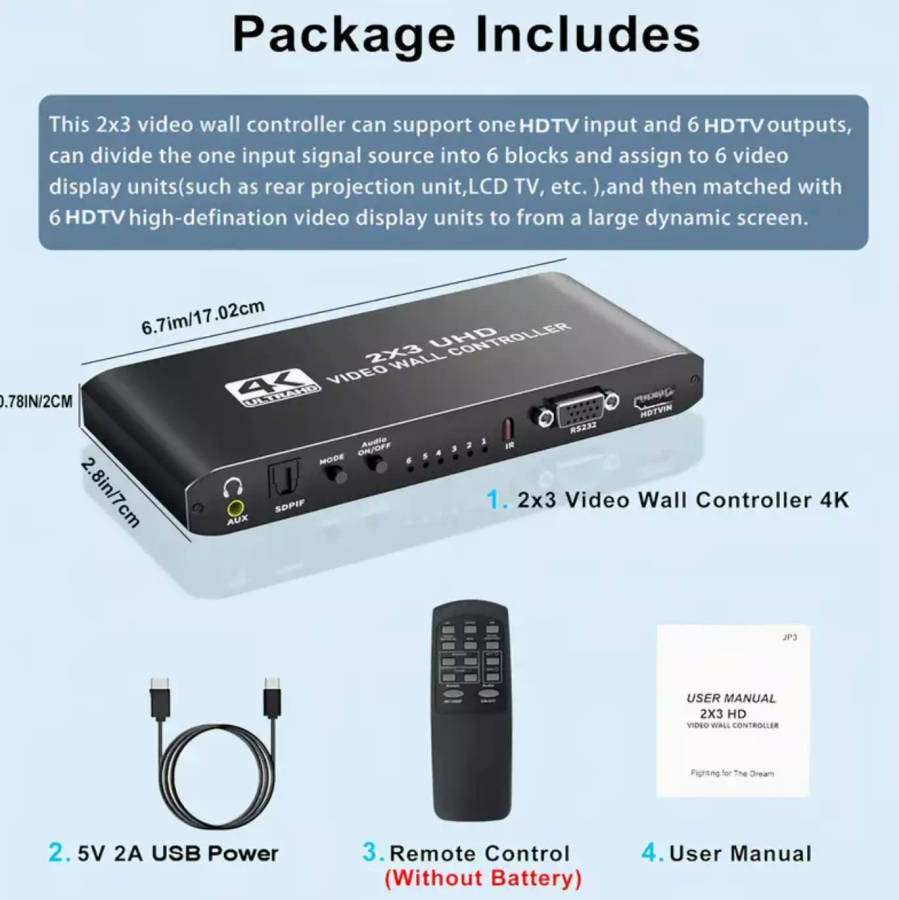

Please note this product is supplied with a USB Power cable (Either Micro USB or USB C Depending on what the device requires) and does NOT INCLUDE A 220v to USB Wall Socket Power adapter. The unit must be powered from a nearby USB Port on a HDTV/Projector/Digital Receiver or alternatively a 220v Wall Adapter to 5v USB Charger/Power supply similar to Slimline 5 Volt 2 Amp USB Wall Charger/Power Supply
It also has an individual 3.5mm stereo audio and an optical SPDIF port with HDMI Audio Extraction which can be connected to an external speaker, amplifier, sound bar, etc.
