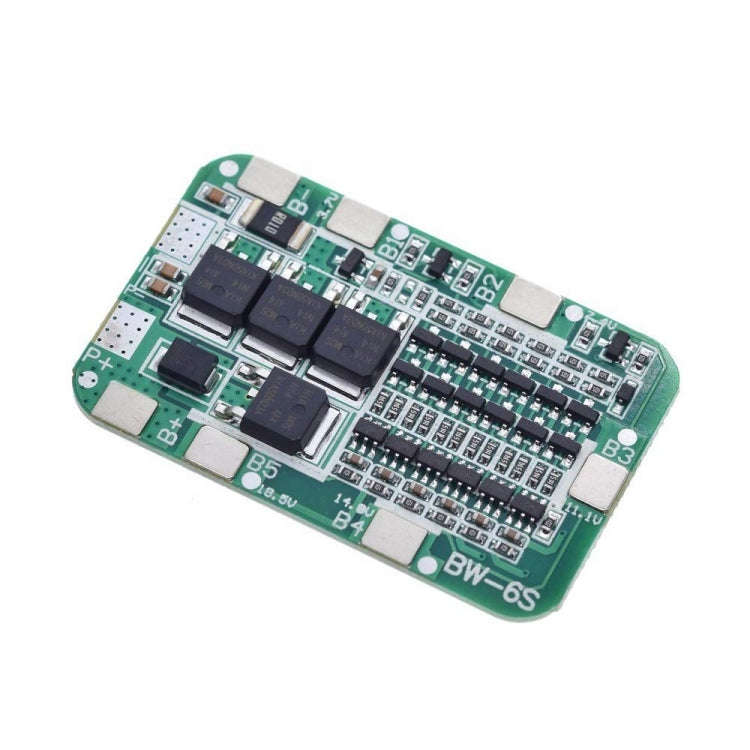

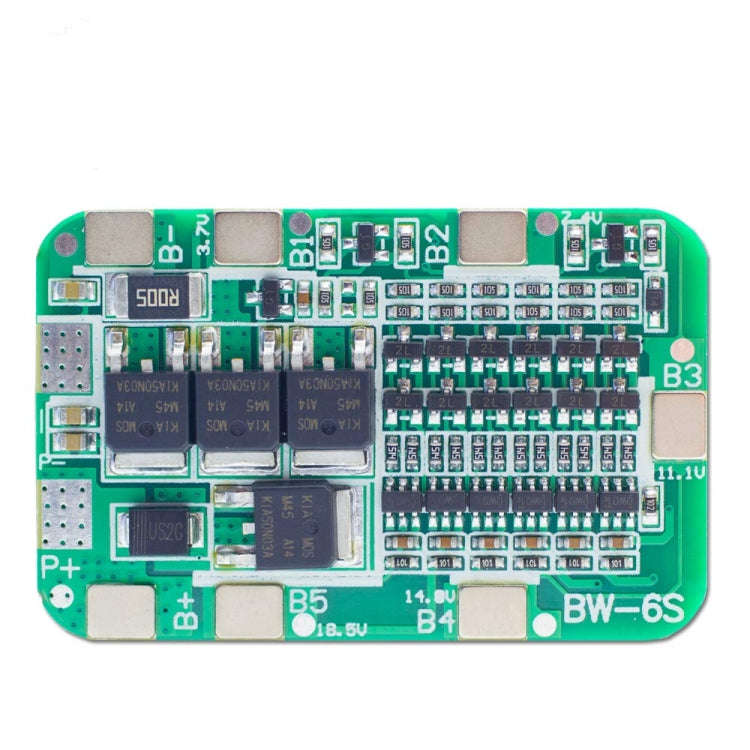

6 String 22/24V 18650 Lithium Battery Protection Board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD06042890
Bob Shop ID
602471534
1. Integrated circuit boards for rechargeable (generally lithium batteries) protection
2. Discharge: large discharge current: 15A; instantaneous discharge current: 25A
3. Charging: voltage: 25.5V; current: 15A
4. Overcharge protection: detection voltage: about 4.28V; delay time: 0.1S; release voltage: about 4.08V
5. Over-discharge protection: detection voltage: 2.55V; detection delay: 0.1S; release voltage: about 2.9V
6. Over-current protection: detection voltage: 150mV; detection delay: 9MS; current: about 30A; release condition: disconnect the load
7. Short-circuit protection: protection condition: external load short-circuit; detection delay: 250uS; release condition: disconnect the negative open
8. Internal resistance: the internal resistance of the main circuit is less than or equal to 20 mOhm
9. Self-consumption: working current: less than or equal to 30uA; sleep current (when the battery is over-discharged): less than or equal to 10uA
10. Operating temperature range: -30/+80 degrees Celsius

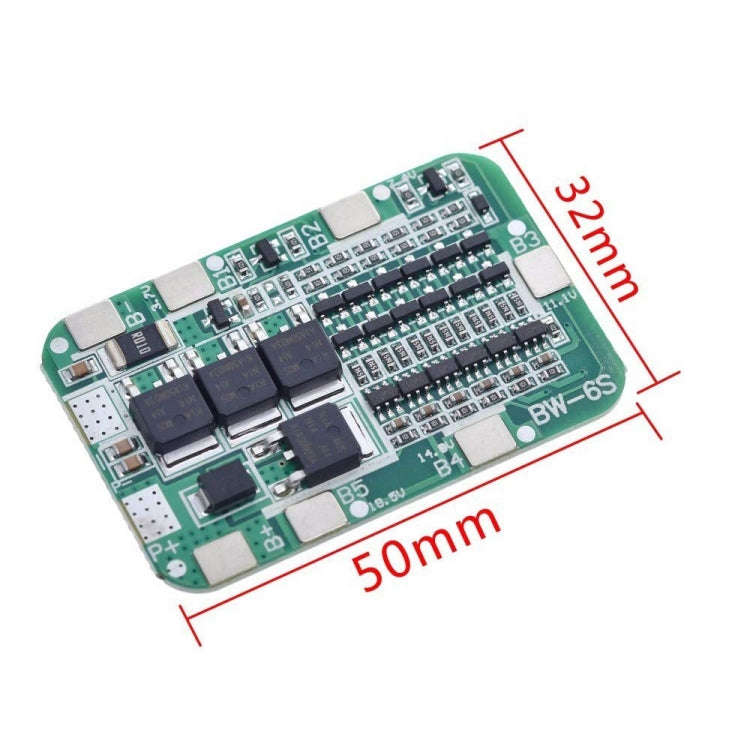

11. Size: about 50 x 32 x 3mm
12. Weight: about 8g
