SELECTED OPTION:
TYPE: 9005/HB3
for more options in this item.

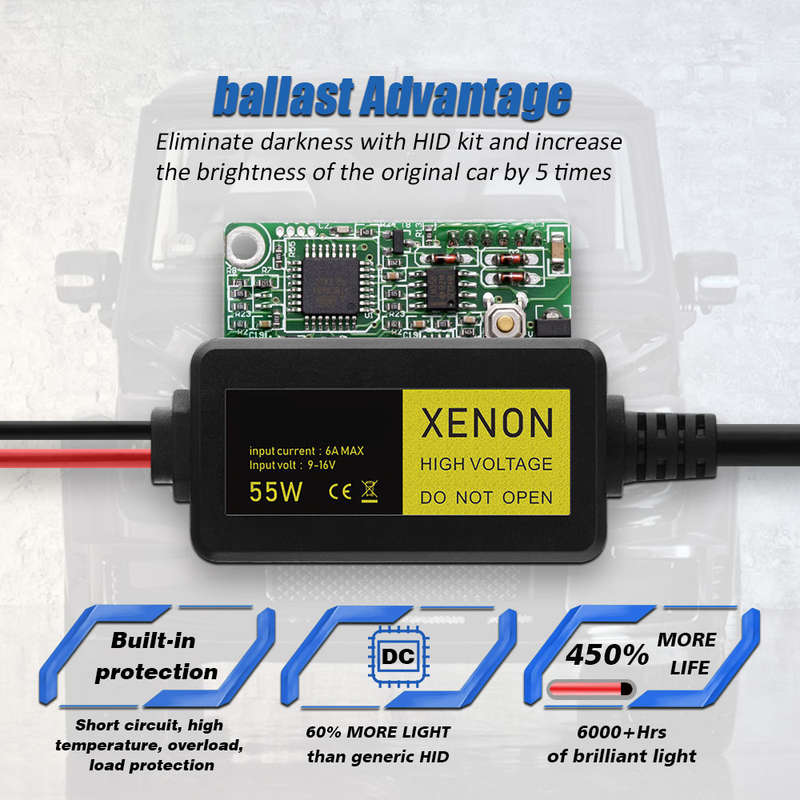

Super MINI Xenon Light Set: This kit contains everything you need to upgrade your existing car headlamp system to optimal lighting! (Single beam does not require relay harness) The kit rectifier uses the world's most advanced chip technology, MINI integrated design ballast / rectifier (rectifier volume
is only 5.5 * 2.8 * 3CM). Integrating more high-quality components greatly enhances the life and stability of the product.
Greatly reduce the volume of the ballast and reduce the space occupied by the car. Make installation easier and faster.

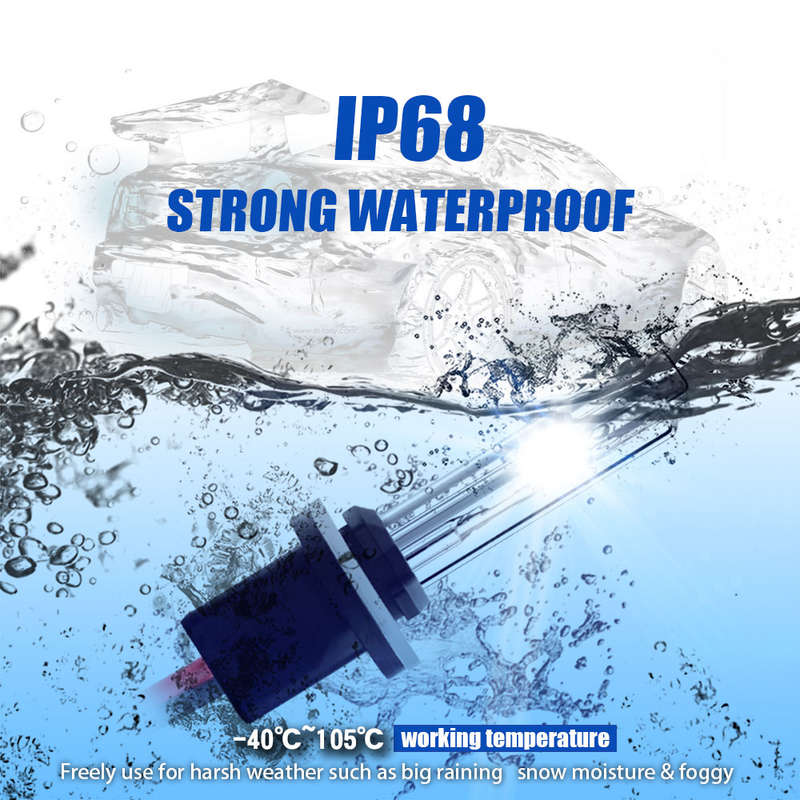

Specification: Voltage input: 9-16V Voltage range: 13.2V Current specification: 4.2A Maximum current: 6A Power output: 55W Working temperature: -40~ + 105 Centidrgee. HID efficiency: 98.68%, 3,200 LM. Life expectancy: 3,000 hours Certification: E4 and ISO-9001: 2000 approval Lamp size and color temperature available Bulb Type: H1, H3, H4, H7, H8/H9H11, 9005/HB3, 9006/HB4, 880, 9012 Color temperature available: 6000K Ballast power: 55W

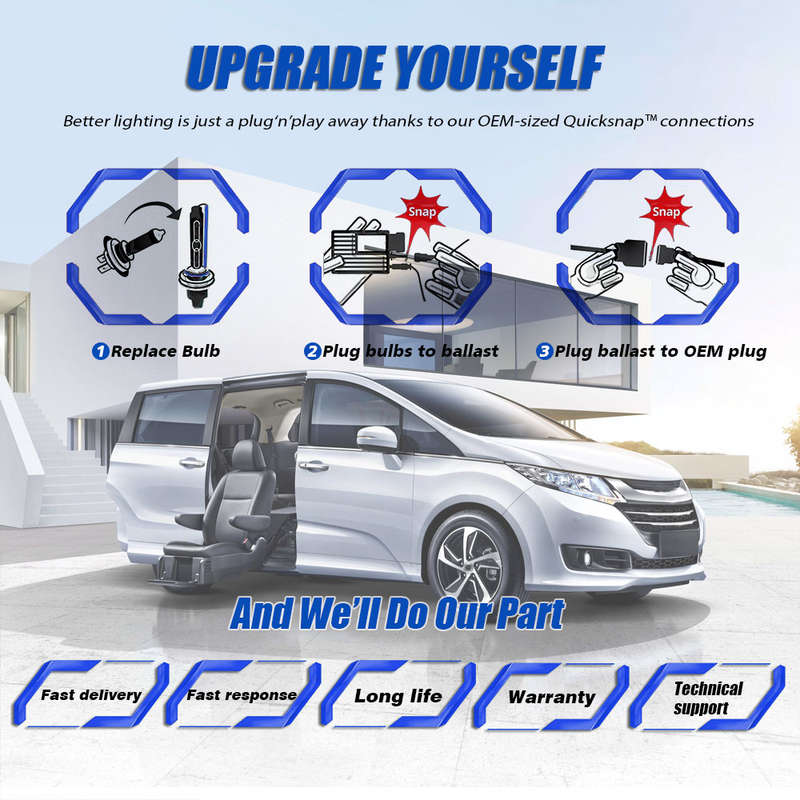

Installation guide: Make sure your engine compartment is cool. Make sure the car is parked and closed. Be careful not to squeeze or cut the lamp wiring.. Do not connect the high voltage electrode when the light switch is turned on. It is recommended to test each lamp function before final permanent installation. Do not install the ballast near extreme heat or vibration, as it will shorten its life.
Common problem: 1.The light is not bright
Solution: The ballast plugs have the opposite polarity. This simply means flipping the elliptical plug inserted into the ballast.
Unlike conventional halogen bulbs, the polarity of the ballast (-/+) is sensitive. Retest. If the problem persists, replace the ballast
or lamp to diagnose the lamp or ballast. In many cases, it is not the HID kit, but the culprit of the vehicle. Some vehicles, such as for Chrysler/Dodge/Jeep/BMW/Mercedes, may require additional wiring/eliminator plugs to mount the HID.
2.The light will then illuminate, flash or quickly turn off
Solution: In many cases, the HID kit is not the culprit, but the vehicle. Some vehicles, such as Chrysler/Dodge/Jeep/BMW/Mercedes, may require additional wiring/eliminator plugs to mount the HID.

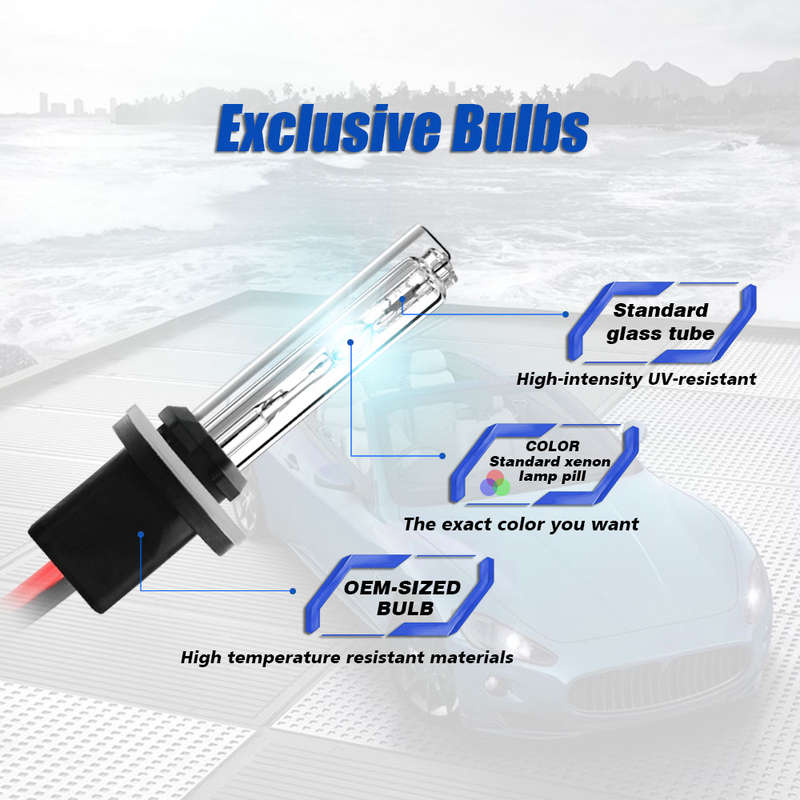

Package Included: 2 * Xenon HID bulbs 2 * MINI ultra-thin HID ballast (rectifier ultra-thin ultra-mini design, easy to install) All necessary wiring and connectors
