Description:
Resolution: 1280 * 960
Resolution: 600TVL
Camera Dimensions: 12.5mm * 12.5mm * 17mm
Illumination: 0.5LUX
Format: PAL
Power supply range: 3.7-5V 100mA
Audio Lens: Wide-angle 1.8mm (170 degree)
Image sensor:1/4 CMOS image sensor
Sensitive area: 3.5964mm x 2.7084mm
648 pixels (horizontal) 488 (vertical) 648 (horizontal) 488 (vertical)
Scanning Frequency Horizontal: 15.625KHz
Vertical: 50Hz
level: 15.7343KHz
Vertical: 60Hz
Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
SNR 48dB (AGC OFF)
Minimum illumination : 0.1 Lux / F1.2
Composite video signal :1.0Vp-p 75
Standard Lens :1.8 mm
Specifications PCB: 20mm*20mm
Power: DC5V 10% 70mA 10%
Operating temperature :-10 C ~ 60 C RH95% Max

Note: Only supports 3.7-5V voltage , the manual book says 5-12V voltage is wrong .

Package includes:

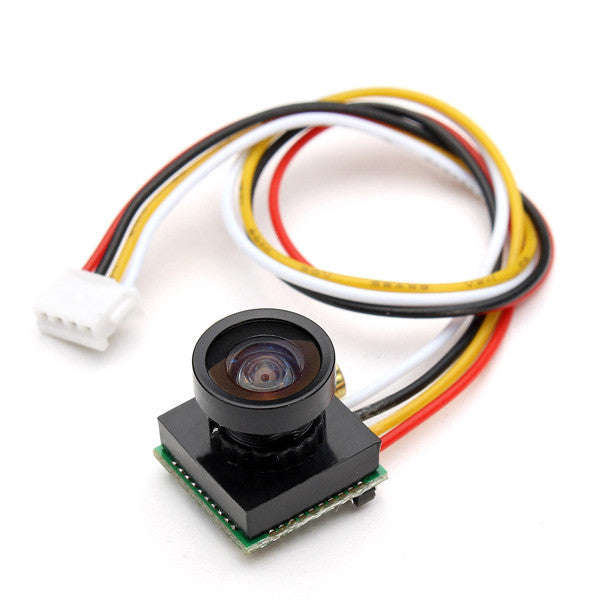

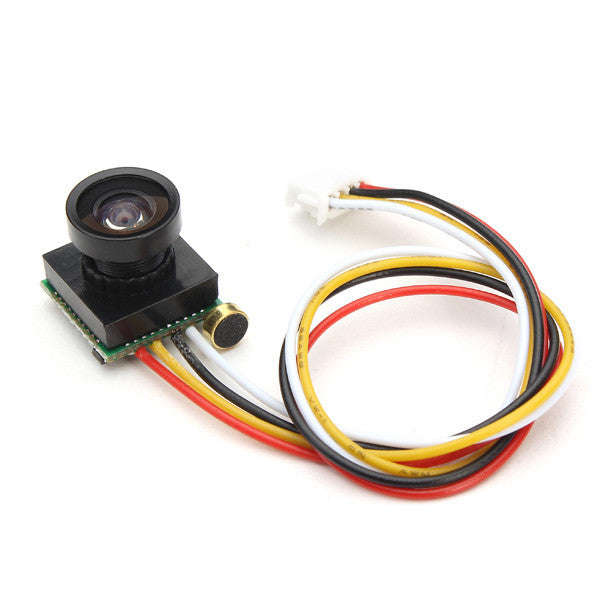

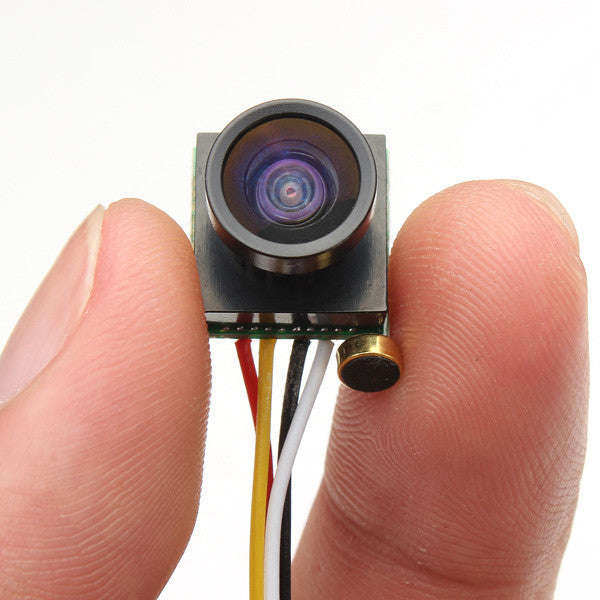

1x 600TVL  Wide Angle Lens Camera
