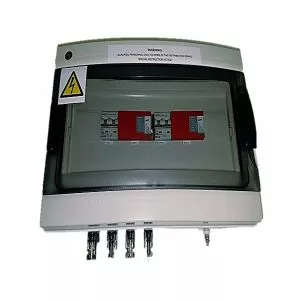

600V Protection Box 2 inputs 2 Outputs 16A Isolator Type II SPD

600V Protection Box 2 inputs 2 Outputs 16A Isolator Type II SPD

New 11 available
R6,931.68
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DCB-NF-2I-600V-I16A-II-2O
Bob Shop ID
649568601



Outdoor-rated DC box for easily adding protection features to the PV strings into your MPPT. The box includes several features that reduces the amount of separate components you need to install.

Inputs and Outputs

This unit combines 2 PV input pairs into 2 DC outputs. The inputs and outputs have MC4 connectors pre-fitted. There is also a gland output for earthing.

DC isolation: rated at 16A and 600V

DC surge protection

This unit has Citel Type 2 DC surge arrestors included and is suitable for installation sites that experience less frequent lightning strikes. The SegenSolar design tool estimates the strike rate of a given postcode location and recommends whether Type 1 or 2 protection is appropriate.

Documents

  • Data Sheet
  • Warranty
