Specifications:
Nation Adapter: US 120V, EU 230V

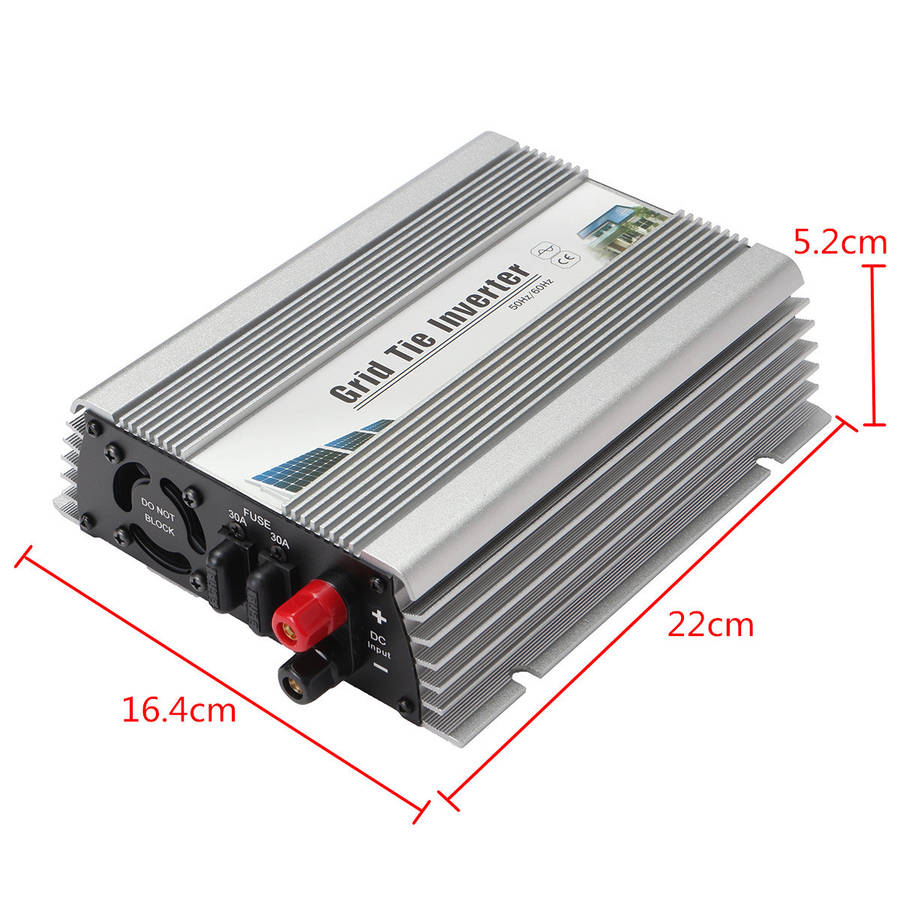

Size: 22 x 16.4 x 5.2cm/ 8.66 x 6.46 x 2.05"
Rated power: 600W
Solar panels: ≥600W
DC input range: 22-60V DC
MPPT voltage: 24-48V
DC MAX. current: 50A
AC MAX. output: 650W
AC output range: 120VAC(90-140VAC) or 230VAC(190-260VAC)
Frequency range: 50Hz/60Hz(Auto control)
Power factor: >97.5%
THD: <5%
Phase shift: <2%
Peak efficiency: >85%
Stable efficiency/120V: >83%
Stable efficiency/230V: >84%
Protection: Islanding; Short-circuit; Converse connection; Low voltage; Over voltage; Over temperature protection.
Working temperature: -25¿¿¿-65¿¿¿
Working humidity: 0%~90%RH non-condensing
Waterproof: Indoor design
Show: LED
Cooling: Fan
Stand-by power: 2-3W
EMC: EN61000-6-3:2007 EN61000-6-1:2007
Grid disturbance: EN 50178+EN 62109-1+VDE0126-1-12
Grid detection: DIN VDE 1026 UL1741
Certificate: CE
Advantages of smart microinverter:
1. Unique circuit design,choice of import industrial electronic components, higher efficiency, more stable performance.
2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive of reaction and more reliable of maximum power point locking.
3. Parallel modular design, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.
4. Adopting high-frequency isolation transformer type, high efficiency, and high security.
5. Perfect electrical protection function.
6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
7. Getting electronic circuit design, apperance design and other core technology Patents.
8. Wide input voltage (22-60VDC), suit for different DC power supply.Package Included:

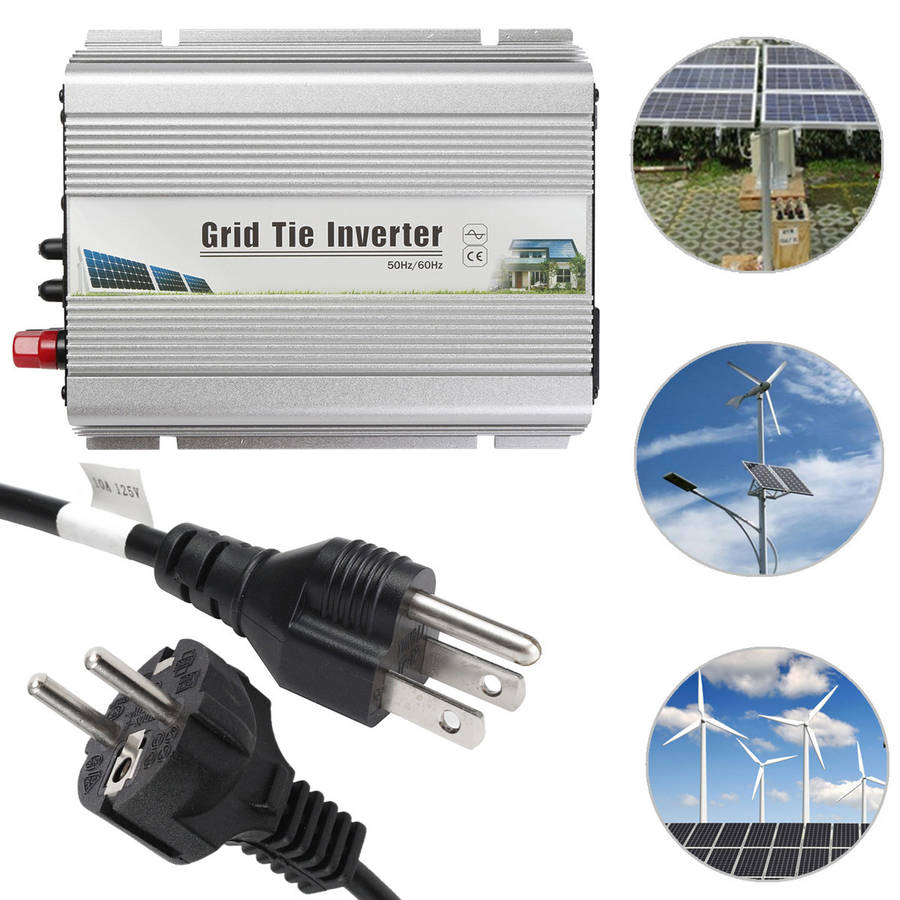

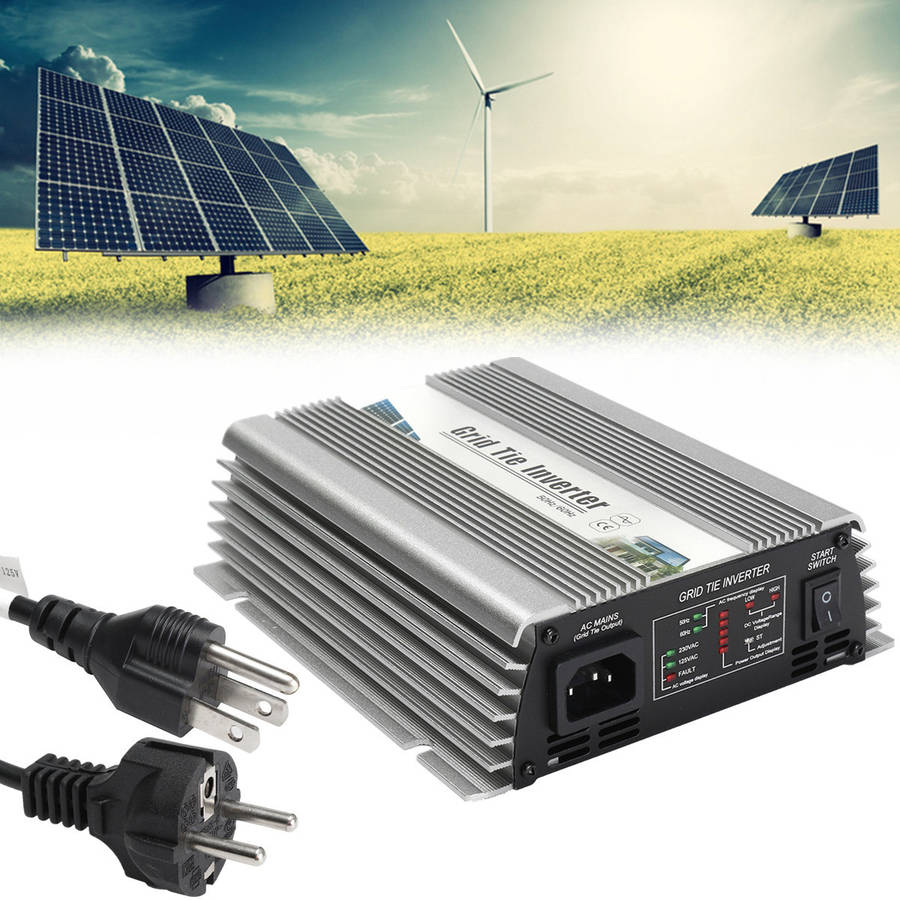

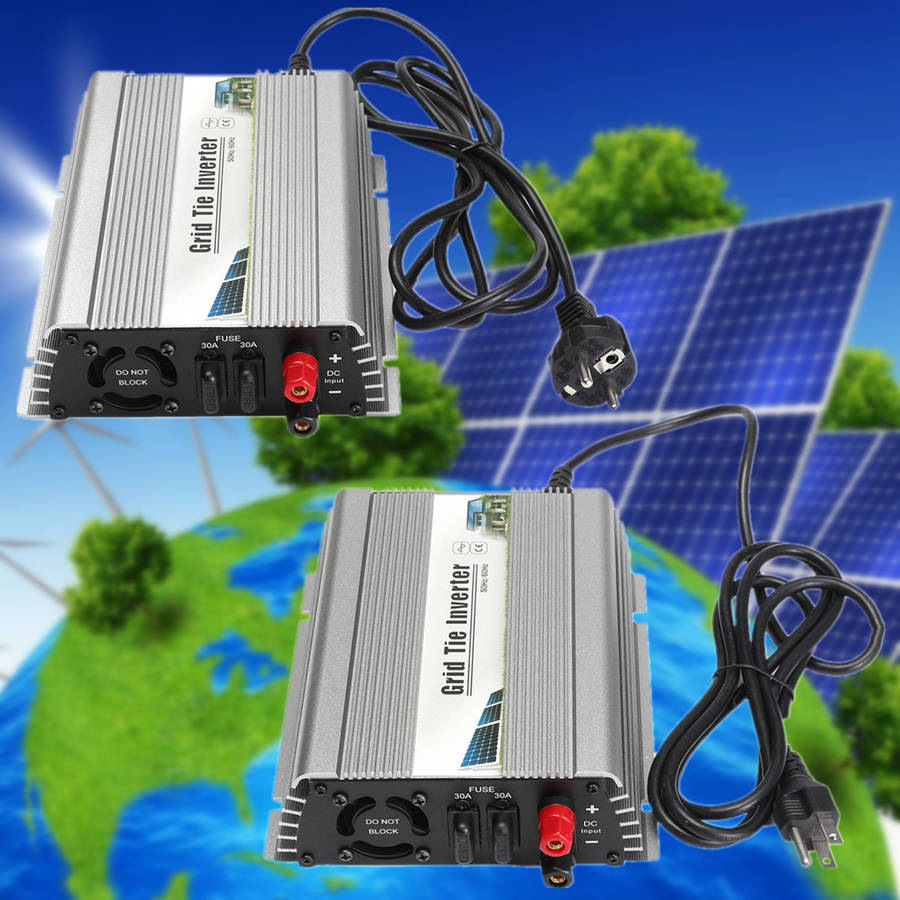

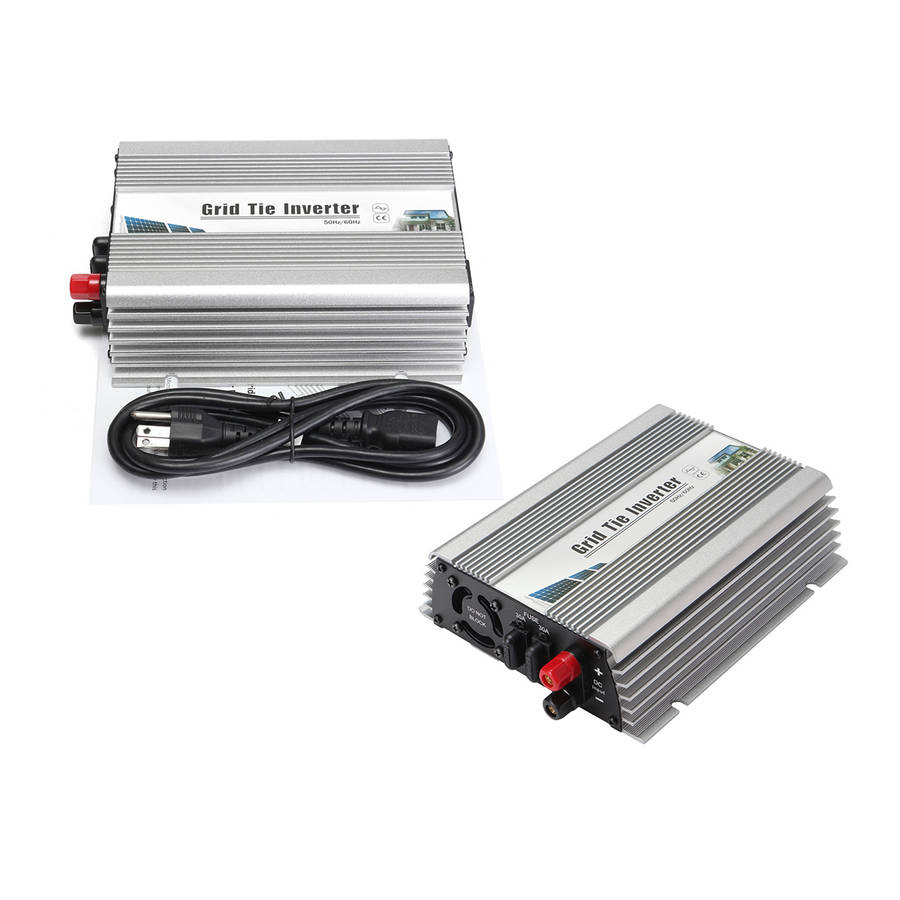

1 x Solar Grid Tie Inverter
1 x AC Cord

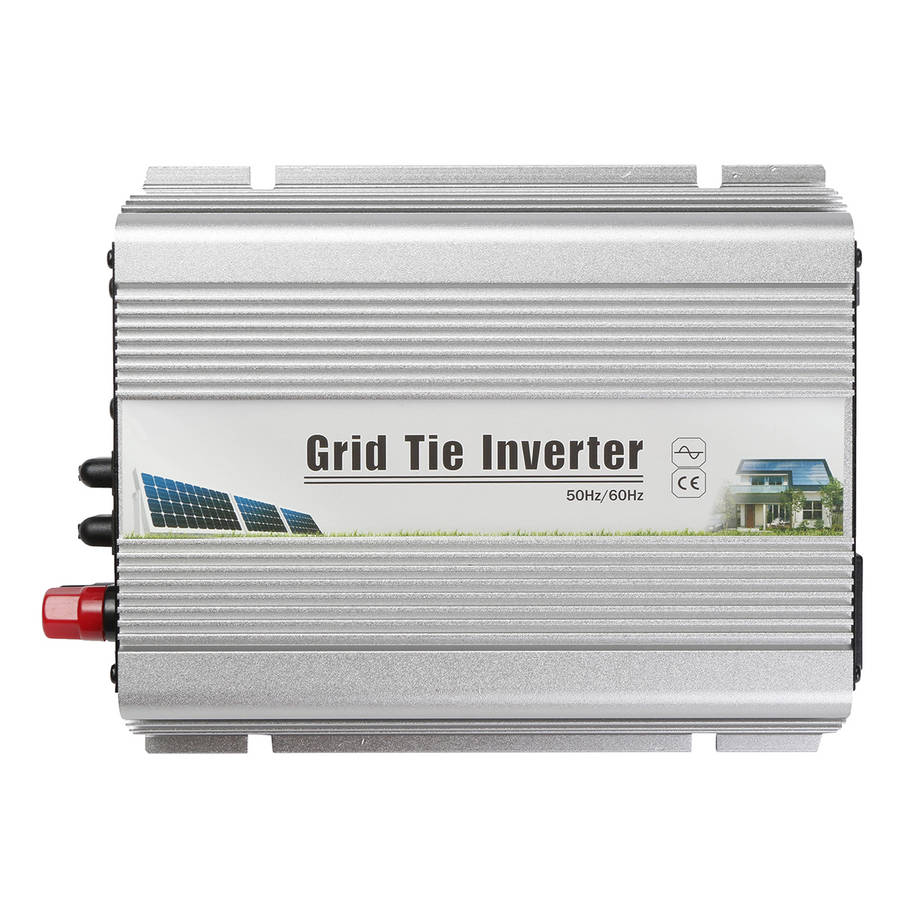

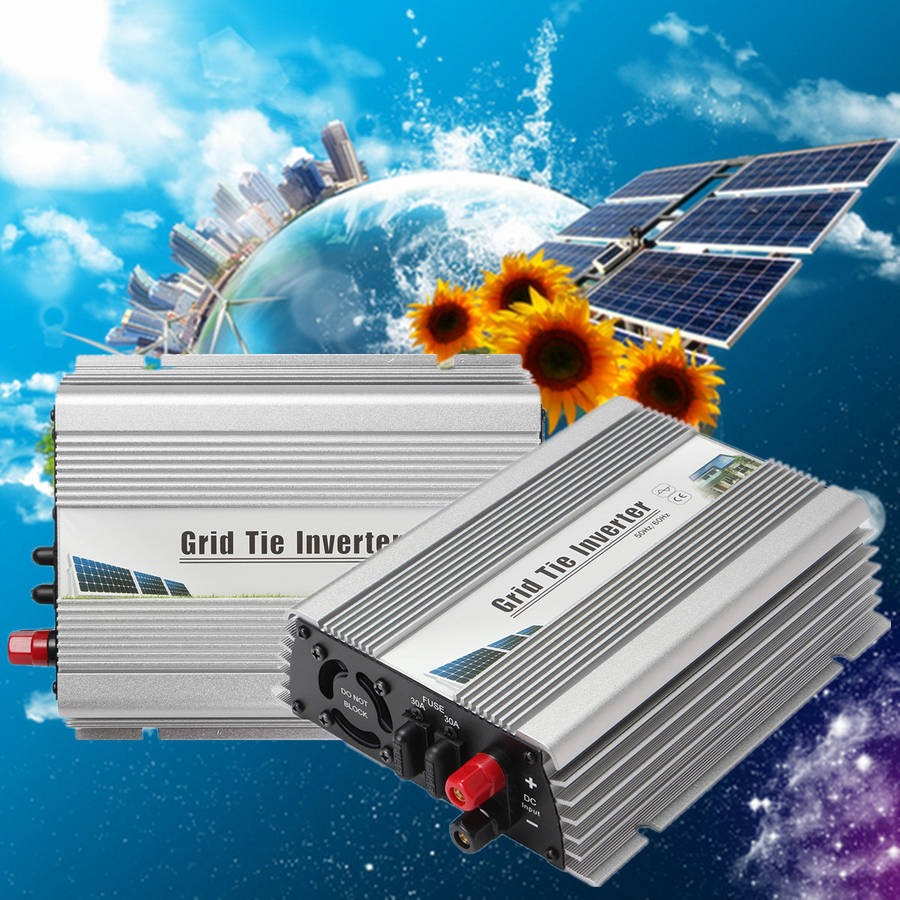

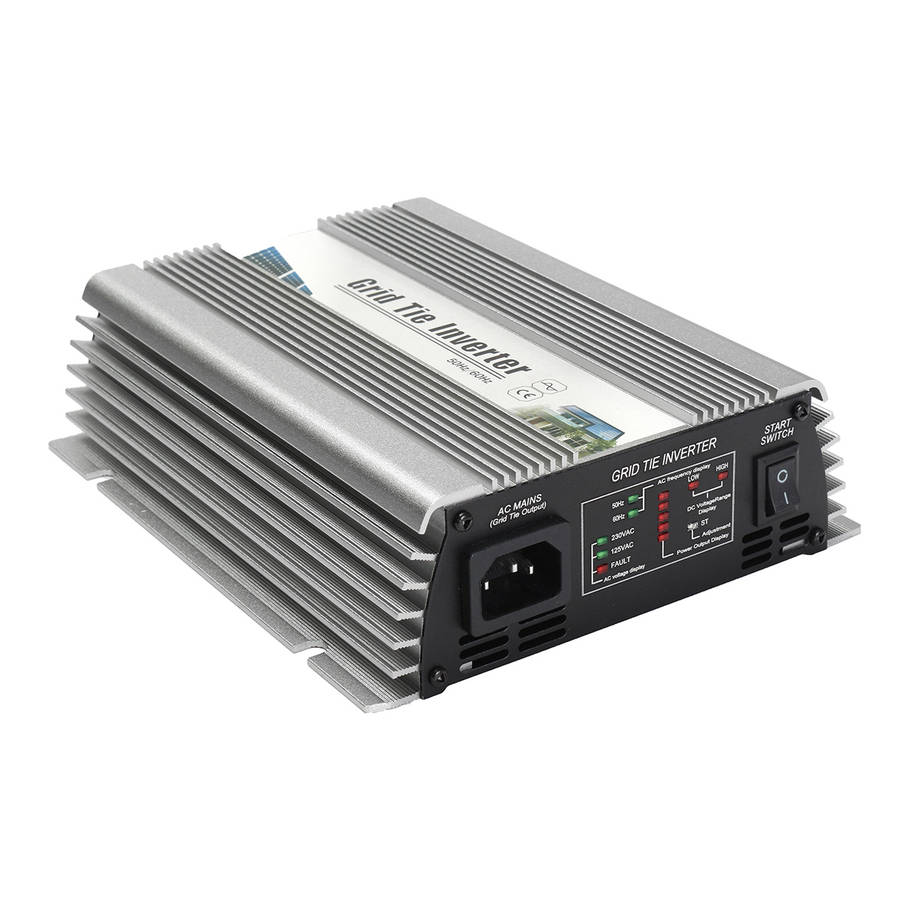

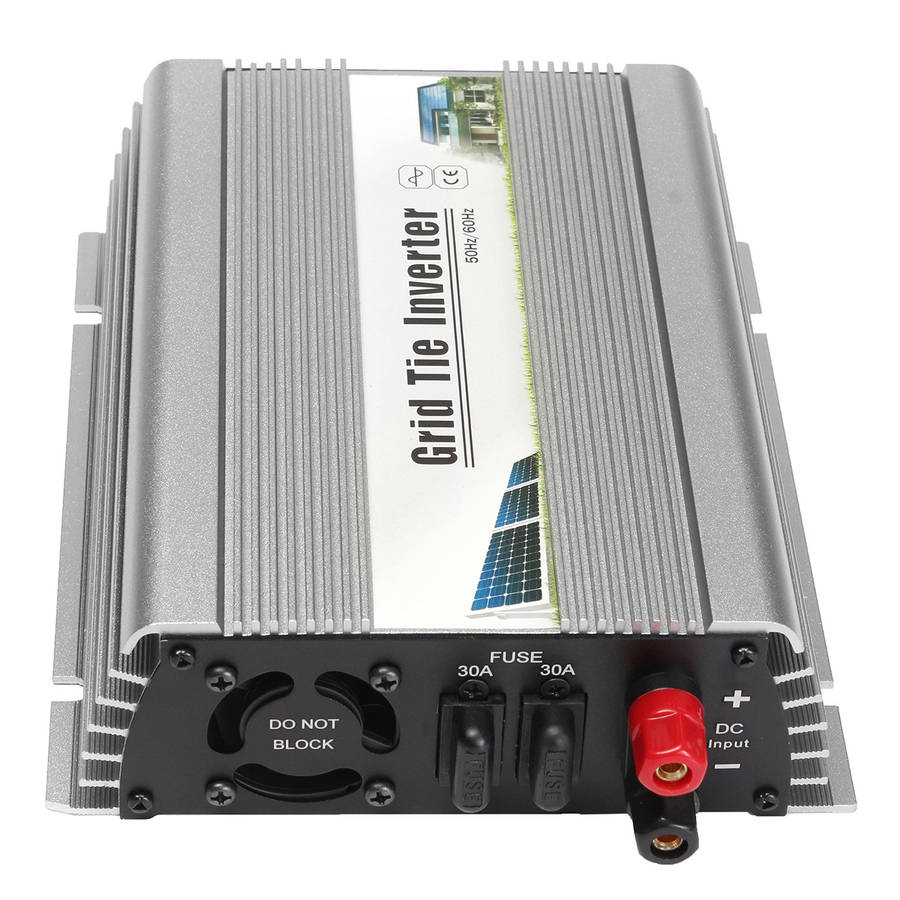

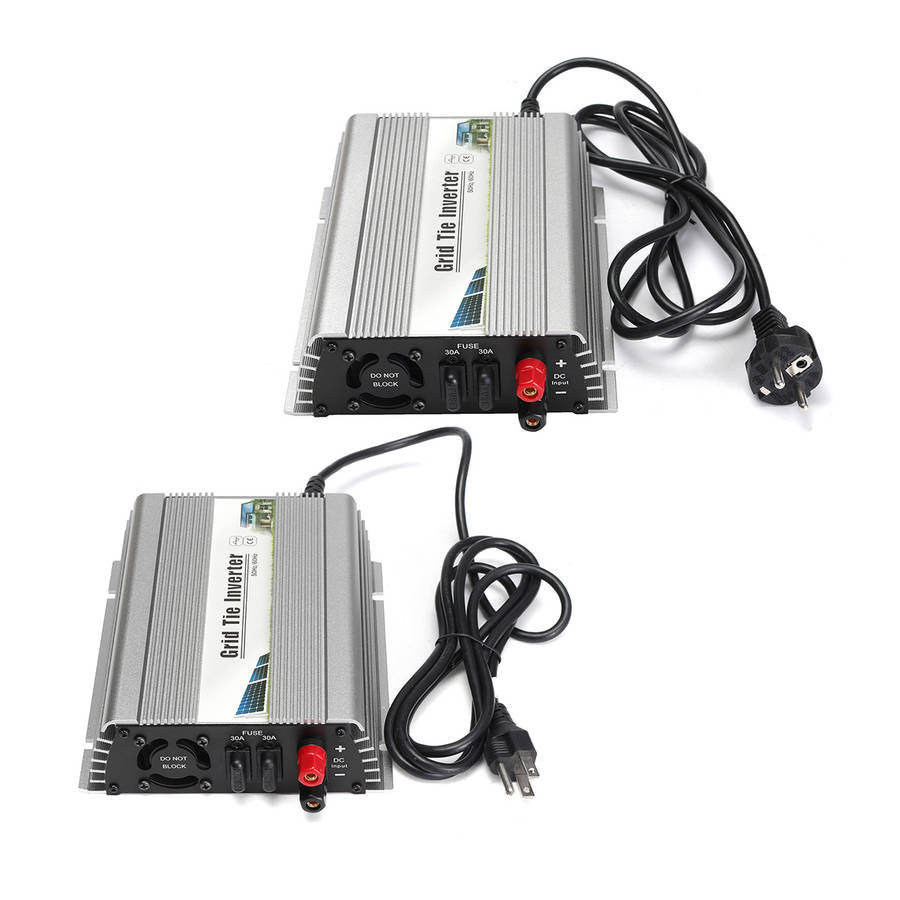

1 x English User ManualDetails pictures:
