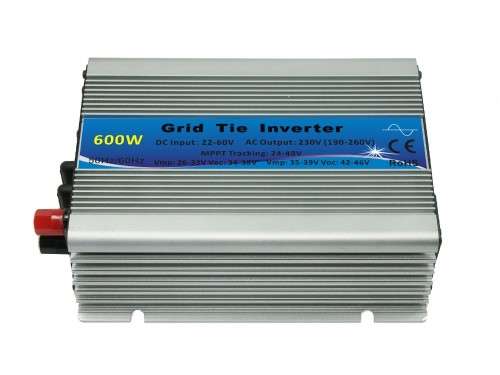

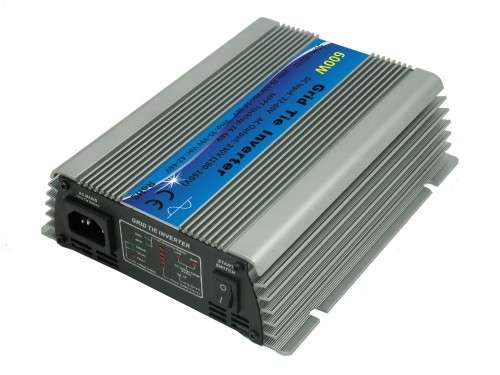

600W Grid Tie Inverter MPPT Function 30V 36V Panel 22-60VDC to 230VAC Solar Power Pure Sine

Features of Smart Microinverter:

1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.

2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.

3. Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.

4. Adopting high-frequency isolation transformer type, high efficiency, and high security

5. Perfect electrical protection function.

6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.

7. Getting electronic circuit design, appearance design and other core technology patents.

8. Wide input voltage (15-60VDC), classification processing for different input voltages. It can work with different DC power supplies.

Technical Parameters:

Smart Grid Tie Microinverter Technical Parameters

(Suit for 60 cells solar panel which Vmp is 26-33V as well as Voc is 34-38V.)

(Suit for 72 cells solar panel which Vmp is 35-39V as well as Voc is 42-48V.)

Power  200W 300W 400W  500W  600W

Solar panels    200W   300W   400W  500W  600W

DC input range     22-60VDC

MPPT Voltage   24-48V

DC MAX current    15A   20A   30A   45A  50A

AC MAX output  230W  330W  430W  550W  650W

AC output range   230VAC(190-260VAC)

Frequency range   50Hz/60Hz(Auto control)

Power Factor     >97.5%

THD   <5%

Phase Shift   <2%

Peak Efficiency/220V   >90%   >90%   >88%   >88%   >85%

Stable Efficiency/220V  >88%  >88%  >86%  >86%  >84%

Protection   Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection

Work Temperature    -25-65 degree

Work Humidity   0%~90%RH non-condensing

Grade of Waterproof    Indoor design

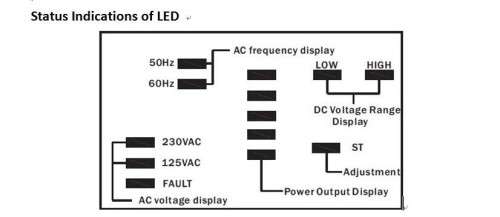

Show    LED

Cooling   Fan

Stand-by Power  2-3W

EMC    EN61000-6-3:2007 EN61000-6-1:2007

Grid Disturbance   EN 50178+EN 62109-1+VDE0126-1-12

Grid Detection  DIN VDE 1026 UL1741

Certificate  CE

Mounting dimension    16*13CM
