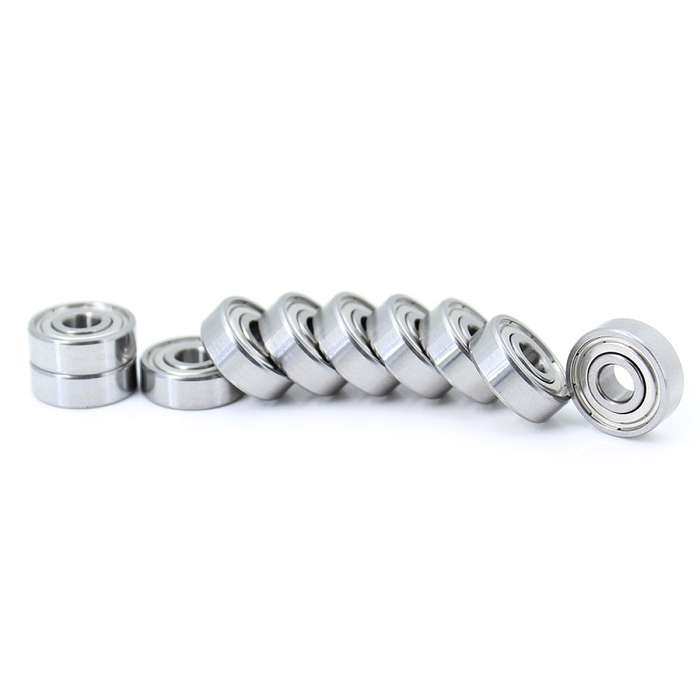

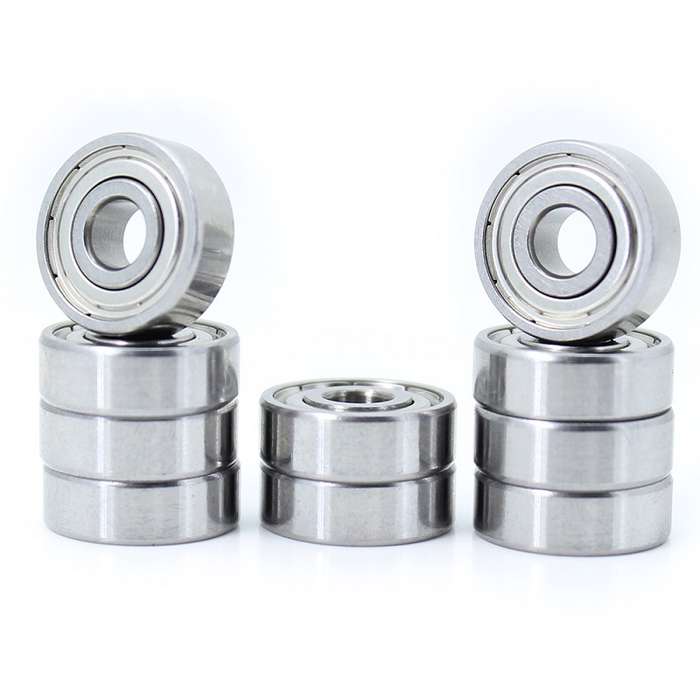

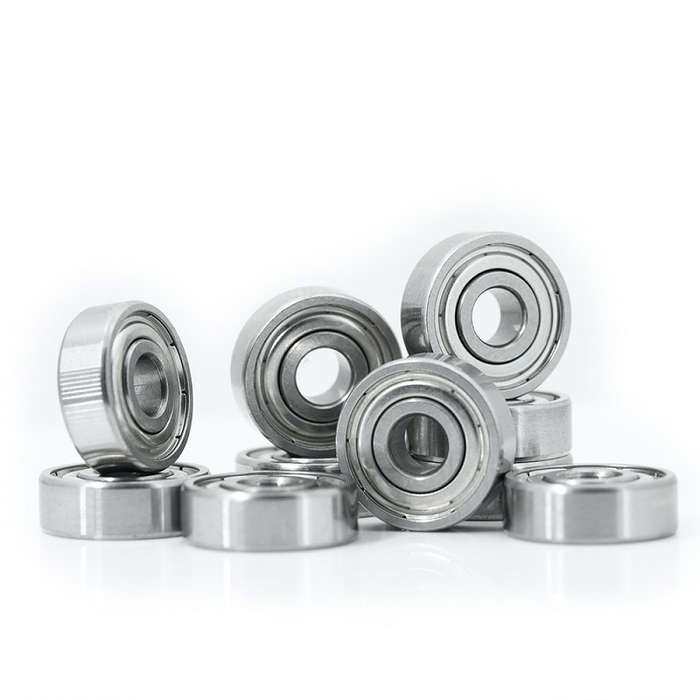

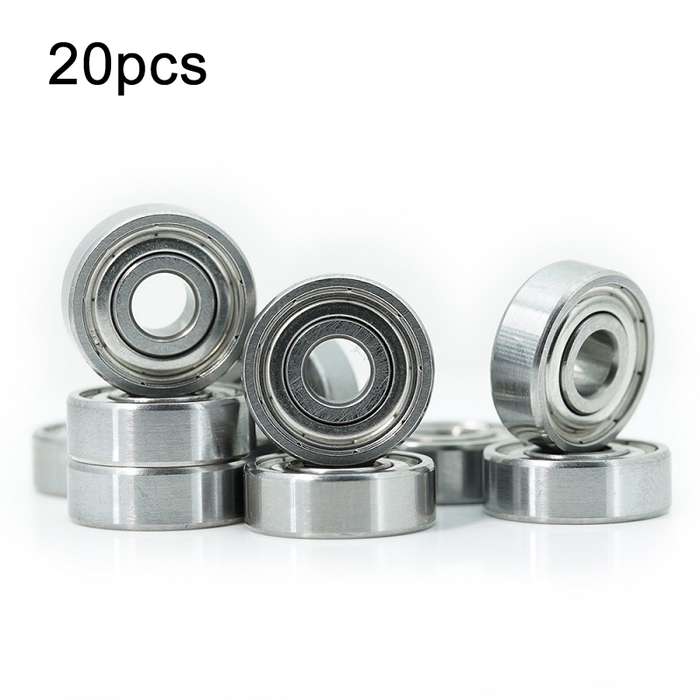

604zz 20pcs Miniature Bearings Silent Deep Groove Ball Bearings

1. Material: bearing steel
2. Precision grade: P0
3. 604zz: inner diameter 4 mm, outer diameter 12 mm, width 4 mm
4. 605zz: inner diameter 5 mm, outer diameter 14 mm, width 5 mm
5. 606zz: inner diameter 6 mm, outer diameter 17 mm, width 6 mm
6. 607zz: ID 7 mm, OD 19 mm, width 6 mm
7. 608zz: inner diameter 8 mm, outer diameter 22 mm, width 7 mm
8. 609zz: inner diameter 9 mm, outer diameter 24 mm, width 7 mm
9. 6000zz: inner diameter 10 mm, outer diameter 26 mm, width 8 mm
10. 6001zz: inner diameter 12 mm, outer diameter 28 mm, width 8 mm
11. 6002zz: inner diameter 15 mm, outer diameter 32 mm, width 9 mm
12. High speed, low noise, long life
13. High temperature resistance, high precision, excellent product

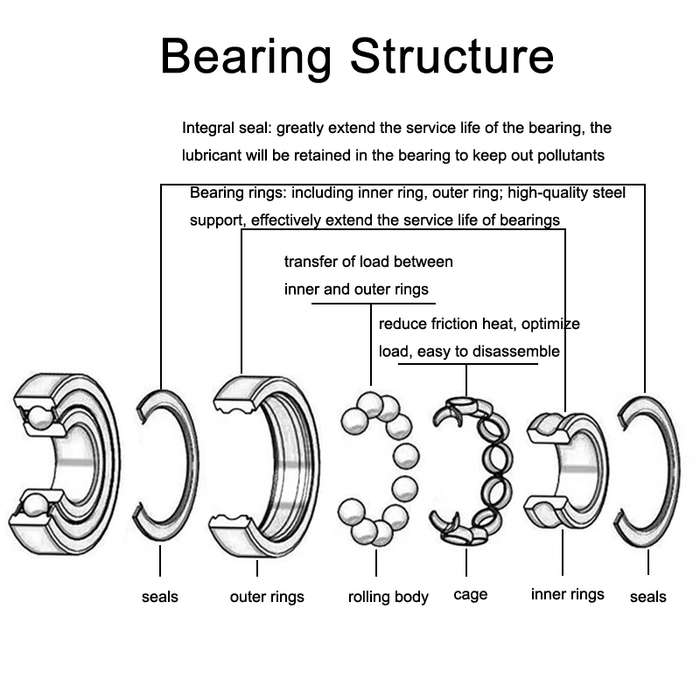

14. Bearing collar: contains inner ring, outer ring; high quality steel support, high efficiency to extend bearing life
15. Rolling body: transfer the load between the inner and outer ring
16. Cage: reduce frictional heat, optimize the load, easy disassembly
17. Integral seal: significantly extends bearing life, keeps lubricant in the bearing and keeps contaminants out
