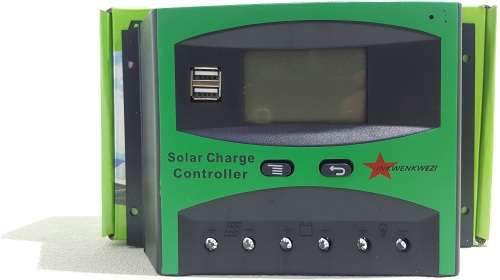

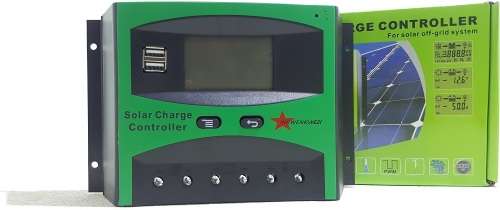

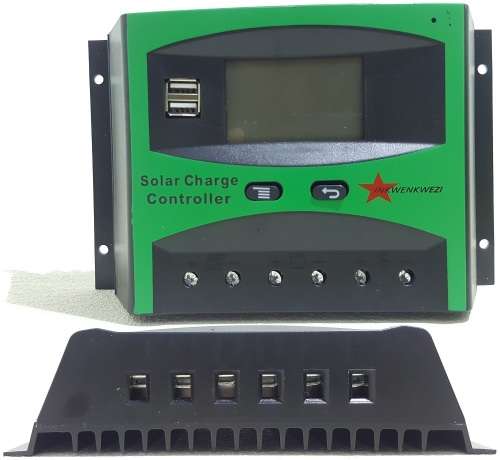

Designed for off-grid solar systems. The device is used for the charging and discharging of solar batteries. Focusing on battery protection, resulting in longer lasting batteries and improved system performance.
Features:
Specifications:
Model | LD2560C |
Rated Voltage | DC 48V |
Rated Current | 60A |
Max. Input Solar Panel Voltage | 100V |
Self-Consumption | <12mA |
Max. Charging Current | 60A |
Max. Discharge Current | 60A |
LVD | 11.0V Adjustable 9V-12V; *4 48V |
LVR | 12.6V Adjustable 11V-13.5V; *4 48V |
Float Voltage | 13.8V Adjustable 13V-15V*4 48V |
Boost Charge | 14.4V; *4 48V. Battery Voltage less than 24V, boost charge for 2hrs |
Over Voltage Protection | 16.5V; *4 48V |
Temperature Compensation | -24mV/°C for 12V system; *4 48V |
Working Temperature | -20°C - 55°C |
Terminal Scale | 14-6 AWG 16mm2 |
Waterproofing | IP32 |
Dimensions(LxWxH) | 19 x 4.1 x 10.8cm |
In Box:
