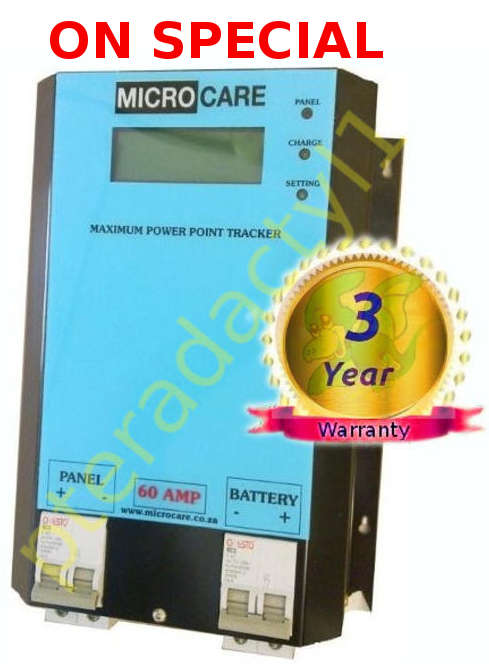

60A SOLAR LCD MPPT REGULATOR AUTO (12-48v) by MICROCARE - ON SPECIAL

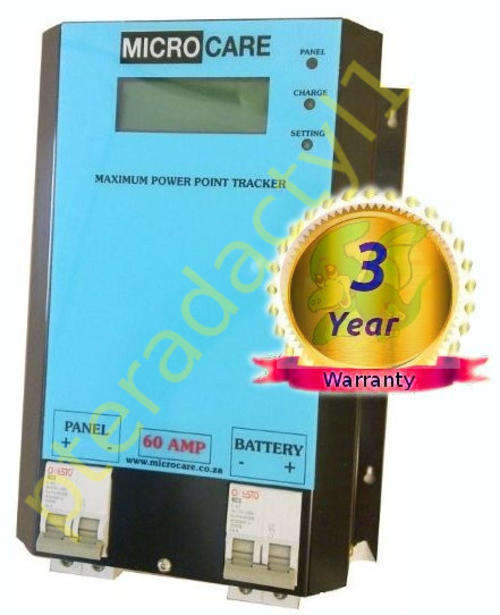

    60amp SOLAR LCD MPPT Regulator Auto (12-48v)

Why you should consider buying a MICROCARE product:

Proudly South African with 20 years of manufacturing with many units having been sold locally and internationally. Service and repair of the products at a minimum cost due to local manufacture.







MPPT OPERATION DESCRIPTION:

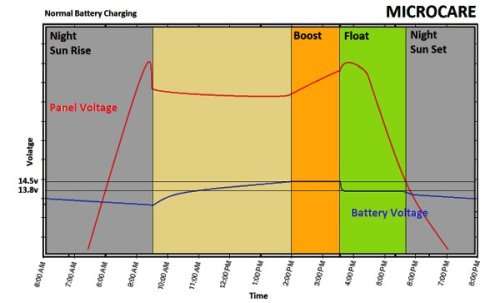

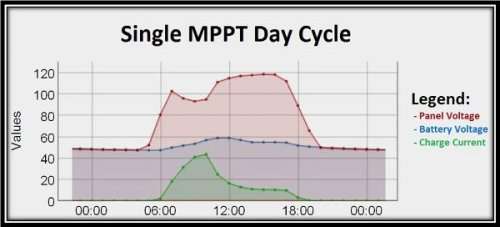

    Above and below schematics show how an MPPT functions during the course of a day.



In the morning, as soon as the MPPT detects that the Panel Voltage is at a usable level (MPPT charge entry voltage): it starts to charge the batteries at maximum efficiency in a BOOST mode which has a nominal voltage of 14.5V per 12V battery bank. If however the batteries are detected to not be uniformly discharged, the MPPT will go into EQUALISE mode to restore the battery bank balance before switching to BOOST mode as its primary charge mode..

The MPPT maintains this mode until the batteries reach the boost voltage and the charge current decreases to a level below a nominal changeable level of 6 Amps. The MPPT then steps down the charge voltage to a nominal voltage of 13.8V per 12V battery bank in FLOAT mode. The MPPT will attempt to maintain FLOAT mode for as long as the panel voltage is present. If no panel voltages present, the MPPT goes into a sleep state until it detects a rise in panel voltage indicating a new day for charging.





Order Lead Time: From receipt of your payment approx 5 - 7 working days before order will be ready for shipping.
