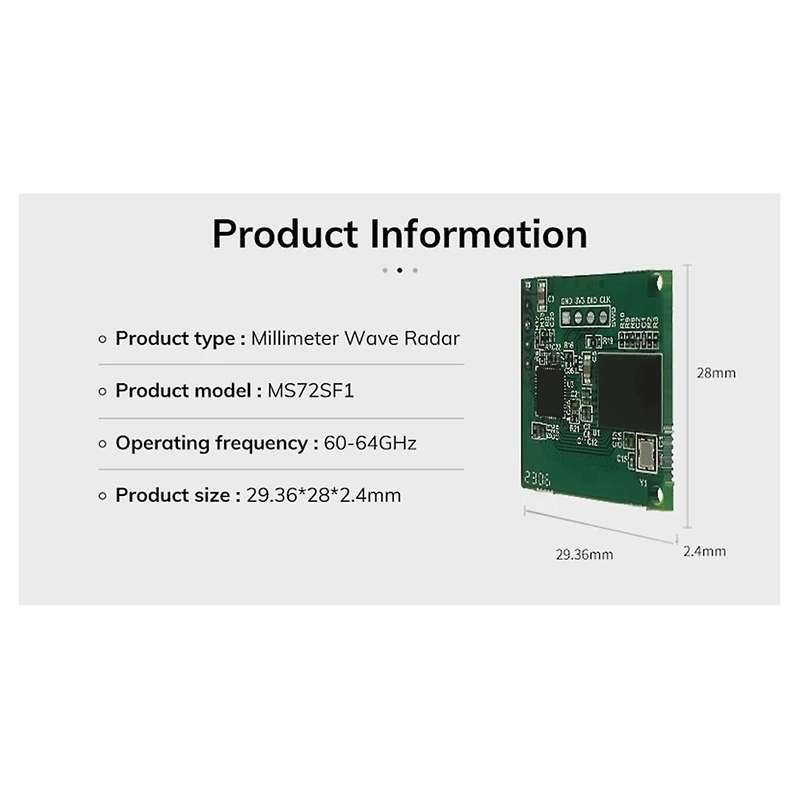

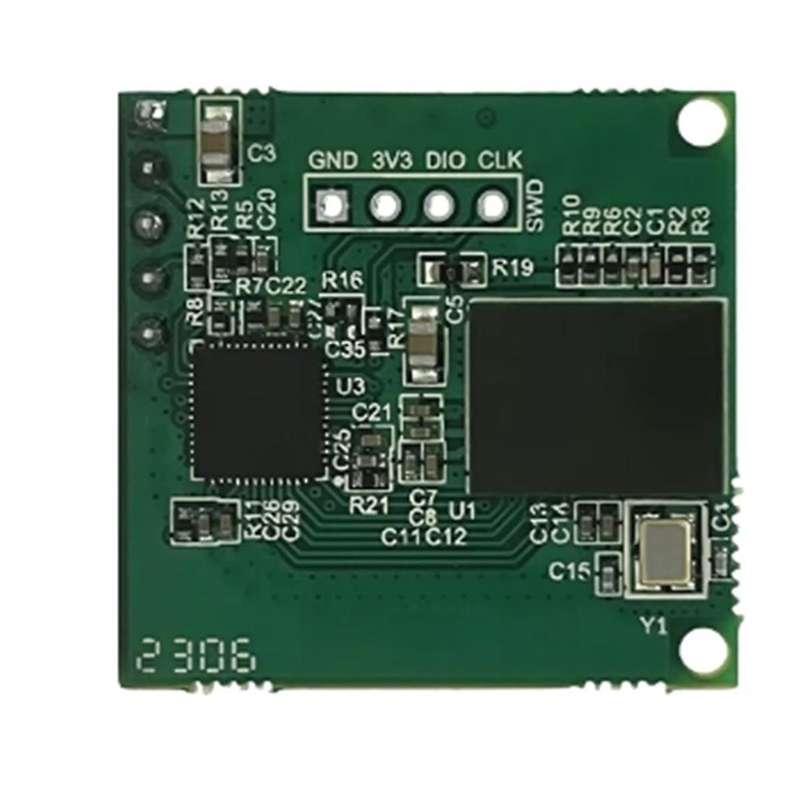

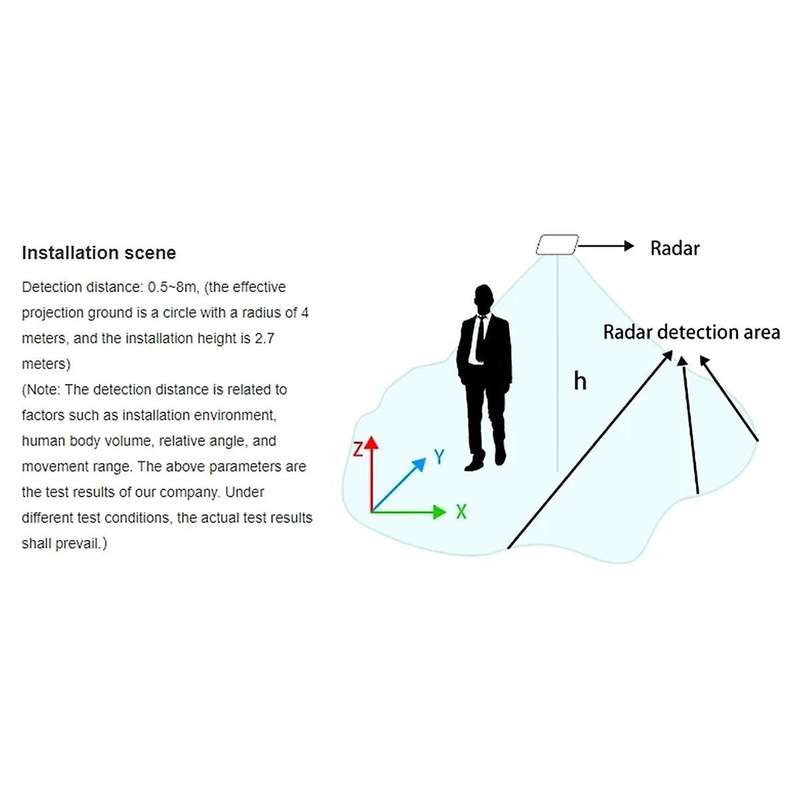

MS72SF1 millimeter-wave radar is not affected by light,and can realize non-sensing and active monitoring of indoor occupants throughout the day, and has the function of personal privacy protection. It is currently the best sensor for home scene applications.This product adopts domestically produced chips and is independently controllable to realize accurate tracking and positioning of many people in the room. At the same time, it can detect people in static states such as reading and sleeping, and can suppress interference such as curtains and green plants. This product has the advantages of low cost, high reliability and high performance.It can realize the target tracking function of up to 10 people, including the target movement trajectory and the real-time position of the targetStrong ability to suppress false targets(curtains, green plants, multipath, etc.), High sensitivity to detect micro-moving targets(stationary, shaking, waving, etc.)area division: The user can flexibly configure the detection areaNote:Unaffected by the environment: Unaffected by temperature, humidity, dust, light, noise, etc.Installation :top installationDetection Distance:0.5-8m, (The effective projection ground is a circle with a radius of 3.5 meters, and the installation height is 2.7 meters)Azimuth Coverage:60Pitch angle coverage:60 Consumption:0.3wMax Consumption:1.7wNumber of Trackers:less than equal 10Working Frequency:60-64GHzProcessing Period:less than equal 30ms Consumption:0.3wInstallation position:The module is installed on the ceiling with the antenna facing down, and the installation height is 2.3-2.8m. When installing the module, try to keep it as fixed as possible to avoid shaking of the module. The surrounding environment should be as open as possible,and the USB extension cable should be fixed as much as possible to avoid interference caused by the cable.Adjust the corresponding parameters as needed. Note: After modifying the parameters, click the button behind the parameters to complete the parameter modification.Colour:GreenMaterial:PC+MetalSize:29.36x28mmPackage Contents:1 * Sensor ModuleOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
