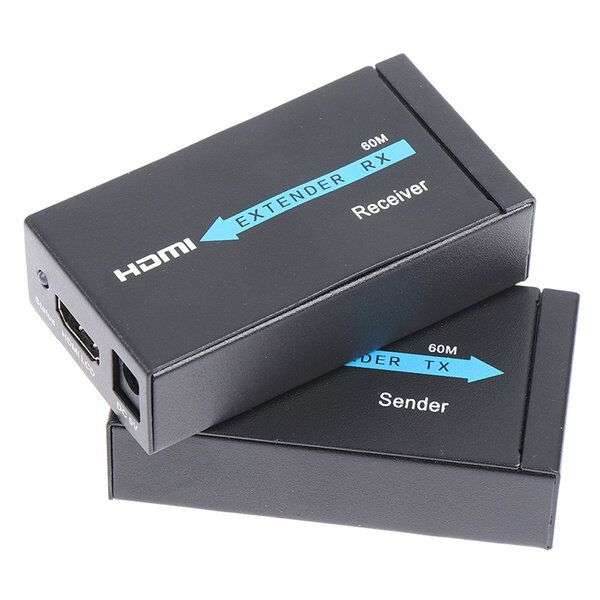

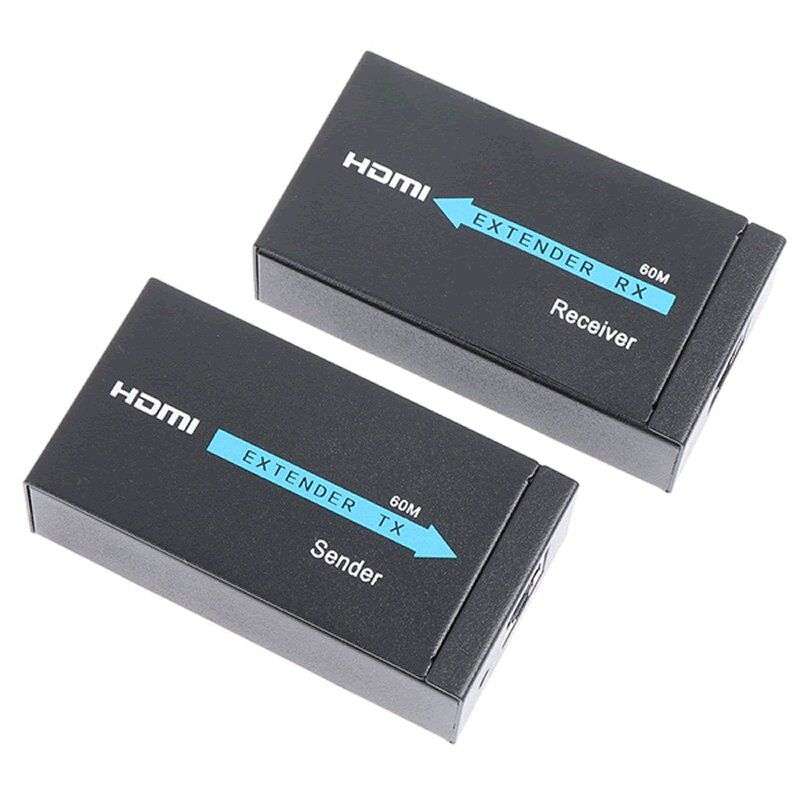

60M 1080P HDMI LAN Extender By Cat-5e/6

Description

Features:

-The Single Extender uses single Cat-5E or Cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down the cost.

-Long-distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent.

-The Extender is designed to supply for long-distance transmission of high definition signal.

-Our devices offer solutions for noise, space, and security concerns, data center control, information distribution,

- Conference room presentation, school, and corporate training environments. ??????????????

-Signal transmission: single cat-5e or cat (recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender.

-Support CEC

-Audio format support: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

-Support up to 20 meters AWG26 cable length between extender and sources & sink device

Specifications:

-Signal input: HDMI Signal

-Input Video Signal: 0.5-1 volts/p-o

-Output Video: HDMI Signal

-DTV/HDTV: 480i /576i/ 480P/ 576P/720P/1080i/1080P

-CAT-6 Cable: 200FT (60m) for 1080P

-Vertical Frequency Range: 50/60Hz

-Interlaced Resolutions(50&60Hz): 380i,576i,1080i

-Progressive Resolutions(50&60Hz): 480p,576p,720p,1080p

-Power Supply: 5V DC

-Power Consumption(MAX): 5W

-Extender Unit Certification: FCC,CE,RoHS

-Power Supply Certification: FCC,CE,RoHS

What's in the box

- 1 X 60M 1080P HDMI LAN Extender By Cat-5e/6-Receiver

- 1 X 60M 1080P HDMI LAN Extender By Cat-5e/6-Sender

2x charger
