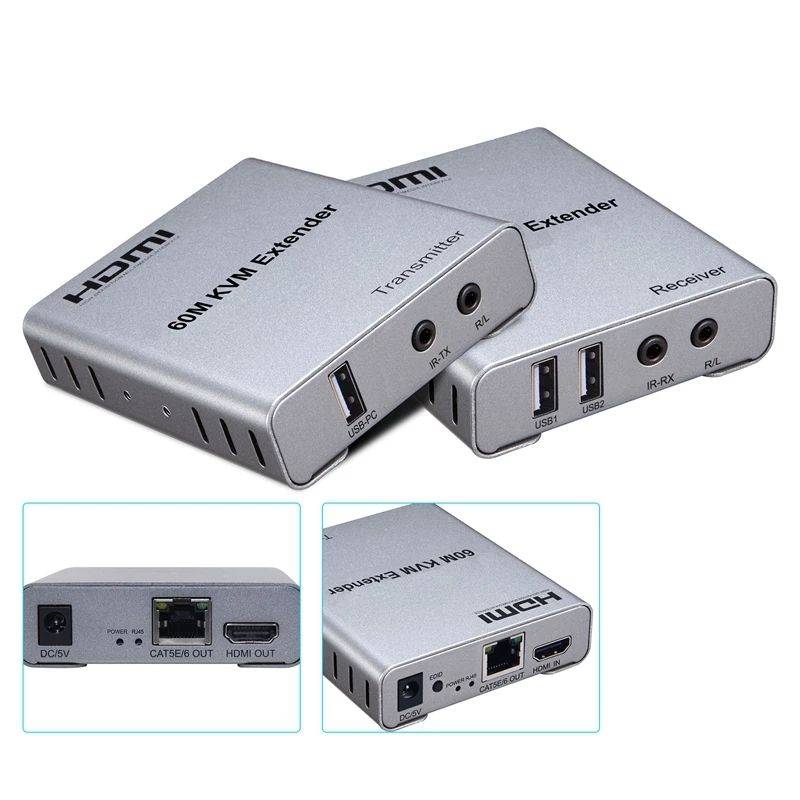

60M HDMI Extender KVM Signal Extender With Audio

Supports the highest resolution up to 1080P/60Hz. 60M long-distance transmission. Both the transmitter and receiver support 3.5MM left and right channel audio output. Low power consumption, low temperature, high safety. Support infrared IR control. Support USB mouse and keyboard extension. Product name: KVM single network extender. CAT5e or CAT6 cable length between the receiving end and the transmitting end: up to 60 meters.
HDMI input: 1080p/1080i/720p/576p/576i/480p/480i
HDMI output: 1080p/1080i/720p/576p/576i/480p/480i
Maximum transmission bandwidth: 150MHz
Maximum transmission rate: 4.5Gbps
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Input HDMI cable length: less than or equal to 10m AWG26 standard HDMI cable
Output HDMI cable length: less than or equal to 15m AWG26 standard HDMI cable
Maximum working current TX: 300mA
Maximum working current RX: 300mA
Power specification: Input: AC (50Hz, 60Hz) 100V-240V
Output: DC 5V/1A
Operating temperature range: (-15 to +45 Celsius)
Operating humidity range: 5 to 90RH (no condensation)

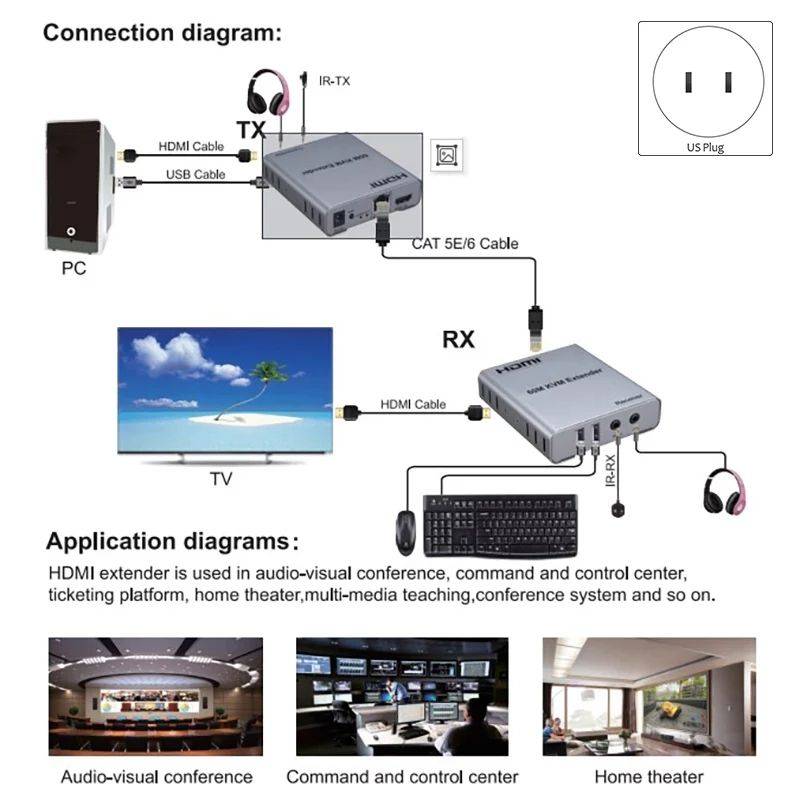

Application scenarios: HDMI cable extenders are mostly used in audio-visual conferences, command and control centers, ticketing platforms, home theaters, multimedia teaching, conference systems, etc.

What's in the box
1 x Extender Transmitter
1 x Extender Receiver
1 x IR Emission Line
1 x IR Receiving Line
2 x Power Adapter
1 x Instruction Manual
