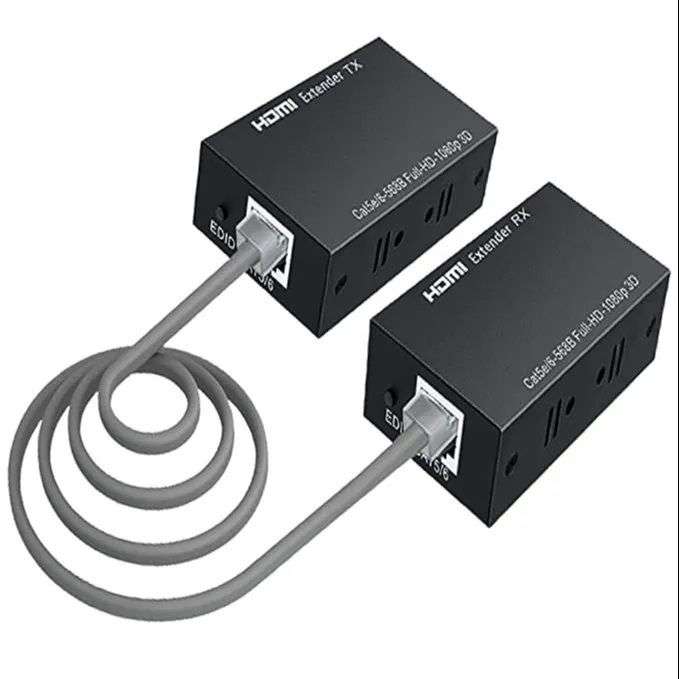

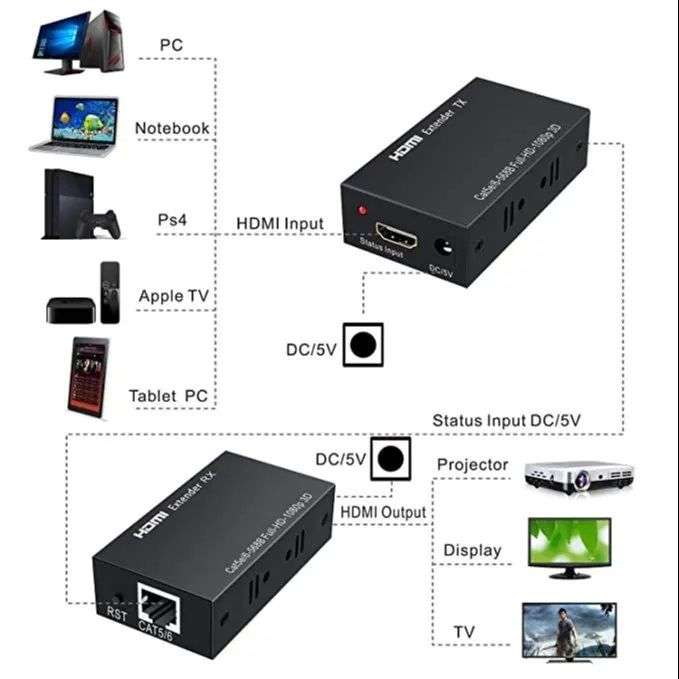

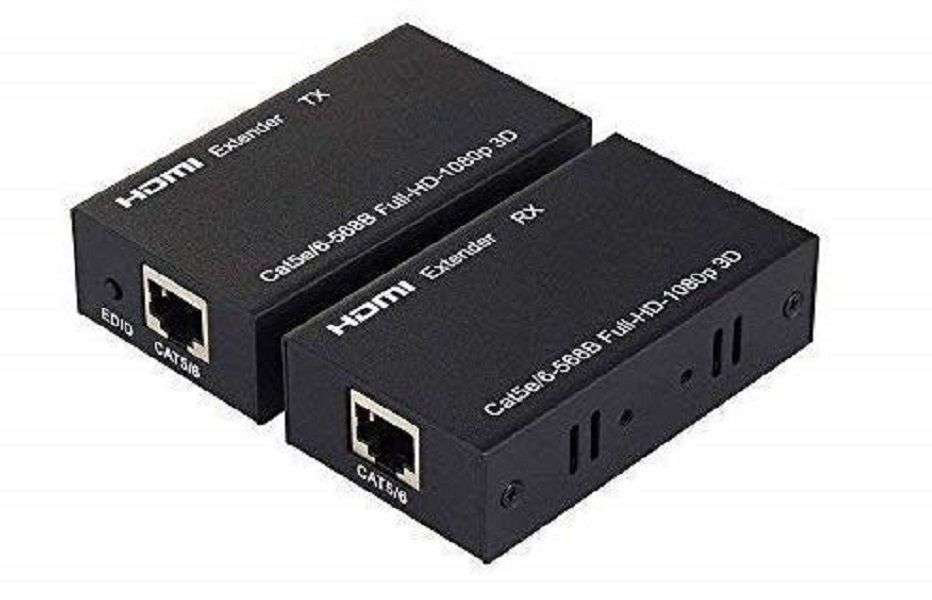

-HDMI Extender Over CAT5e/6. One transmitter module plugs directly into the HDMI source device, such as a Blu-ray player, PC or games console, then 2 x Cat6 cables run to the receiver unit, which plugs straight into the HDMI display - such as a TV, Monitor or Projector). Both network cables are required, and must be connected directly (they can't go through a network switch or patch panel).
-Benefits over a single HDMI cable include the ability to work with existing network cables, and the ability to run networks cables through smaller spaces or conduit that long HDMI cables can't fit into.

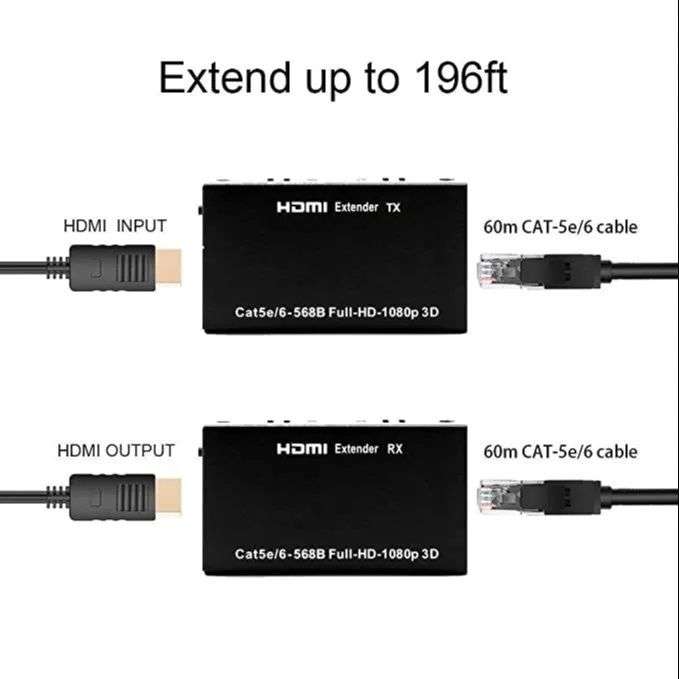

-The Single Extender use single cat-5E or cat-6(recommended)cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.
Features
-This HDMI Extender has many features that enable it to perform in a superior manner. Among these features you will find:
-One pair as a full functional module, no need of setting.
-CAT 5e/6 cable can substitute HDMI cable in order to achieve long distance transmission.
-Follow the standard of IEEE-568B
-Transmission distance can be up to 60 meters for 1080p using CAT 6 cable.
-Compact size.
-Support HDMI 1.4 protocol
-Support full 3D
-HDCP 1.2 protocol compliant
-Support video input:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
-Signal transmission:single cat-5e or cat-6(recommended)cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender.
-Support video output:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
-Support CEC
-Audio format support:DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
-LED indication: when power is supplied or device is working, LED relative to is light.
-Need DC5V power supply
What's in the box
1 x HDMI Extender 60M
