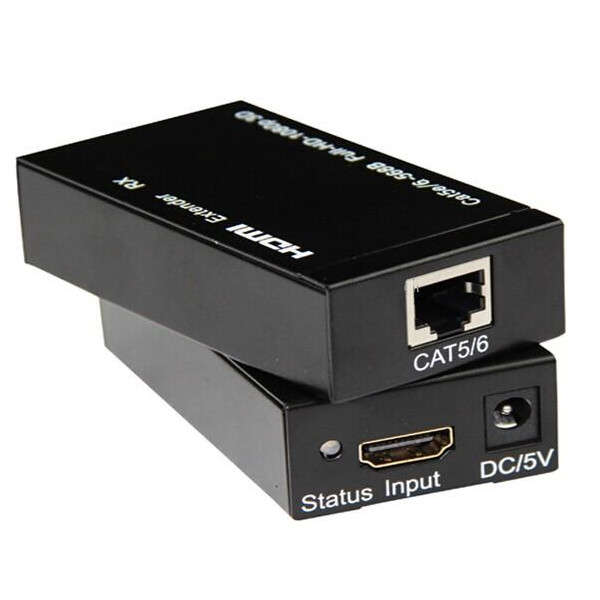

60m HDMI Extender over single CAT5e/Cat6 cable

Easily extend a high-definition signal using a single Cat5e or Cat6 cable
The HDMI 1.4 Cat5e/Cat6 Extender lengthens long distance HDMI (high-definition multimedia interface) transmissions from HD DVD or Blu-ray player, satellite receiver, digital recorder, set-top box, game console and other HDMI sources using a single Cat5e or Cat6 cable.

Flexible solution for many A/V applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the HDMI 1.4 Cat5e/Cat6 Extender boosts and extends a 1080p signal up to 60m for convenient display or projector placement.

Quality construction and easy installation
Fully HDCP compliant with HDMI 1.4, HDCP 1.0, 1.1 and DVI 1.0 ensures that the HDMI 1.4 Cat5e/Cat6 Extender provides long, reliable service in many installations. Quickly connect a Cat5e or Cat6 cable (not included) and the power supply to complete an affordable extended HDMI application.

FEATURES

• Delivers a sharp, clear signal from DVD and Blu-ray players, set-top box, satellite receiver and other sources
• Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
• Cat5e cable substitutes HDMI cable to achieve long distance transmission
• Supports the video amplifier bandwidth up to 1.65 Gbps for 1080p display
• Easy to install -- requires no configuration
• Supports 3D Video

SPECIFICATION

Specification:

• HDMI 1.4
• HDCP 1.0 / 1.1
• DVI 1.0
• CE
• FCC
• UL

General:

• Cat5e/Cat6 cable 1080p at 60m
• Power: 5 V DC / 2 A

Connections:

• (1) HDMI female (input/output)
• (1) RJ45 female (output/input)

Signal input/output:

• Input video signal: 0.5 - 1.0 V p-p
• Input DDC signal: 5 V p-p (TTL)
• Maximum single-link range: 1920 x 1200, 1080p
• Output video: HDMI 1.4, HDCP 1.0 / 1.1, DVI 1.0
• Frequency: 1.65 Gbps / 140 MHz

Video resolutions:

• VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200
• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

Physical:

• Dimensions: 45 x 25 x 81 mm
• Weight: 246 g
