Description: 60pcs Air Plasma Cutting Cutter Consumables Extended Fit PT31 LG40 Torch CUT-50D The consumables can work with ESAB/L-TEC PT-31, JG-40 and WSD-LG40 Cutting Torch, hese torches for Plasma cutting machines such as CUT-40, CUT-40D,LGK-40, CT312, CT312D,CT416,CT416D,CT518, CT518D, Super160, Super160P etc.
Specifications: Material: Ceramic + Metal Rated welding current: 40A Max Cutting thickness: 12MM

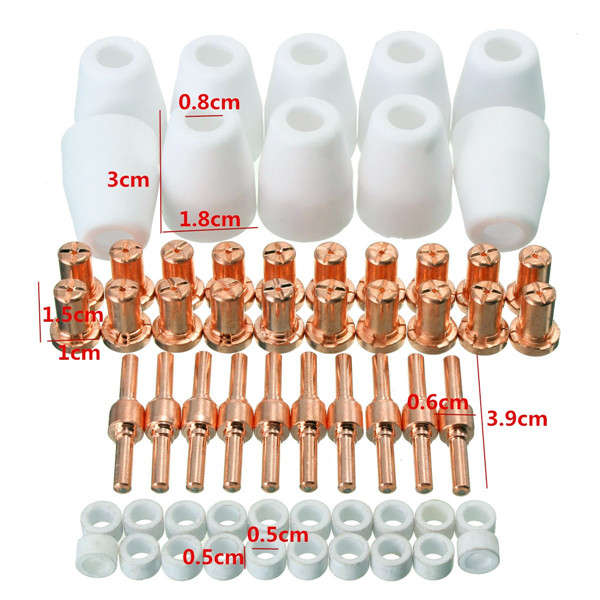

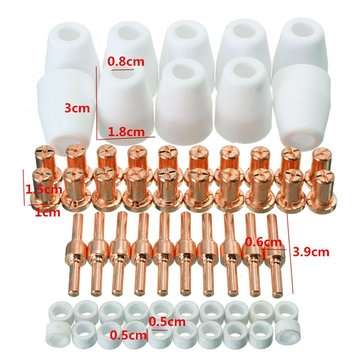

Suitable For: PT-31 and LG-40 cutter torch Sizes: Ceamic nozzles: Total length 30mm, bottom inner diameter about 19mm, inner diameter on the top about 9mm

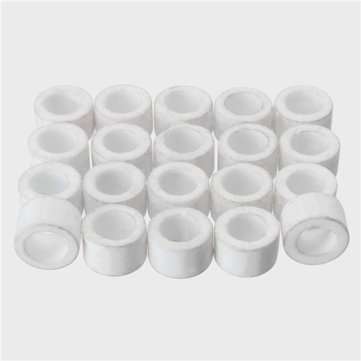

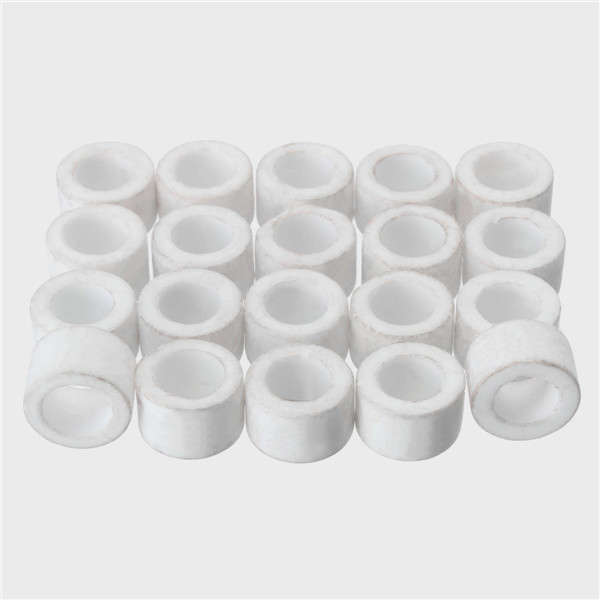

Vortex rings: Total length 5mm, inner diameter about 5mm

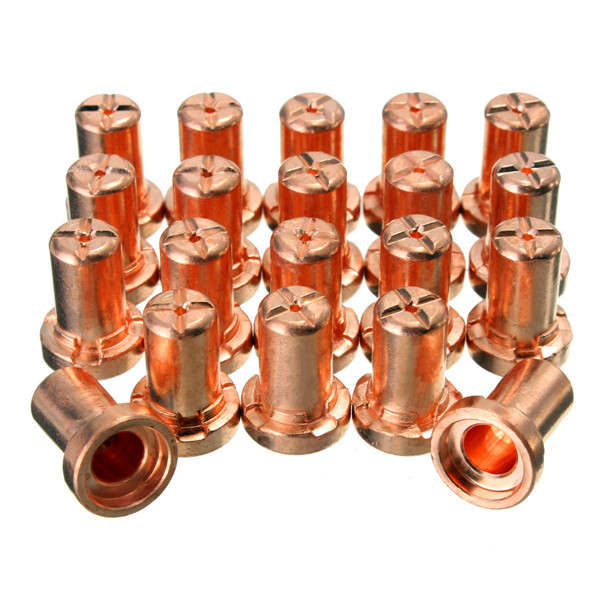

Nozzles: Total length 15mm, bottom inner about 5mm, bottom outside about 11mm.
Electrodes: Total length 39mm, shank diameter about 3.5mm.

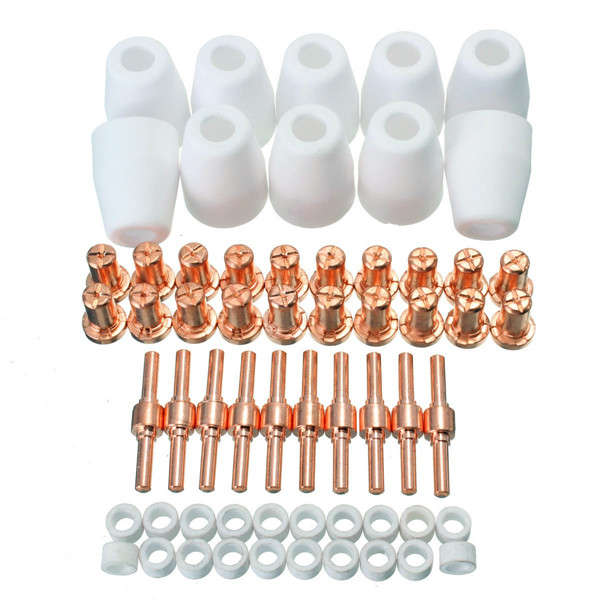

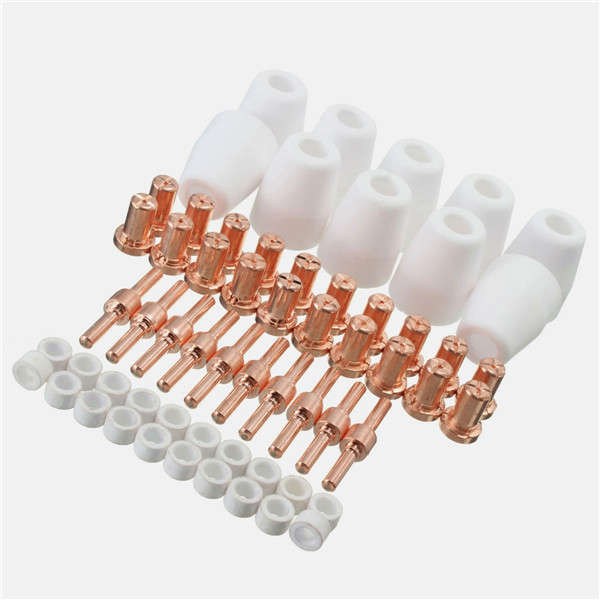

Packing Included: 20 x Nozzle 10 x Electrode 10pcs x Shielded-Cup 20pcs x Gas Ring More Details:
