Digital LCD Display DC 0-60V 0-100A power watt meter battery checker V A W Wh Ah is available now from our US  warehouse
Excelent shipping to US in 3-6 business days
ship to Canada, Brazil in 7-10 days

Description :
60V 100A Digital LCD Display Voltage Current Power Battery Analyze
Digital LCD screen gives clear crisp number readings.
Handles up to 100 amps intermittently and 50 amps continuous duty.
Connecting load end to the battery provides real-time battery charging reading.
Handles 0 to 60 volts. Works on 12, 24, 36, and 48 volt battery bank systems.
Extremely low power consumption of 7 mA. More efficient than any LED meter.
Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).
Accurate & precise 0.01 A current and 0.01 V voltage resolutions.
Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag).
Rugged- handles 50A continuous and 100 A peak at 60V.
Acts like a wire so doesn't affect model's performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA.
USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.
Specifications :
Color : Blue
Voltage : (0)V-4V-60V  0.01V (Resolution).
Current : 0-100 A peak 0.01A (Resolution).
Power : 0-6554 W 0.1W (Resolution).
Charge : 0-65 Ah 0.001Ah (Resolution).
Energy : 0-6554 wh 0.1 Wh (Resolution).
Measurement Update period : 400mS.
Signal Sampling Rate : sample/s.
Data Queue Sequence time : 2 seconds.
In Circuit Resistance : 0.001 Ohms.
Operation Current : 7 mA.
Auxiliary Power Voltage : 4.0V ~ 60V
Size : 8.3 x 4.7 x 2cm / 3.27 x 1.85 x 0.79inch
Display Screen : 1602 STN LCD
Package included :
1 x Digital LCD Battery Analyze
1 x Manual

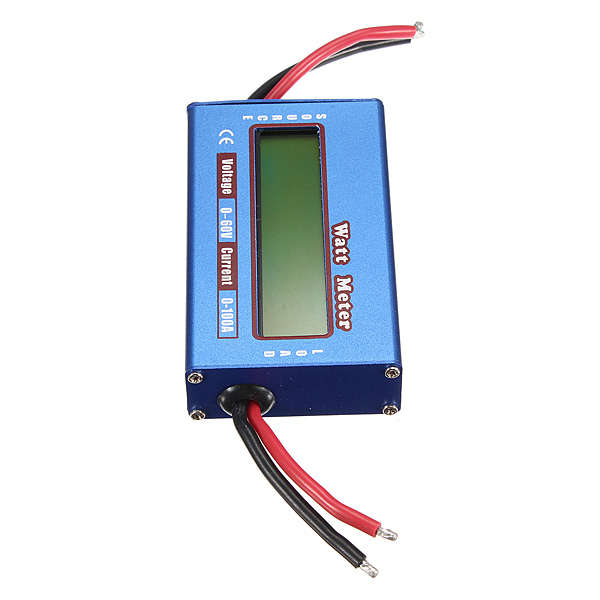

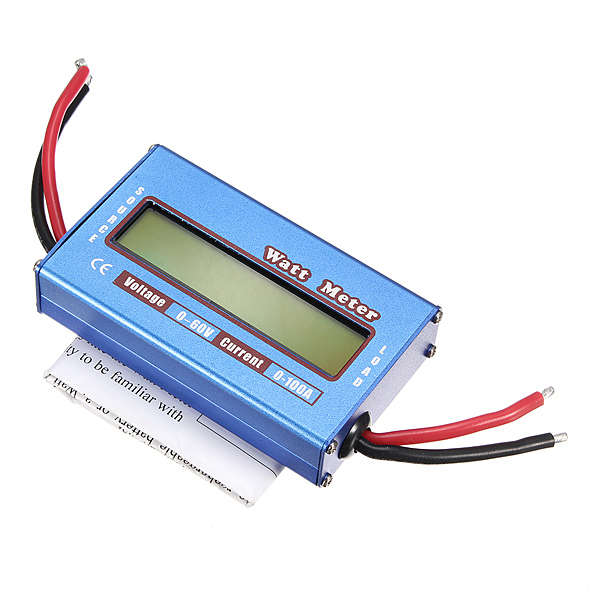

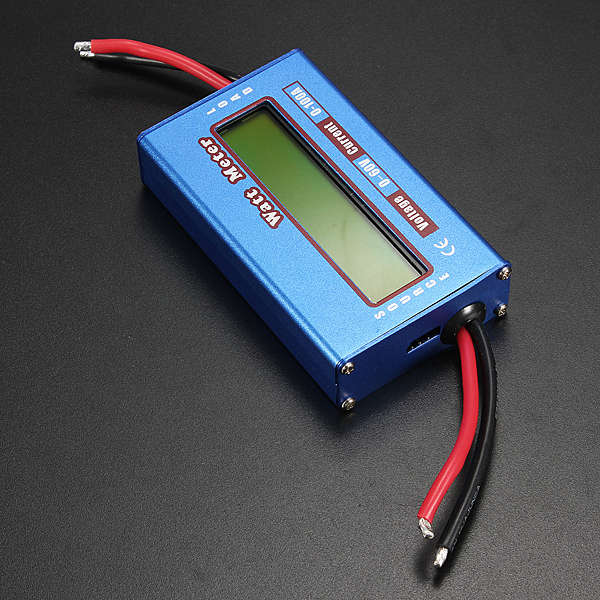

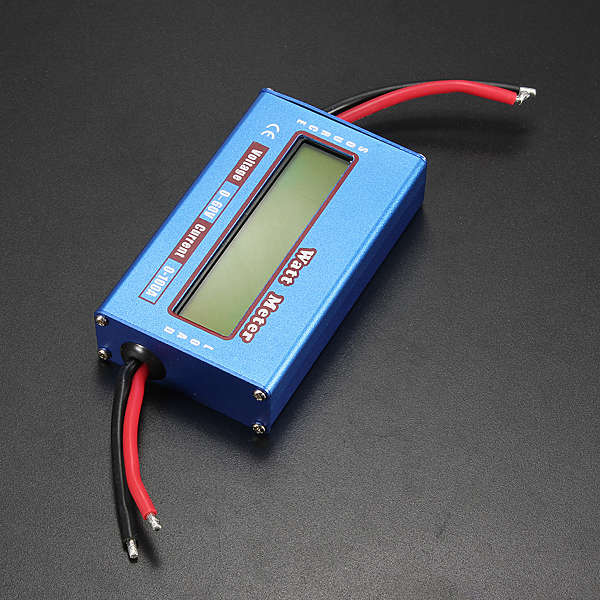

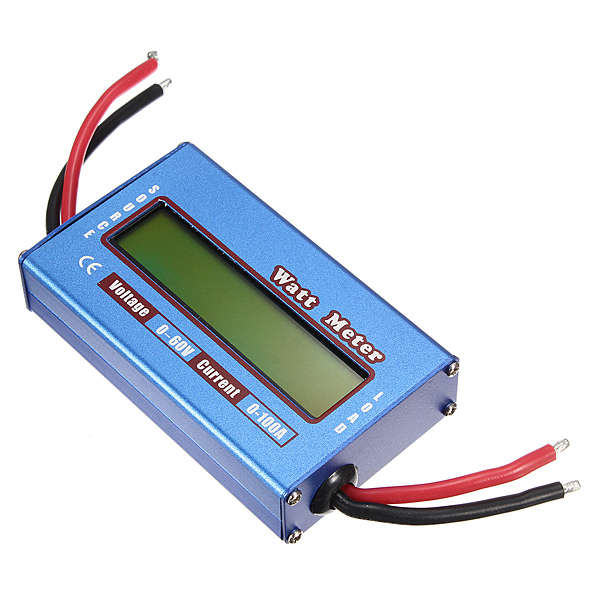

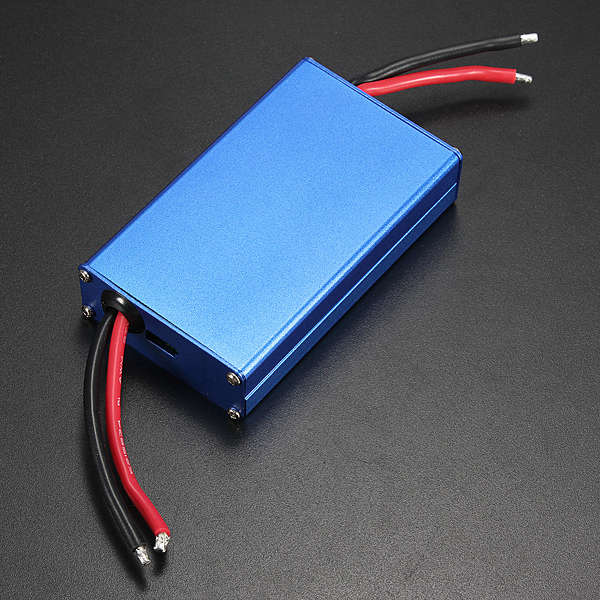

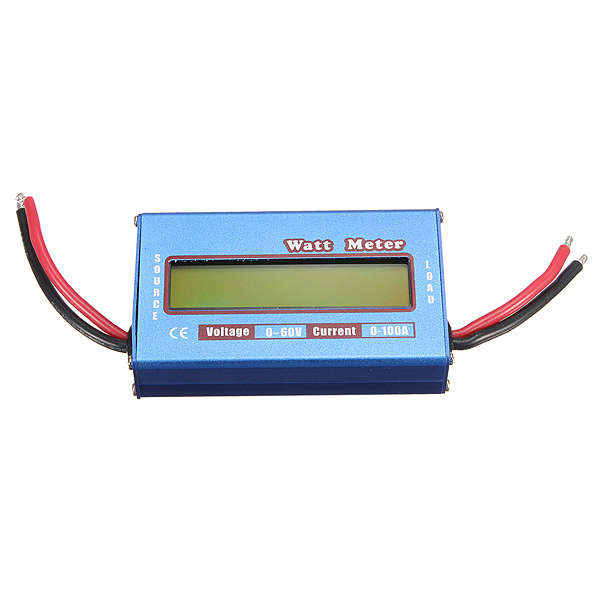

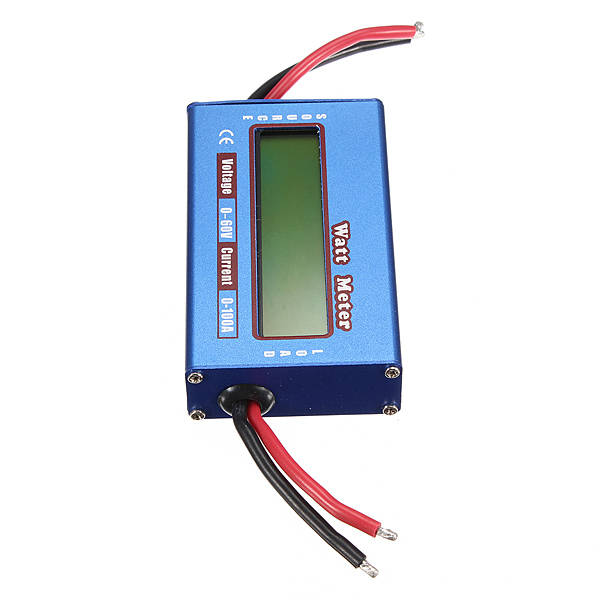

Details pictures :
