630-088 EIM Generator Module Engine Interface Module Engine Parts For Genset 12V

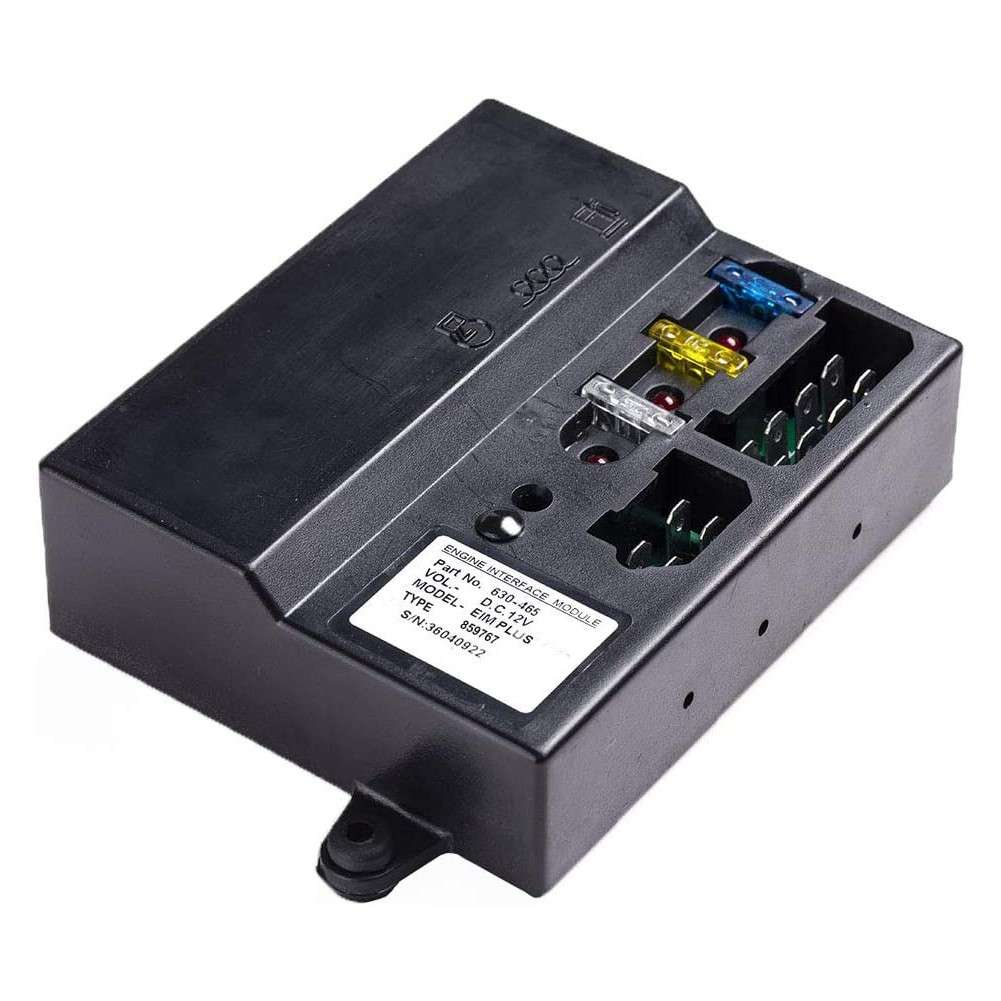

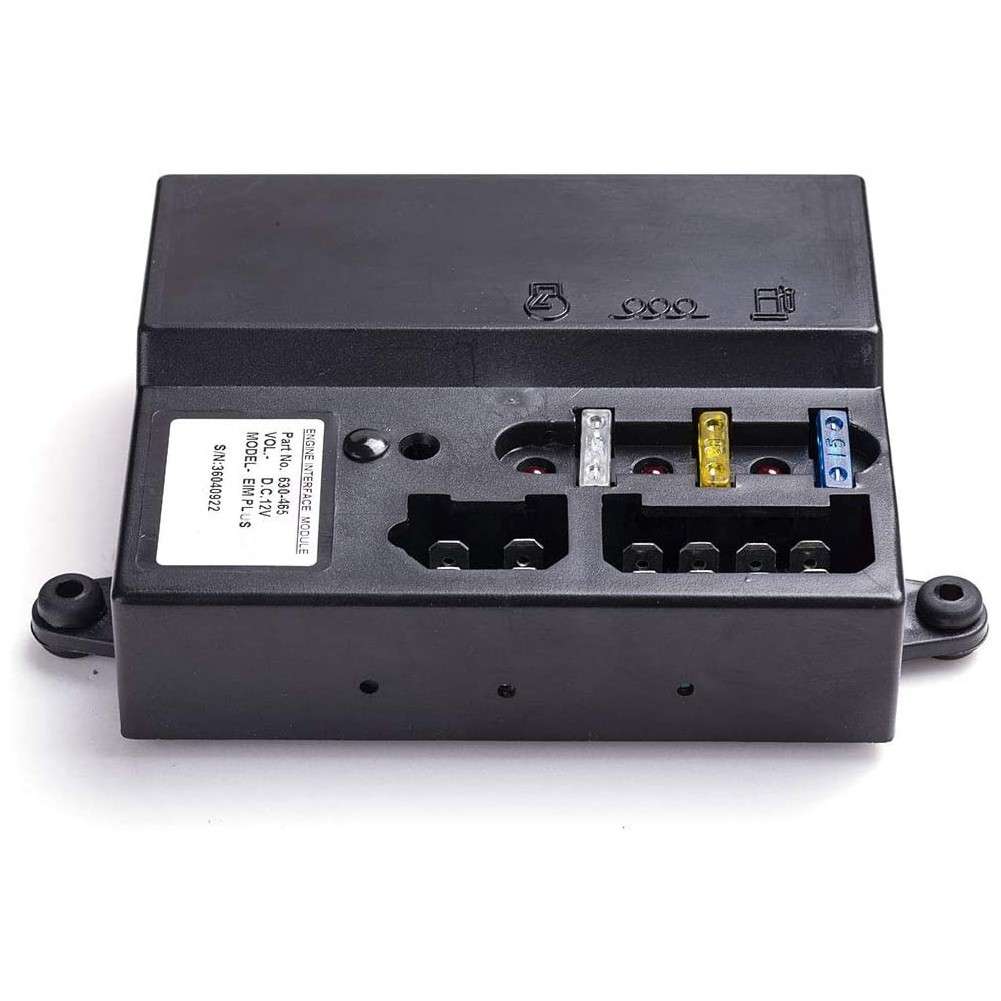

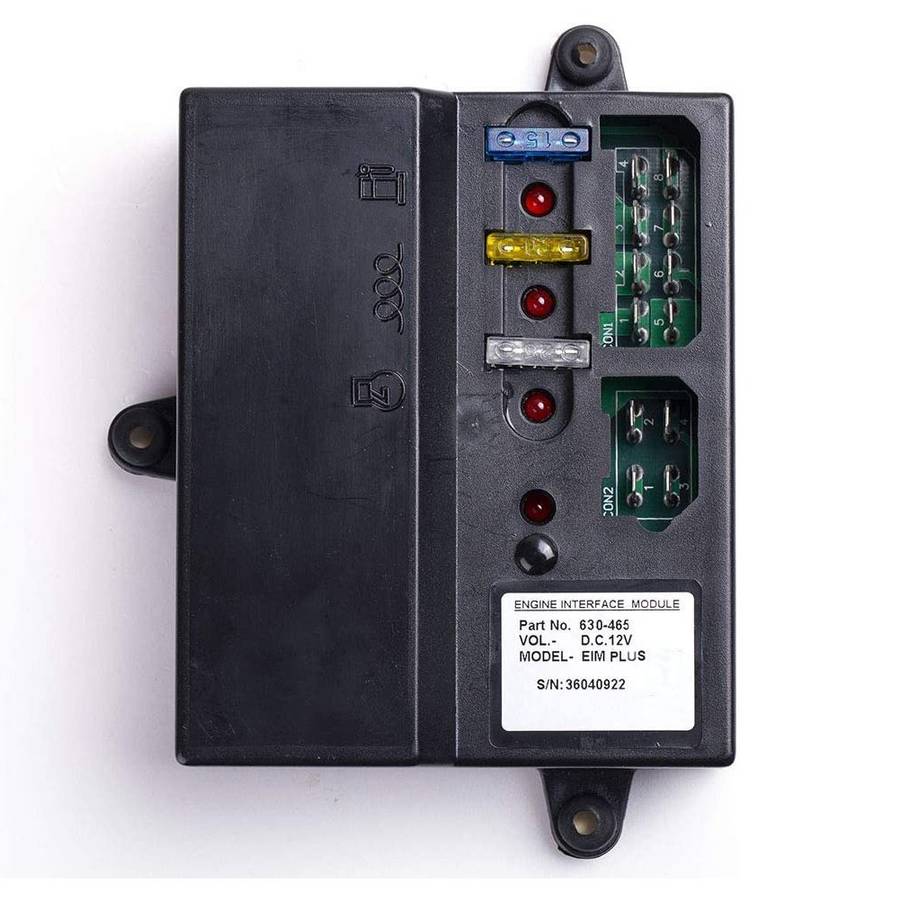

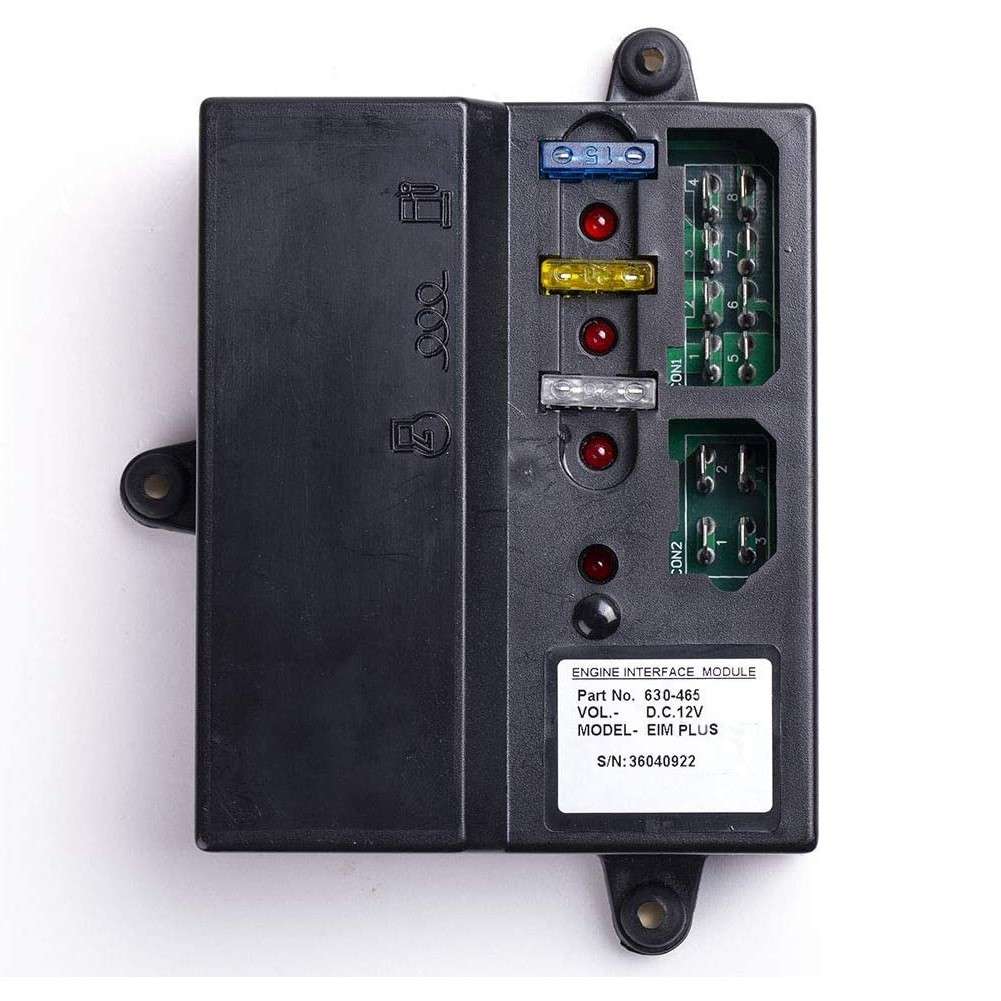

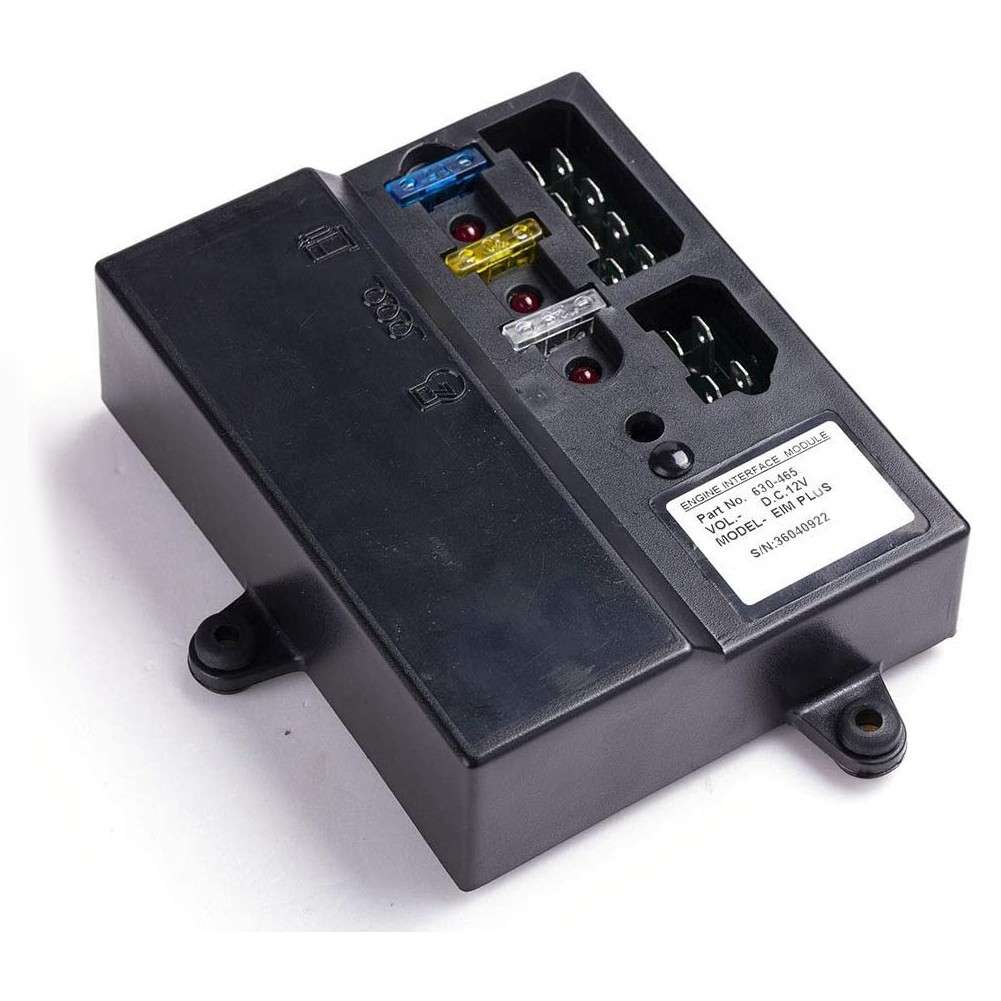

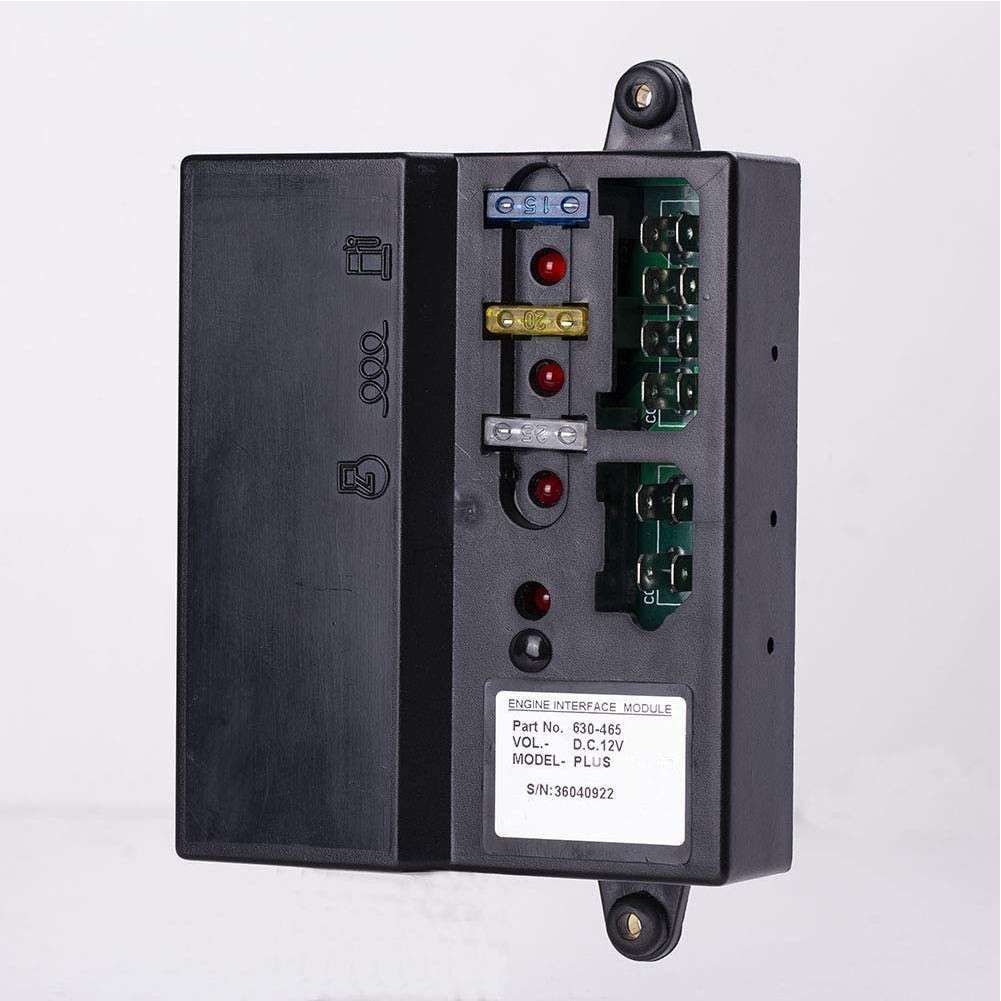

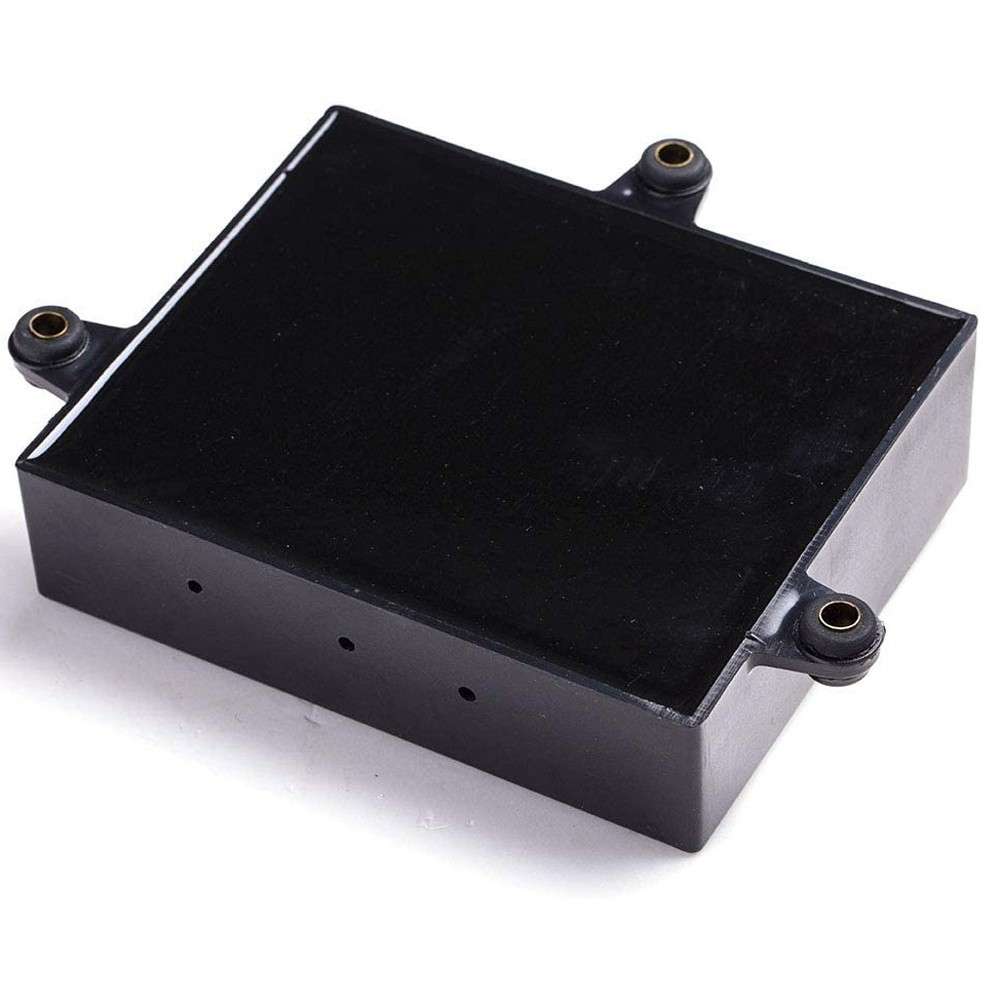

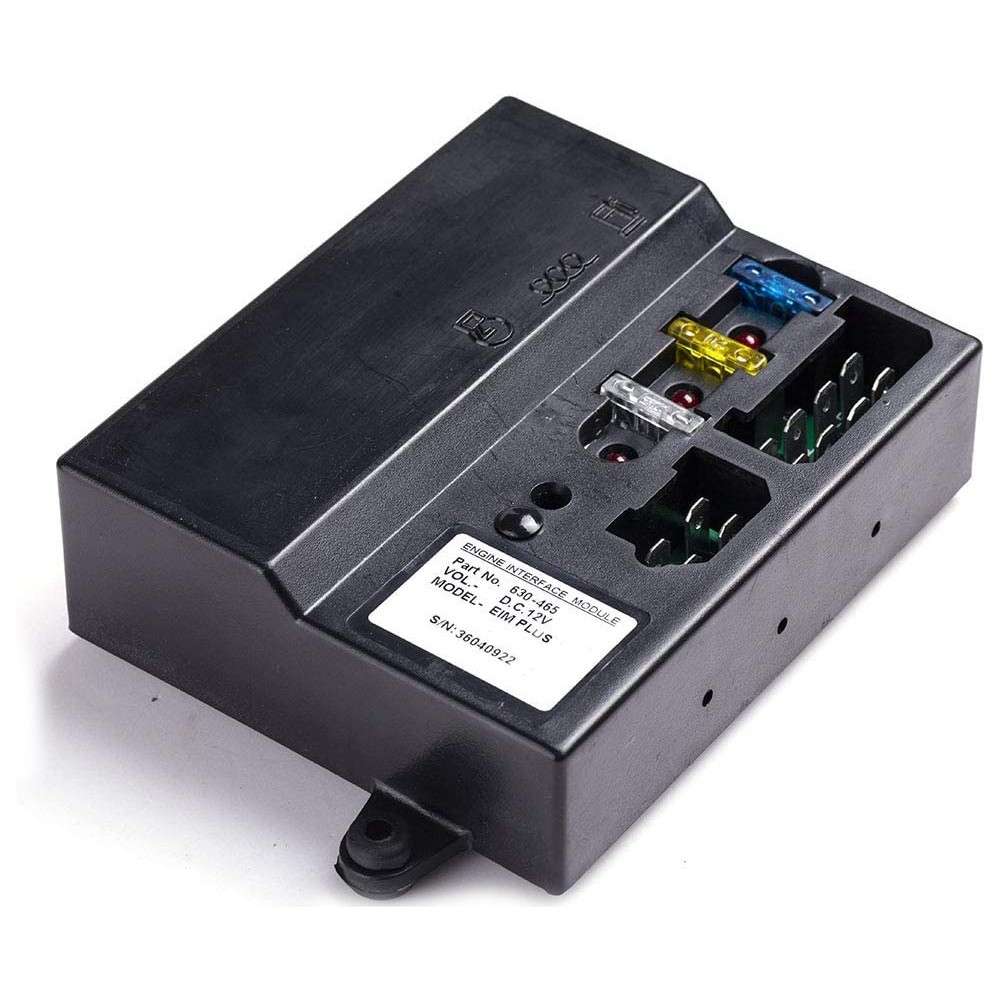

630-088 EIM Generator Module Engine Interface Module Engine Parts For Genset 12V DESCRIPTION Product Description: brand new high quality Made of high quality material, 630-088 EIM (formerly 630-465) interface 630-465 for Genset 12V 630-088 EIM formerly 630-465 The engine interface module is a sealed engine mounted module that provides switching relays for the starter motor solenoid, glow and fuel solenoid. Using the EIM 630-465 PLUS means that high currents such as fuel solenoid power are isolated from the control panel, allowing for individual for protection of each circuit. Engine interface moduleEIMPLUS630-46512V controller for generator control EIM630-465 EIM630-088 630-088 application: 630-088 EIM (formerly 630-465). Interface 630-465 for generator set OLYMPIAN-MASSEY for FERGUSON 12 V. Generator set OLYMPIAN-MASSEY for FERGUSON 12V how to install ? Make sure the MPU (Magnetic Pickup) is installed correctly. Unscrew and pull out the magnetic pickup located near the engine flywheel Check the magnetic tip and make sure it is clean and of debris. Screw in the MPU until the tip touches the top of the flywheel teeth. Back the magnetic pickup 1/2 to 3/4 turn. Turn the ten-turn potentiometer five to seven turns clockwise, or until you feel a slight click, representing the full span of the potentiometer. Start the genset and you will notice the overspeed calibration LED illuminate. Slowly turn the potentiometer counterclockwise until the LED just goes off. Once the LED goes off, start slowly turning the potentiometer back clockwise until the LED starts blinking. The engine interface module is a sealed engine mounted module that provides switching relays for the starter motor solenoid, glow and fuel solenoid. Each of these circuits is protected by individual automatic fuses mounted in the module. Individual LEDs light up when each circuit is powered, and in addition, these LEDs are of great help in finding faults. The module is mounted on the engine with anti-vibration mounts and is easily connected to the engine with a . Using the EIM 630-465 PLUS means that high currents such as fuel solenoid power are isolated from the control panel, allowing for individual for protection of each circuit. Package Included: 1 * generator module Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
