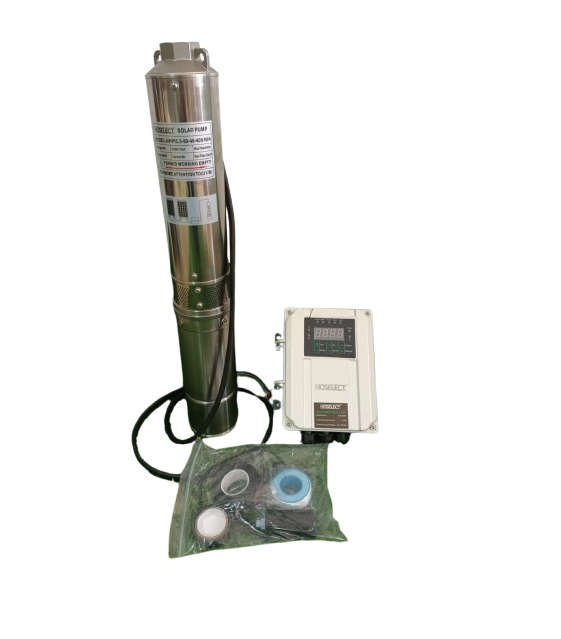

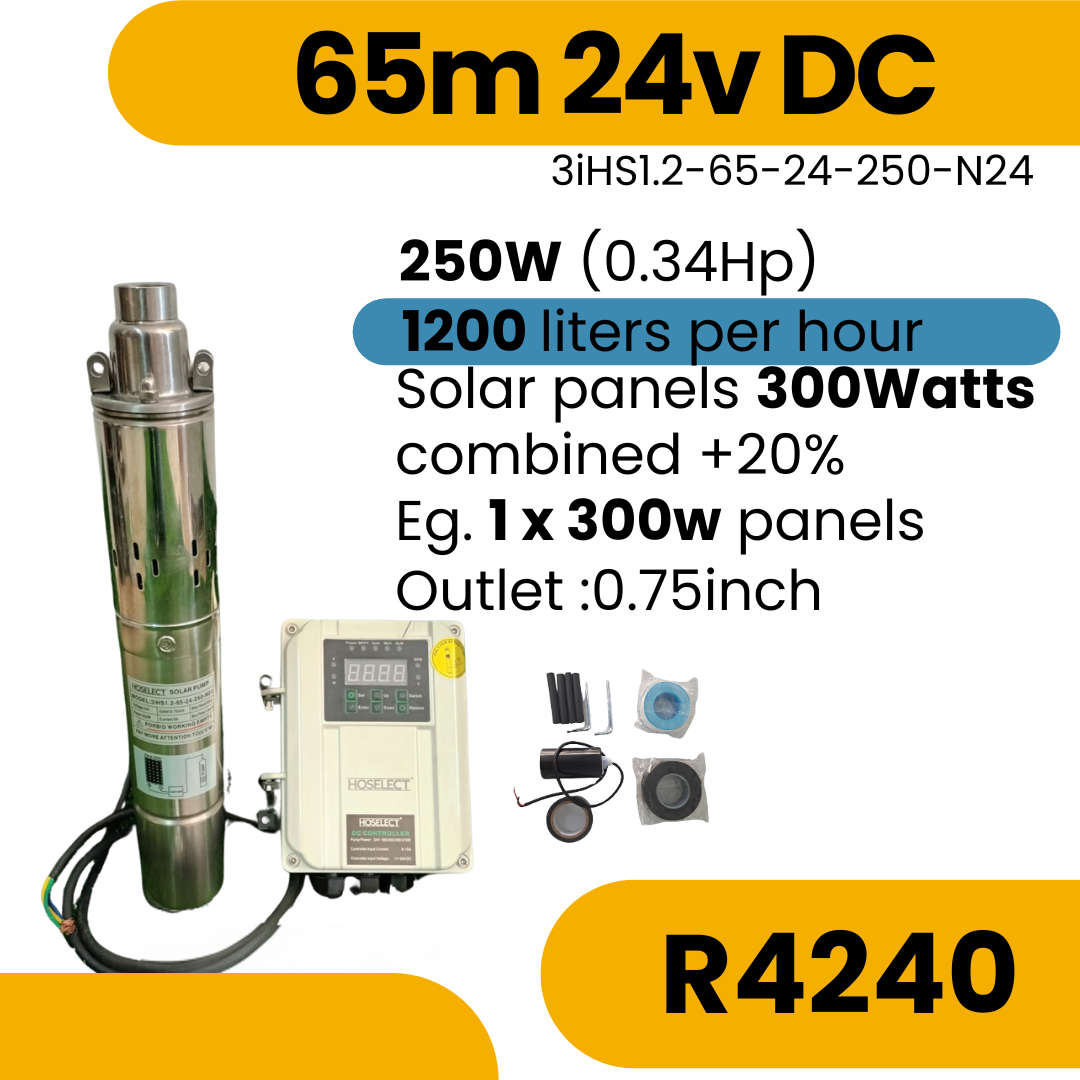

65m 24V DC Solar Borehole Pump

Max Head: 65m

Max Flow 1200 liter per hour (at 65m head)

24v

250W (0.34Hp)

 This pump needs 300watts of solar panels combined.**

Eg. 1x 300watt panels

**We suggest you go 20% bigger since most solar panels on the market in South Africa is around 23% less power than what it tells you on the lable.

Solar panels sold separately.

Energy supply:

1. Solar panels (DC)

2. Battery (DC)

Why you should choose this borehole pump.

* They sport a brushless permanent magnetic motor, which means efficiency is improved by 20%-40%,

* The frequency conversion and controller is outside

* Soft start running, make motor life longer

* Powered by DC   (DC power include: solar panel and battery)

* Comes with an MPPT controlled, to maximize the energy you get from the sun even on cloudy days

* Reverse protection

* Locked rotor protection

* Over current protection

* Low water level sensor protection built-in

* High water level sensor

What comes in the box

-Borehole Pump

-Controller

-Water level sensor (for your tank/dam)

-User manual

-Accessories (sealers & tape)
