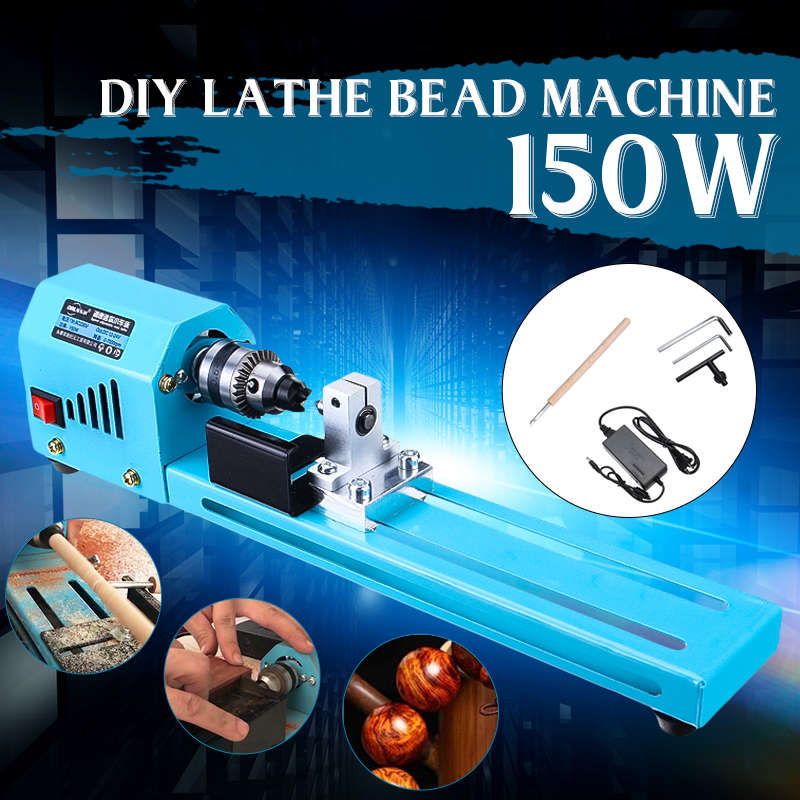

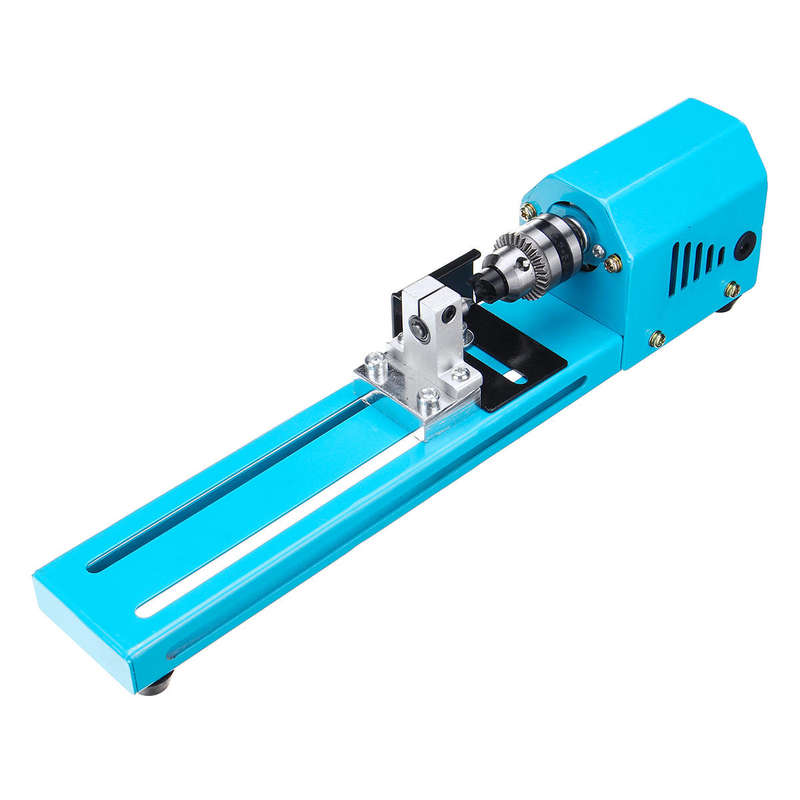

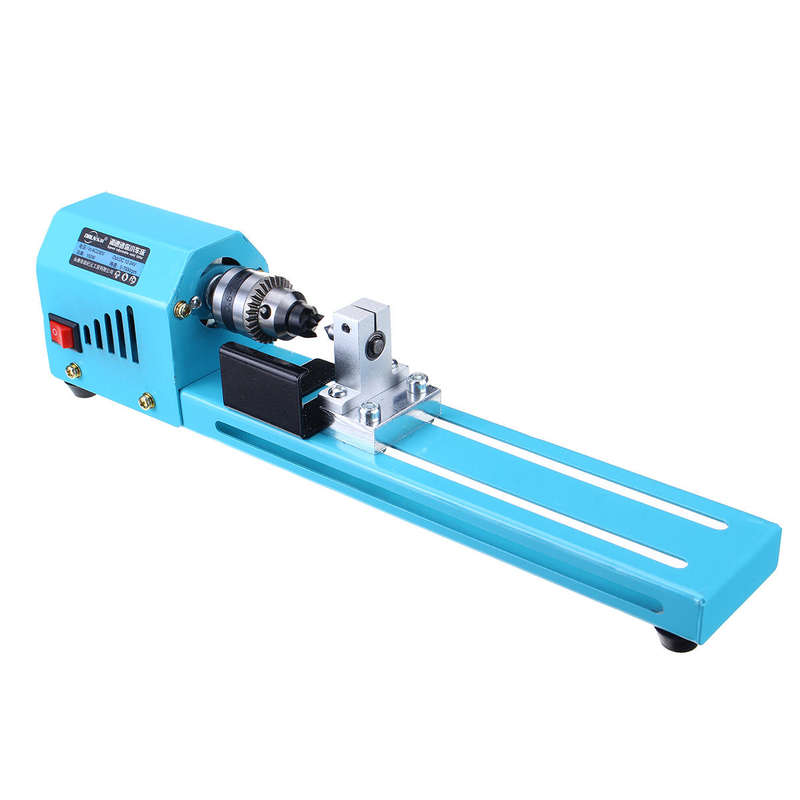

68Pcs 150W Mini Beads Machine Lathe Standard Woodworking DIY Rotary Cutting Tools Set
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Specifications:
Main material: Aluminum alloy
Color: Blue
Voltage Input: AC 230V 50/60Hz
Voltage Output: DC 12-24V
Rated power: 150W
Rated speed: 4000-7000RPM
Power: 7 level of adjustable speed
Max Processing length: 145mm / 5.7in
Max Processing diameter: 50mm / 2.0in
Chuck clamping range: 0.6-6.5mm / 0.02-0.26in
Swing diameter: max 50mm / 2.0in
Grip length: max 140mm / 5.51in
Matching saw blade diameter: max 50mm / 2.0in

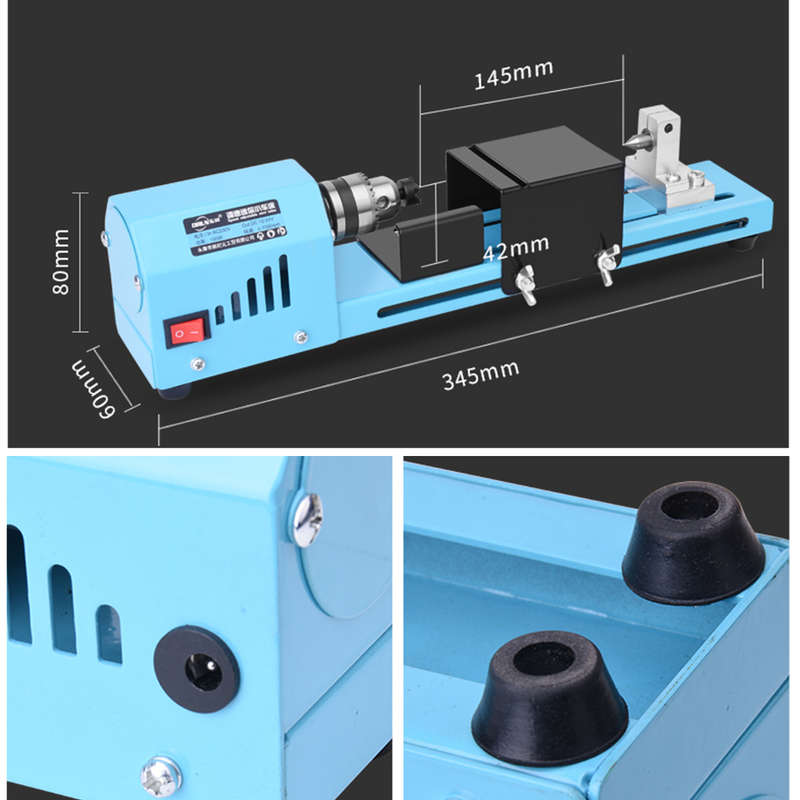

Machine size: 345*60*80mm / 13.6* 2.36 * 3.15in

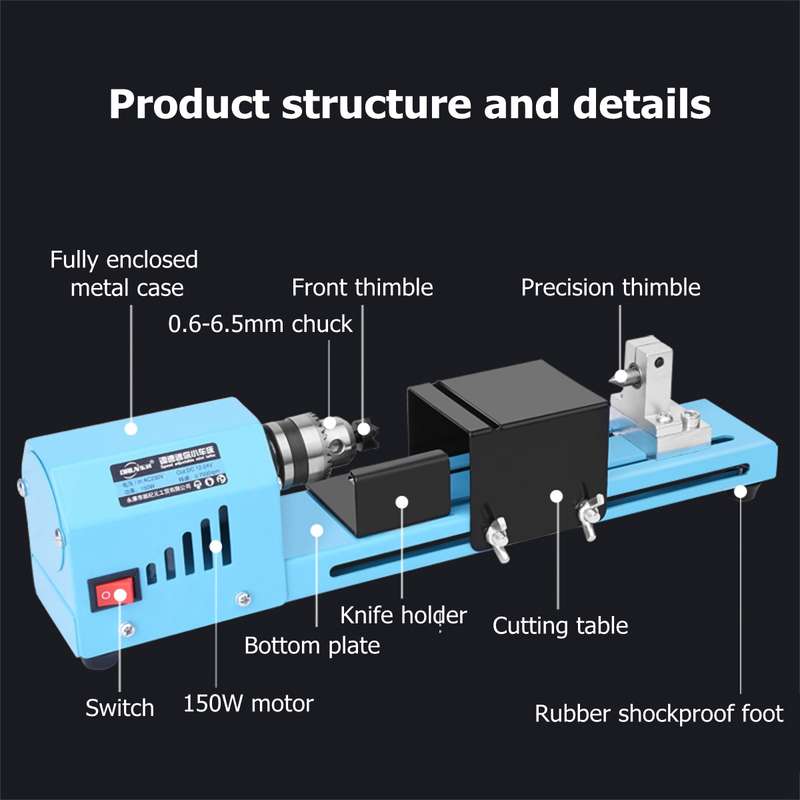

Features:
1. Specially designed for the home DIY enthusiasts, small and portable size with strong power.

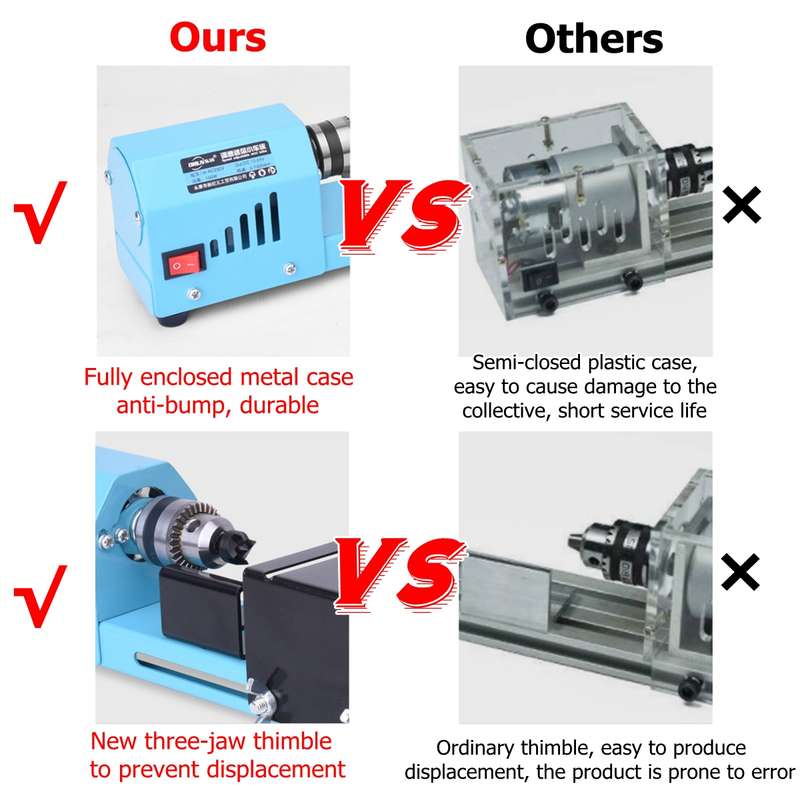

2. Stainless steel dustproof cover with super convective cooling hole.
3. The welding line is covered with a full heat shrinkable tube.
4. With 7 levels of power adapter enable you to adjust the rotating speed easily to meet different cutting speed.

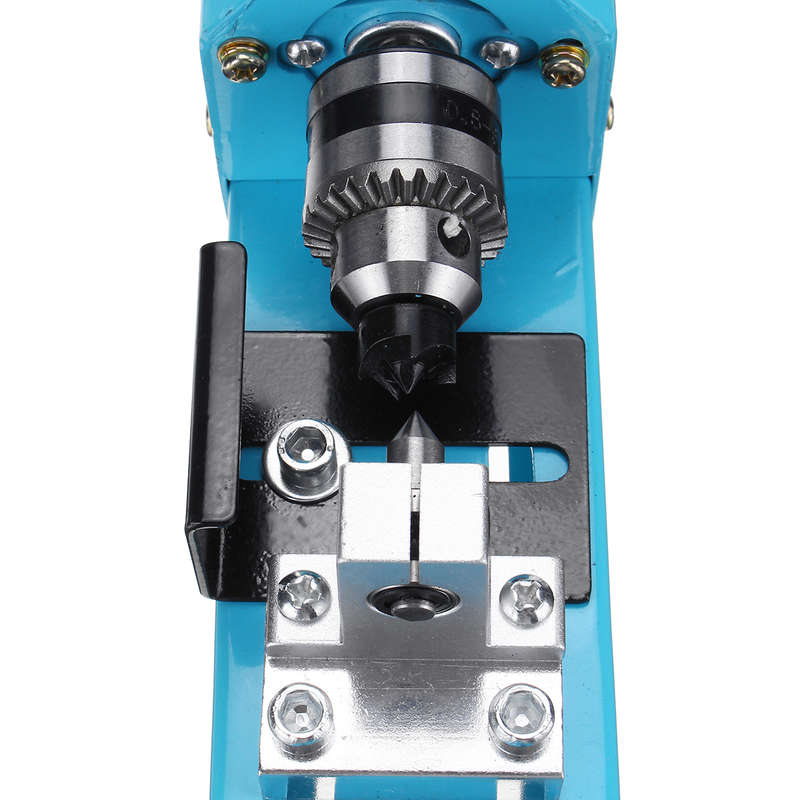

5. High quality aluminum alloy base and pure steel structure drill chuck.
6. Super large torque ball bearing motor, maximum rotating speed up to 7000RPM providing ultra strong cutting power with low noise, you can use it at home.
NOTE:

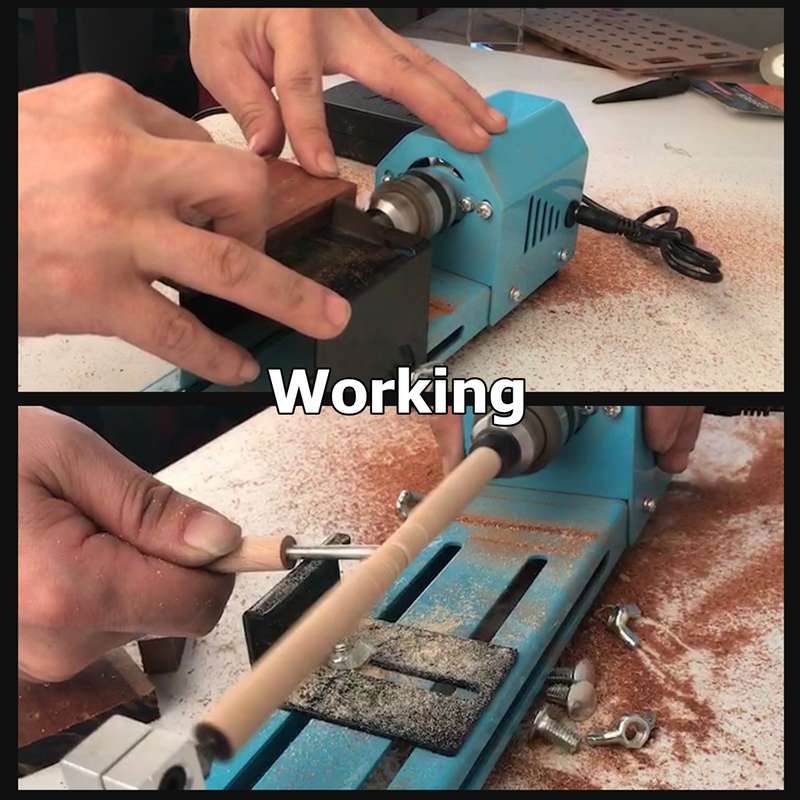

1. If the user does not have lathe base experience, when using, uses should follow: low speed, slowly, cautiously and use other security operations.
2. The speed can be adjusted in 4000-7000RPM, speed of cutting wood should not exceed 5000, grinding can use higher speed.

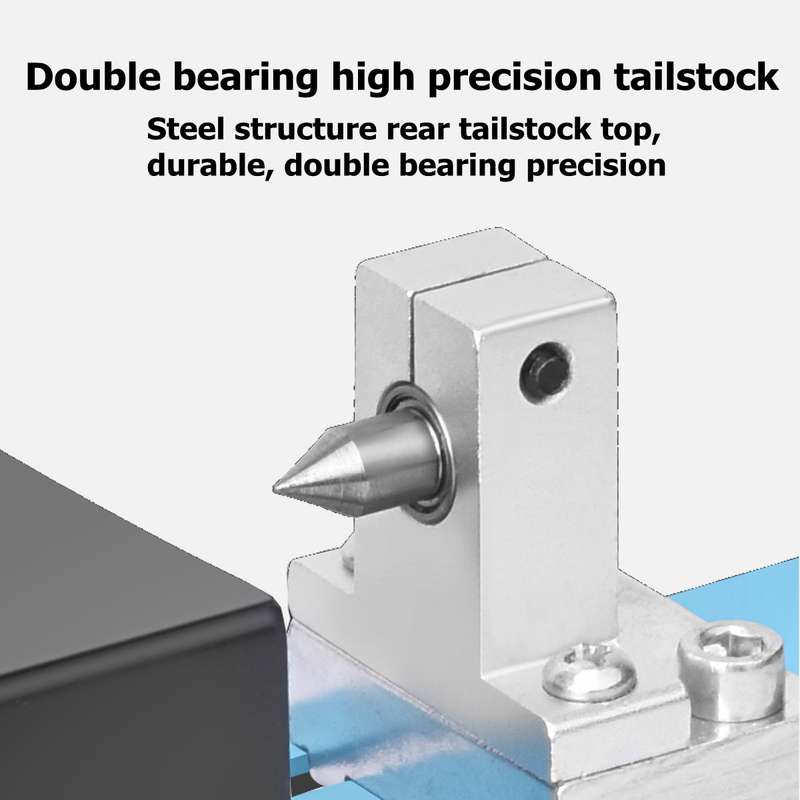

3. Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4. If not a cylinder, the speed should be reduced.
5. Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1-1.5cm.
7. If you do not really understand the operation, it is best to consult a professional person.

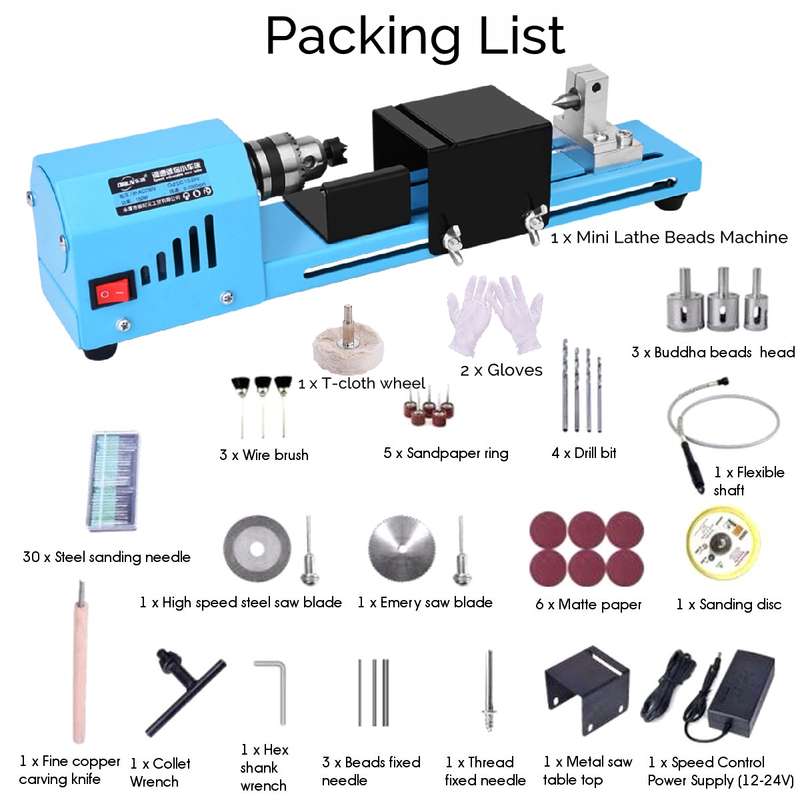

Package lncluded:

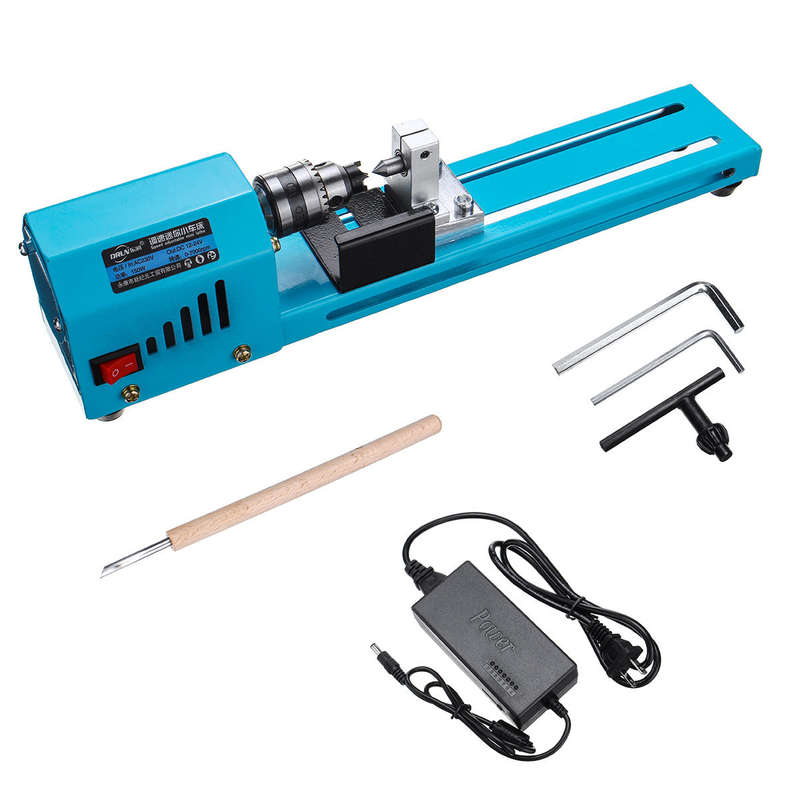

1x Mini Lathe Beads Machine
1x Speed Control Power Supply (12-24V)
1x Fine copper carving knife
1x Thread fixed needle
3x Beads fixed needle (1.5/2.0/2.5mm)
1x Hex shank wrench
1x Collet Wrench
1x Metal saw table top
30x Steel sanding needle
1x High speed steel saw blade
1x Emery saw blade
6x Matte paper
1x Sanding disc
1x Flexible shaft
4x Drill bit
5x Sandpaper ring
3x Wire brush
3x Budd-ha beads head
2x Gloves
1x T-cloth Wheel
