6966 DIY Bluetooth 5.0 Audio Receiver Board Module MP3 Lossless Player Wireless Stereo Music Ampl...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
International
Product code:
DIY0156B
Bob Shop ID:
602482463
Features
1. Using Bluetooth 5.0 main control chip, good transmission effect and high stability

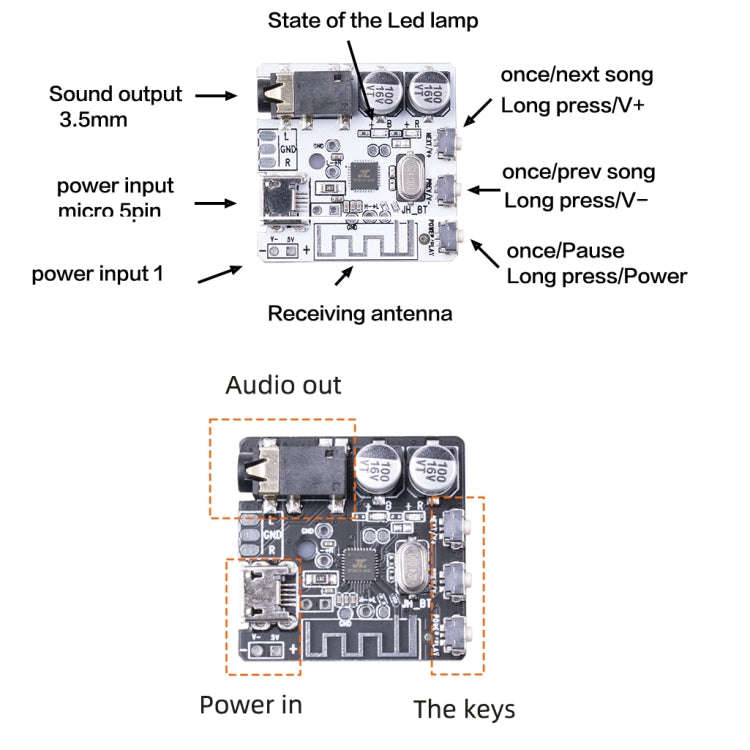

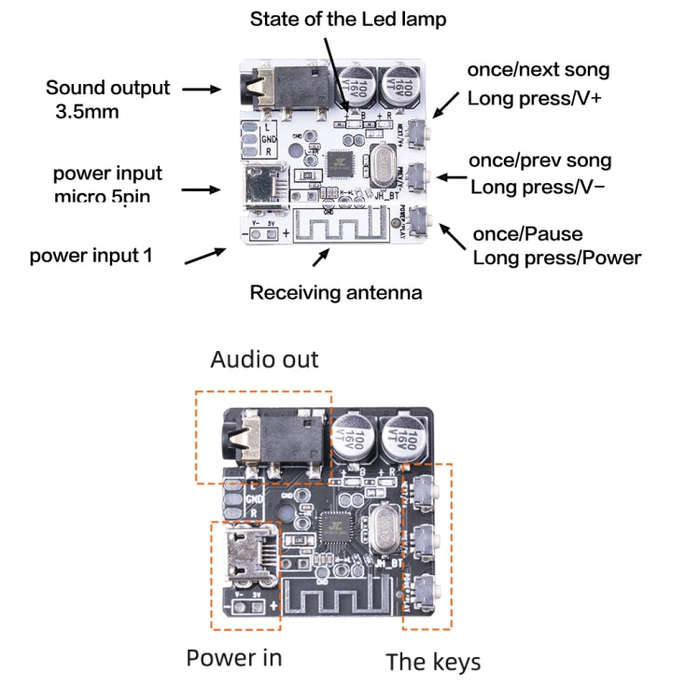

2. With button control, there are control up and down music, volume addition and subtraction, playback, pause, switch machine, etc., and reserved high and low level control interfaces, regardless of daily use, and DIY modification, it is very playable
3. Micro 5 Pin interface power supply, ordinary mobile phone charger charging cable can be used.

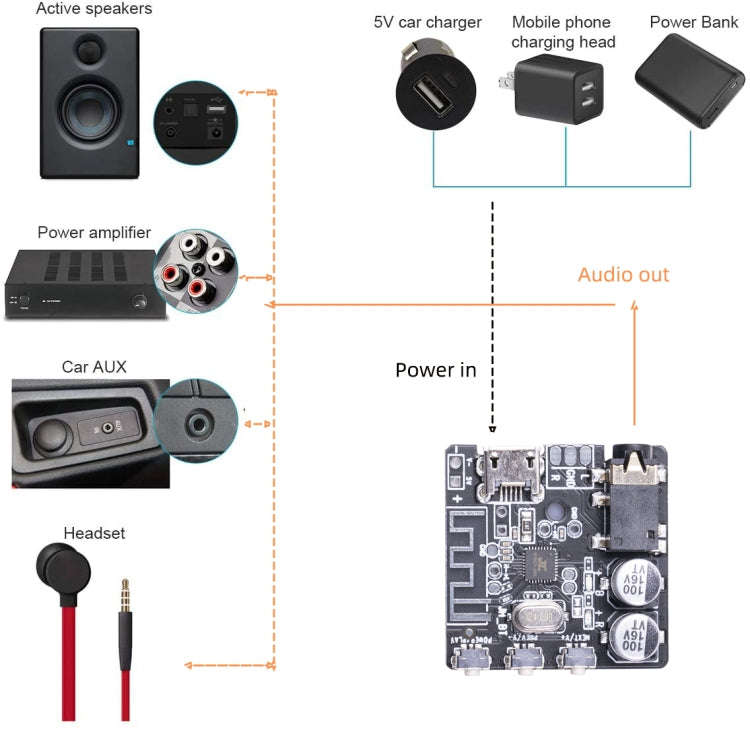

4. Product use: Bluetooth audio signals from mobile phones, laptops, and tablets can be transmitted to power amplifiers, active speakers and other devices through this Bluetooth audio receiver. The audio interface can also be connected to ordinary headphones with a 3.5mm interface. The headset becomes a Bluetooth headset (without a microphone, voice chat is not supported)
Specification
1. Power interface: Micro 5 Pin (reserved 2.5mm welding port, this model does not support battery power supply)
2. Input voltage: 3.7V-5V
3. Signal-to-noise ratio: 90DB
4. THD+N: -70DB
5. Crosstalk: -86db
6. DNR: 91dB
7. Transmission protocol: A2DP/AVCTP/AVDTP/HFP
8. Transmission distance: about 10 meters (the shorter the distance, the better the stability)
9. Output interface: 3.5mm stereo (reserved soldering points, you can DIY by yourself)
10 Dimensions: 30mm x 30mm
1. Using Bluetooth 5.0 main control chip, good transmission effect and high stability
2. With button control, there are control up and down music, volume addition and subtraction, playback, pause, switch machine, etc., and reserved high and low level control interfaces, regardless of daily use, and DIY modification, it is very playable
3. Micro 5 Pin interface power supply, ordinary mobile phone charger charging cable can be used.
4. Product use: Bluetooth audio signals from mobile phones, laptops, and tablets can be transmitted to power amplifiers, active speakers and other devices through this Bluetooth audio receiver. The audio interface can also be connected to ordinary headphones with a 3.5mm interface. The headset becomes a Bluetooth headset (without a microphone, voice chat is not supported)
Specification
1. Power interface: Micro 5 Pin (reserved 2.5mm welding port, this model does not support battery power supply)
2. Input voltage: 3.7V-5V
3. Signal-to-noise ratio: 90DB
4. THD+N: -70DB
5. Crosstalk: -86db
6. DNR: 91dB
7. Transmission protocol: A2DP/AVCTP/AVDTP/HFP
8. Transmission distance: about 10 meters (the shorter the distance, the better the stability)
9. Output interface: 3.5mm stereo (reserved soldering points, you can DIY by yourself)
10 Dimensions: 30mm x 30mm
