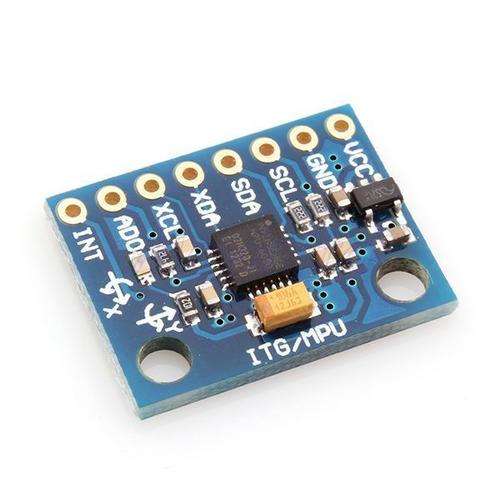

6DOF MPU-6050 3 Axis Gyroscope & Accelerometer Sensor Module for Arduino

MPU-6050 3 AXIS GYROSCOPE

& ACCELEROMETER SENSOR MODULE FOR ARDUINO

Product information
The MPU-6050 is a serious little piece of motion processing technology combining a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an on-board Digital Motion Processor capable of processing complex 9 axis MotionFusion algorithms. The MPU-6050 does away with the cross-axis alignment problems that can creep up on sensors using discrete parts. The sensor’s integrated 9-axis MotionFusion algorithms can even access external magnetometers or other sensors through an auxiliary master I2C bus allowing the device to gather a full set of sensor data without intervention from the system processor.

Specifications
Power supply: 3 – 5V
Gyroscope range: +250, 500, 100 or 2000 degree/sec
Acceleration range: +/- 2, 4, 8 or 16 G
Low power consumption - 0.5uA at 1Hz
I2C interface
Built in 16bit AD converter, 16bits of data output
Size: 21mm x 16mm

Package includes
1 x MPU-6050 3 Axis Gyroscope & Accelerometer Sensor Module Arduino
