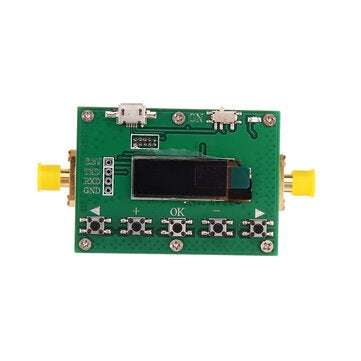

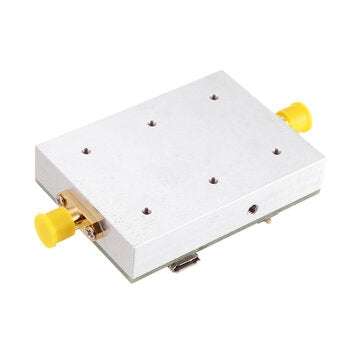

6G Digital Programmable Attenuator 30DB Step 0.25DB OLED Display CNC Shell RF Module

20 available / new

R1,043.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3519

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643370173

Feature:

The digital attenuator can adjust the signal level of the circuit in 0.25dB steps without interrupting the circuit. It can also be used as an in-machine attenuator for adjusting the power level in the test system. , High accuracy, stability and reliability, the use of OLED display attenuation, the attenuation can be controlled by the host computer. Technical indicators: 1. Working frequency: LF-6GHz 2. Attenuation adjustment range: 0-31.75dB 3. Attenuation step: 0.25 (dB) 4. Insertion loss: a1.5dB (the insertion loss at the high frequency end will be a little larger) 5. Standing wave ratio: a1.4 6. Attenuation accuracy: &pm; 0.25dB Max 7. Rated power: a1W 8. Connector form: SMA (female, outer screw inner hole) 9. Temperature range: -10 a ~+ 50 a (operation), -40 a ~+ 70 a (not operation) 10. Dimensions: 55X40X16.5mm (excluding SMA interface protruding part, SMA protruding part 9mm) 11. Weight: 57g 12. Input and output impedance: 50 ohms
Package includes:

1 x6G Digital Programmable Attenuator
1 x USB Cable
