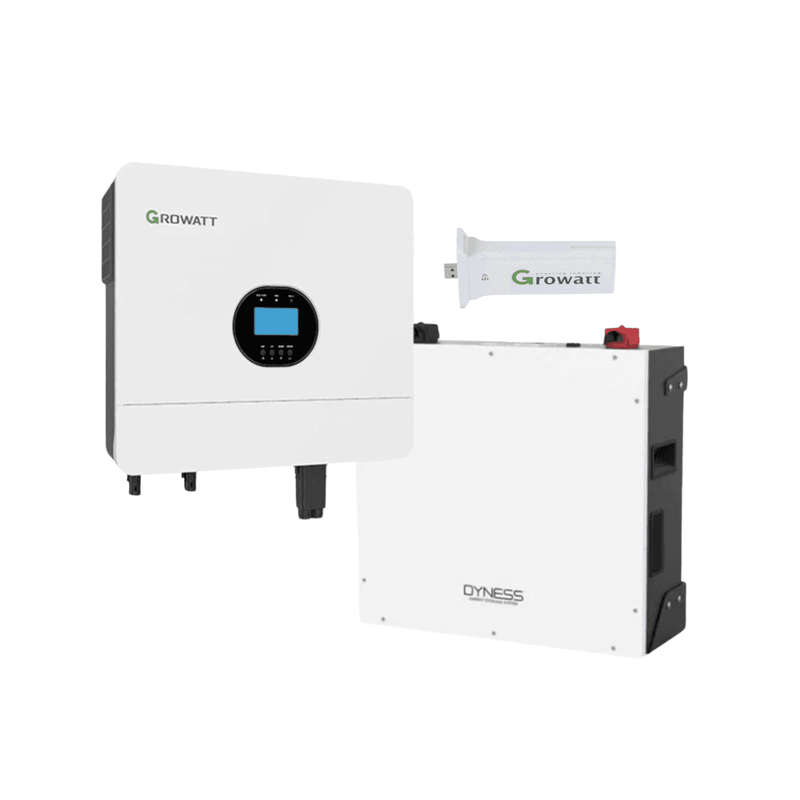

6KVA / 6000W Growatt MPPT 100A Hybrid Inverter (Parallel) + Dyness 5.12kWh Lithium Battery Solar Kit
Description:
The Growatt SPF 6000-ES-PLUS 6KVA Hybrid Inverter is an advanced solar power solution designed for residential and commercial applications. This inverter efficiently manages solar, battery, and grid power with its intelligent hybrid system, ensuring uninterrupted electricity supply.
With parallel capability for up to 6 units, it supports scalable energy needs. The 8000W MPPT solar charger maximizes energy conversion, while the pure sine wave output ensures stable and efficient power for sensitive electronics. Featuring lithium, lead-acid, and gel battery compatibility, this inverter offers flexibility in energy storage solutions.
Key Features:
- 6KVA / 6000W Pure Sine Wave Output Delivers clean, stable power.
- 8000W Maximum PV Input Power Optimizes solar energy utilization.
- MPPT Operating Voltage Range: 120V 450V DC.
- Parallel Operation (Up to 6 Units) Expandable for higher power needs.
- Fast Transfer Time 10ms typical, 20ms max for seamless backup.
- High Surge Power (12,000VA) Handles startup loads efficiently.
- Battery Compatibility: Works with Lithium, Lead-Acid, and Gel batteries.
- Flexible AC Input Range 170-280V for PCs, 90-280V for home appliances.
- Maximum Solar Charger Current: 100A.
- AC Charger: 80A for efficient battery charging.
Technical Specifications:
General
- Model: SPF 6000-ES-PLUS
- Battery Voltage: 48V DC
- Rated Power: 6000VA / 6000W
- Parallel Capability: Yes, up to 6 units
AC Output
- Waveform: Pure Sine Wave
- Surge Power: 12,000VA
- Transfer Time: 10ms (typical), 20ms (max)
Solar Charging
- Maximum PV Array Power: 8000W
- MPPT Operating Voltage: 120V 450V DC
- Maximum Input Current per MPPT Tracker: 16A
- Maximum Solar Charger Current: 100A
AC Charging
- AC Charge Current: 80A
- AC Input Voltage: 230V AC
- Selectable Voltage Range:
- 170-280V AC (for PCs)
- 90-280V AC (for home appliances)
Battery Description:
The Dyness BX51100 5.12kWh 51.2V LiFePO4 Battery is a reliable and scalable energy storage solution designed for solar, backup power, and off-grid applications. Built with advanced Lithium Iron Phosphate (LiFePO4) technology, this battery offers superior safety, efficiency, and longevity, making it an ideal choice for residential and commercial energy systems.
Key Features:
- High-Capacity Energy Storage: 5.12kWh total power with 100Ah nominal capacity.
- Flexible Installation: Supports both wall-mounted and rack-mounted configurations for versatile setups.
- Advanced LiFePO4 Technology: Ensures long cycle life, enhanced stability, and high efficiency.
- Scalable System Design: Allows for up to 40 modules in parallel to expand storage capacity.
- Built-in Safety Features: Protection against overcharging, over-discharging, and high temperatures.
- Optimized Performance:
- Recommended Charge/Discharge Current: 50A
- Maximum Charge/Discharge Current: 75A
- Wide Operating Temperature Range:
- Discharge: -20°C to 55°C
- Charge: 0°C to 55°C
- Storage: -10°C to 35°C
- Seamless System Integration: Supports CAN and RS485 communication protocols for advanced monitoring.
Technical Specifications:
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Charge Voltage: 56.5V
- Cell Configuration: 16 cells in series
- Max Parallel Modules: 40
- Enclosure Protection Rating: IP20
- Dimensions: [Not provided, please confirm]
- Weight: [Not provided, please confirm]
Installation & Warranty Information:
- Mounting Options: Wall-mounted or rack-mounted.
- Warranty: 10 YEAR WARRANTY
- Installation must be performed by a qualified electrical wireman or master electrician.
- A valid Certificate of Compliance (COC) must be issued post-installation to comply with SANS 10142 regulations.
- Warranty claims must include installation photos, a valid COC, and proof of installation by a certified professional.
