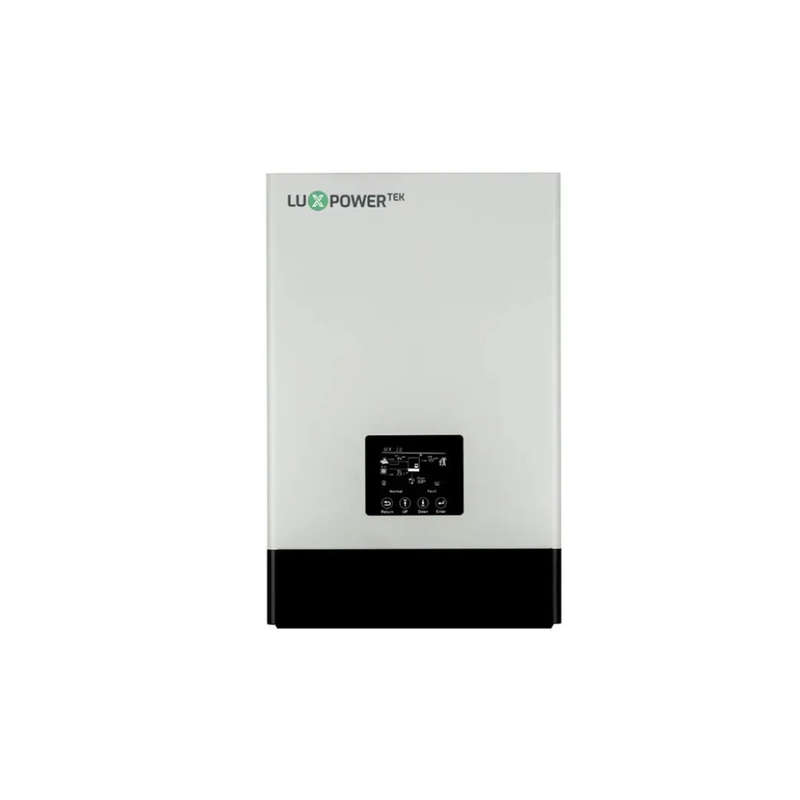

6KVA / 6000W Luxpower Hybrid Solar Inverter SNA6000 OffGrid WPV(with CT) 48V + Wifi Dongle

6KVA / 6000W Luxpower Solar Inverter SNA6000 OffGrid WPV(with CT) 48V + Wifi Dongle

General

• Model: SNA 6000 WPV
• Battery voltage: 48VDC.

Inverter Output

• Waveform: Pure Sine-Wave.
• Rated Power: 6000W.
• Parallel Capability: Yes, 16 units.
• AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
• Surge Power: 9000w.
• Efficiency (Peak): 93%.
• Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

• Maximum PV Array Power: 8000W.(4000w per MPPT)
• 2 MPPT Controllers
• MPPT Range @ Operating Voltage: 120VDC ~385 VDC.
• Maximum PV Array Open Circuit Voltage: 480VDC.
• Start Up Voltage: 100vdc
• Maximum Efficiency: 98%.
• Maximum Solar Charge Current: 17A/17A.

AC Charger

• Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
• Frequency Range: 50Hz/60Hz (Auto sensing)

Build in BMS (Battery management System)

• BMS Compatible with
• Pylon
• Dyness
• Shoto
• Revov
• UZ Energy
• Lithium Battery South Africa
• Volta
• Hina Approved Battery
• Lemoen
• Bluenova
• Freedom Won
• Greenrich
• Hubble

Wifi Remote Monitoring Included

Flexible Working Modes with settable charge and load power supply priority

Support Solar and AC take the load jointly.

Comes with a CT clamp to control your essentials and non-essential loads like a full Hybrid Inverter

Warranty: 2 years.

• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
