6kW LOW FREQUENCY, Low voltage, Pure sine wave Inverter with DUAL AC-outputs, Wi-Fi compatible, Parallel

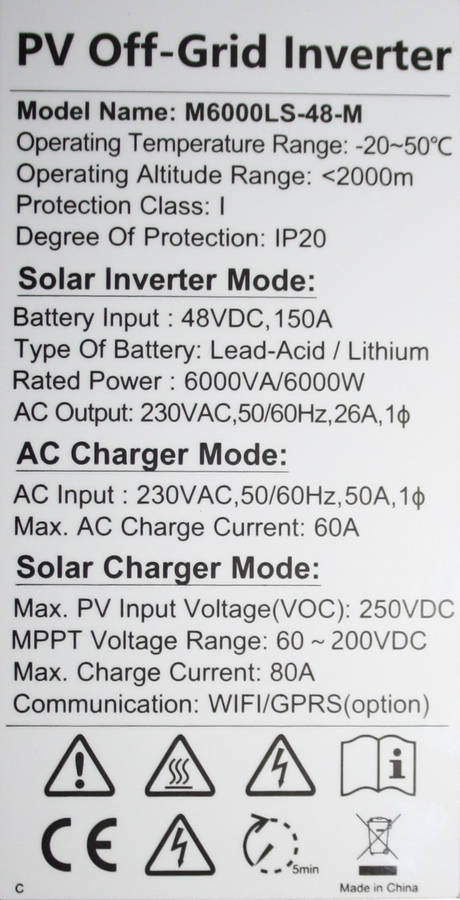

MODEL M6000LS-48-M
User manual available here
IP Rating:
- IP20
- Not recommended for installation location with high humidity.
- If the inverter needs to be installed close to the ocean please make use of a dehumidifier.
Features:
- LOW FREQUENCY inverter. Transformers and not only MOSFETS.
- PV input range 60 - 250 Vdc
- Can operate without batteries.
- Solar & Utility can power loads at same time.
- Can be connected in parallel, also 3-phase.
- Output power factor = 1
- Wi-Fi monitoring function via USB-port (optional).
- DUAL AC-outputs.
Max Watt Output:
- Continuous: 6kW
- Surge: 18kVA / 18kW
Output and Charging Source Settings:
- Solar, Utility, Solar-Battery-Utility, Utility-Battery & Solar.
- Solar only: 80A (maximum).
- Grid only: up to 60A.
Solar input specifications:
- 60 - 250Vdc solar input is the optimal working voltage range for these inverters.
- If operation without batteries is required, this input condition must be met.
Monitoring & Setting :
- LCD screen.
- Wi-Fi dongle (optional) monitoring system via phone app.
Expansion: Single Inverter
- PV Panels minimum: 60Voc.
- PV Panels maximum: 4500W.
- PV Panels connection : series & parallel.
- Batteries minimum: 4 x 100Ah 12V / 48V LiFePo4
- Can operate without batteries (STAND ALONE ONLY).
- Peak Efficiency: 93.5%
- No Load Power Consumption: <35W.
Expansion: More Inverters
- Can be used as single inverter.
- Single phase & 3-phase up to 6 units
- Please take note that the warranty will only be valid for up to 3 inverters connected in parallel. Contact us for approval on warranty for more than 3 inverters connected in parallel.
Physical dimensions
- 650 x 365 x 247 mm
- 38.5KG
What's in the box
- Inverter
- User manual
- Communication Cable
- Parallel Cable
- Screws x 3
- Mounting Bracket
IMPORTANT: THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE.
Warranty:
36 Months Warranty
Please take note of the full warranty terms and conditions.
