6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module
6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module 6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module
6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module
+2

6mA 3-100CM Adjustable Infrared Digital Obstacle Avoidance Sensor Module

New 20 available
R376.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654089323

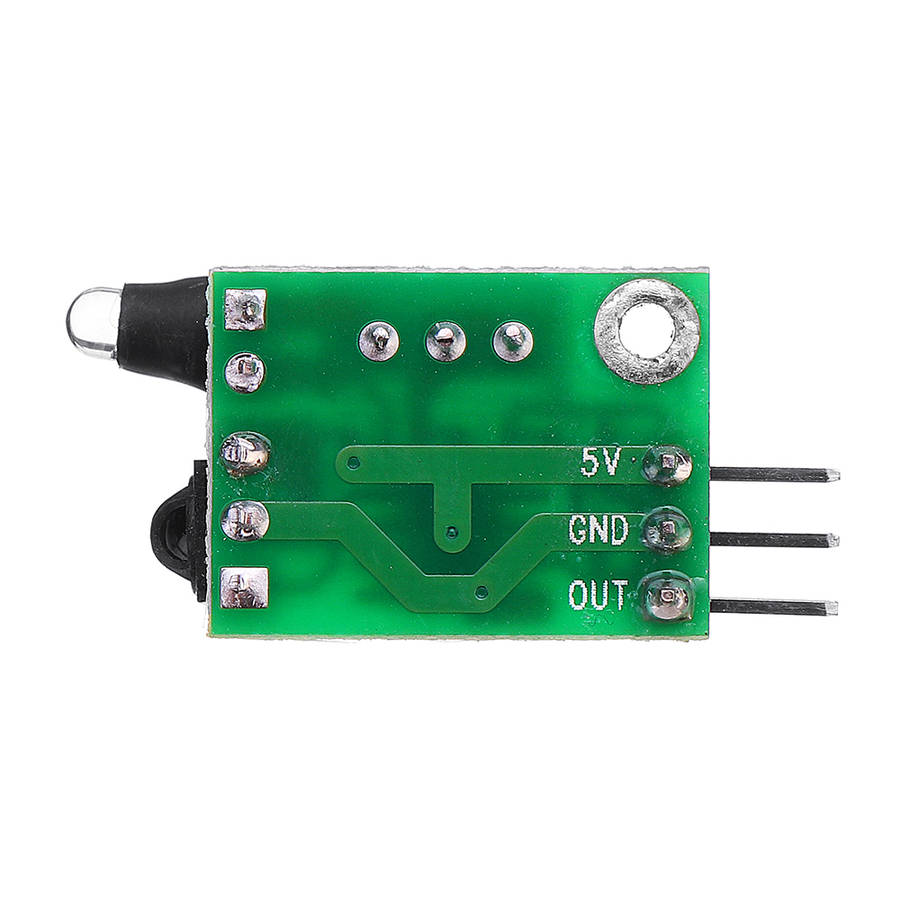

Specifications: Working voltage: DC 3.8V-5.5V Working current (5V): typical current 6mA Input and output signals (3 lines): GND, VCC is power, and VCC is 3.8V-5.5V Obstacle detection time (range from obstacle-free to obstacle-free or obstacle-free to obstacle-free): <=21ms Working Principle: Sensors actively emit infrared light, according to reflected light detection, if detected obstacles, OUT foot output 0, otherwise 1. Detection distance (test environment, indoor, maximum power, Voltage 5V, power consumption 6.5ma): 1. white walls: 100cm 2. IBM black computer cover: 20cm 3.1 fingers: 18cm 4. palm: 30cm 5. a transparent pearl pen: 20cm Features: The new version has been greatly improved and has been gradually improving. 1. super miniature and designed with mechanical mounting holes. 2. Low power consumption, wide operating voltage range. The transmitting signal adopts modulation signal, long distance, good anti-jamming, and can work outdoors under non-direct sunlight (the distance will be shorter). 3. distance adjustable, ranging from 3cm-100cm. 4. Obstacle avoidance uses window technology to avoid the problem of critical zone. The sensor works stably. The user can directly use the output signal without considering the signal jumping. Usage: There are many precise adjustable potentiometers on the board, which can be adjusted according to the use environment. The adjusting range is from 3cm to 100cm. Because it is a reflection principle, it is related to the specific reflection target and can be adjusted according to the situation. The circuit board has a red LED that emits light when obstacles are detected. OUT output continues to be low. Obstacle-free is OUT output continues to be high. Sensor active infrared reflectance detection, so the reflectance and shape of the target is the key to the detection range, in which the black detection range is the smallest, the white is the largest; small area object distance, large area distance. Package Included: 1 x Obstacle Avoidance Sensor








Add to cart
