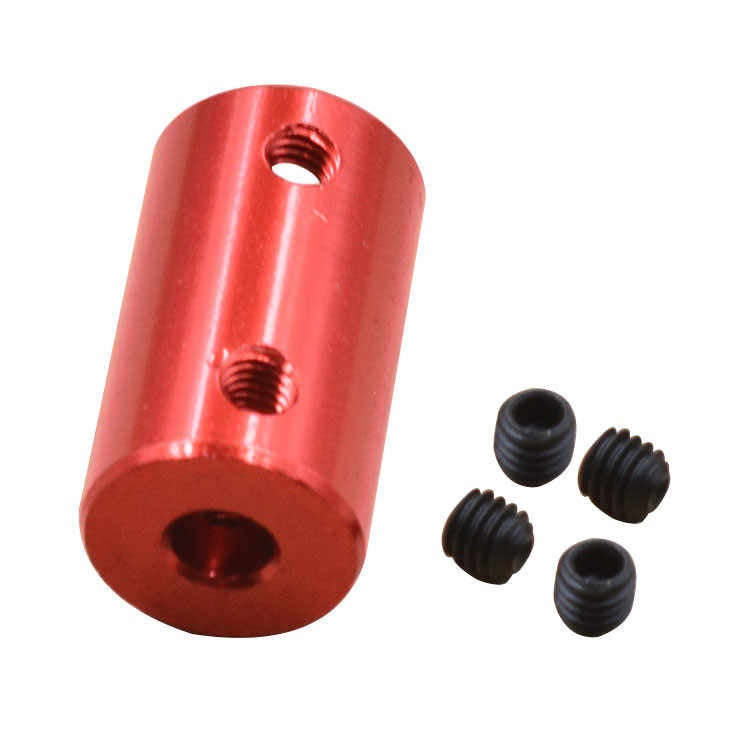

6mm -10mm Red Aluminum Alloy Coupling

6mm -10mm Red Aluminum Alloy Coupling

New 22 available
R53.83
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
ACC-164
Bob Shop ID
617872839

These shaft couplers are widely utilized in various applications like blowers, 3D printers, DIY robots, CNC machines, and stepper motors. They function similarly to rigid clamp couplings, securely holding bearings and sprockets on the shaft. They are commonly used in motor and gearbox assemblies.


Featuring a top tight design with 2/4 screws, these rigid couplings effectively secure the shaft, providing high torque, rigidity, low inertia, and exceptional sensitivity. It's important to note that the rigid type does not allow eccentricity and requires proper adjustment during use.

The single piece set screw clamp design simplifies the setup process, allowing for easy installation of items on the shaft while providing control over the coupling's holding capacity.

Connection Bore Diameter: 6mm to 10mm, Total Length: 25mm, Outside Diameter: 14mm with M4 Grub Screws.


Specification

Diameter: 14mm
Length: 25mm
Top thread: Use 4 M4 screws to fix the screw holes on the side.
Material: Aluminum alloy (red oxidation treatment)
Model: 6-10 means that one end is connected to a 6mm shaft, and the other end is connected to an 10mm shaft
