6U 450mm Deep Outdoor Cabinet with 2 fans

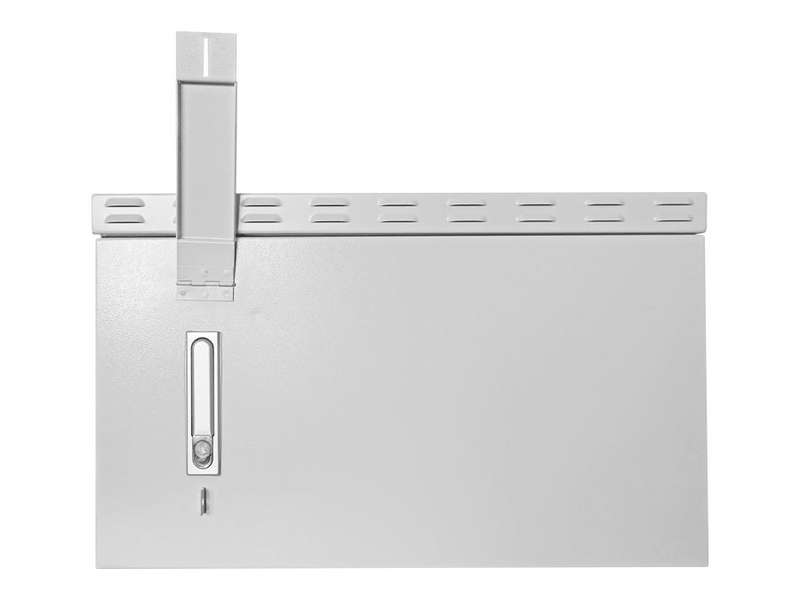

outdoor cabinet range has proven to be a reliable, popular choice for our customers with outdoor networking applications such as high-site and FTTX installations, where seasonal weather and elements like dust and water have proven to be problematic. The CAB-6UO is manufactured from cold-rolled steel and is Phosphate & powder-coated to protect against water corrosion. This unit has a solid front door with additional foam rubber padding to ensure a water-and-dust-tight seal when closed. The door's double lock system offers robust security for your outdoor installations.

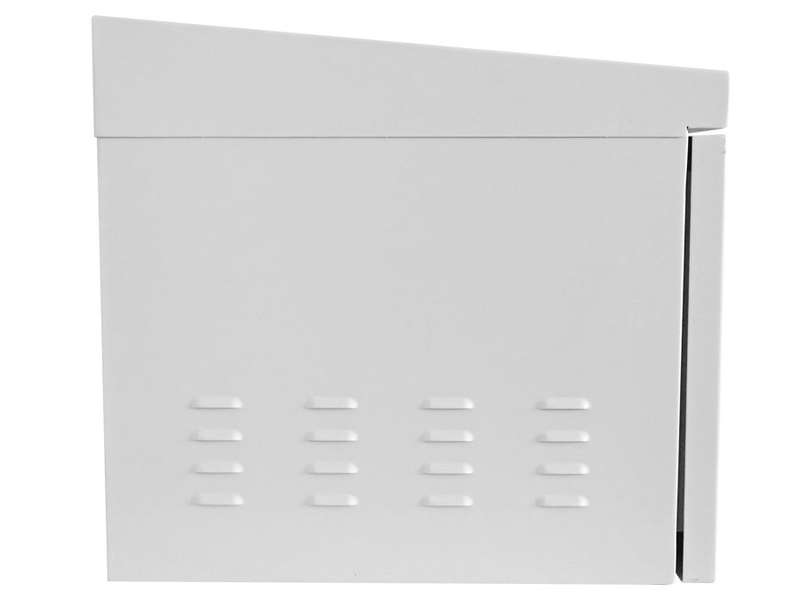

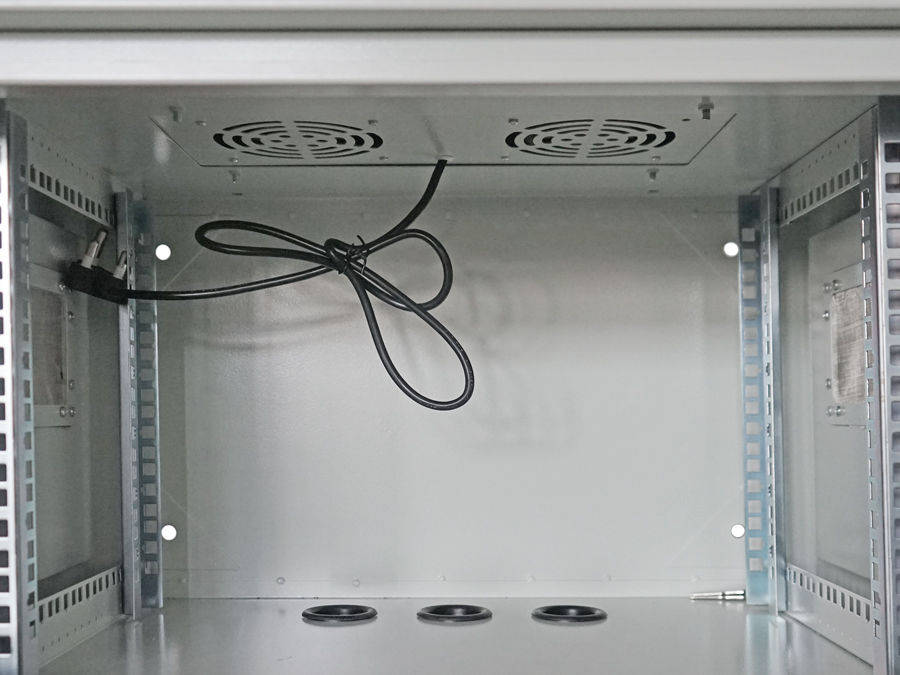

The vents on the side panels have an additional metal mesh filter, set into a double wall on the inside, adding to the dust resistance and cooling of the cabinet. The cabinet has 2x ceiling mounted fans which pull the hot air into the roof and out of the cabinet via the vents to keep the equipment inside the cabinet cool. The side vents further aid in the cooling of internal devices. Rubber glands allow for incoming cables from below.

Supplied Assembled

Specifications

Assembly: Supplied Assembled

Fans: 2

Material: Mild Steel, Powder-Coated

Mounting: Wall Mount

Number of Glands: 3

Rating: Outdoor Weatherproof

Dimensions: 425 x 630 x 455mm (L x W x D)

Weight: 23.30kg

Volumetric Weight: 36.60kg
