7-12V Handsexcelent Bluetooth MP3 Decoder Board With Bluetooth Module+FM
Features:Stereo Bluetooth 12V lossless WAV music decoder, WMA / MP3 / FM AUX speaker panel modules support breakpoint memory

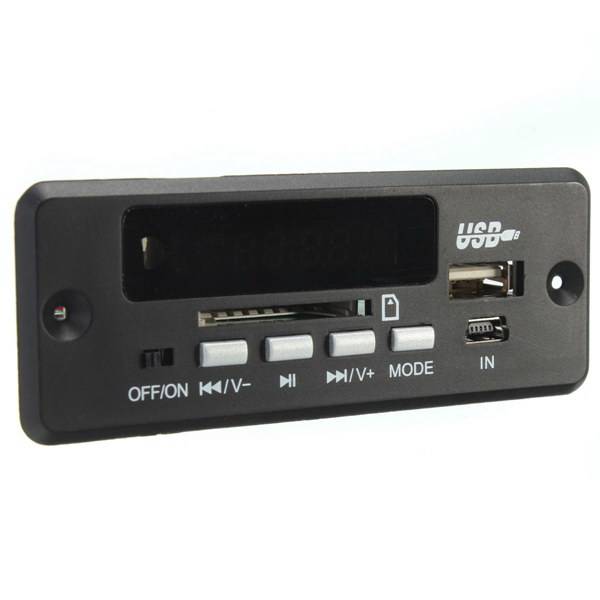

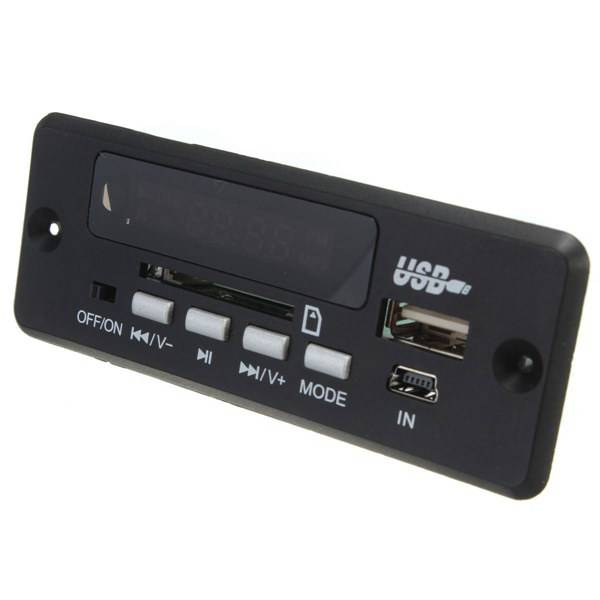

Panel dimensions: 91 x 35 x 46mm
Functions:*Support USB, SD, extracellular signal switch directly
*Support folder
*Support for stereo Bluetooth (Bluetooth3.0EDR) paired with the phone can be achieved after a good music wireless
*Support USB / SD / Bluetooth / FM / LINE switch automatically. Support MP3 / WMA / WAV lossless songs.
*Support USB / SD card switch, switch songs song selection
*Support Bluetoot the song, the next song, adjust volume, EQ, play / pause, mute, shut down.
*Support FAT16, FAT32 file system.
*Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.
*Support 32-320kbps of MP3 songs.
*Support power and memory function, continue playing the song played before the power and volume.
*Support cycle mode
How to connect:1, Connection: 2P circuit board electrically connected to 12V (GND Ground, + 12V positive);
2, FM: ANT FM radio antenna connected to the welding hole;
3, The audio output: 5P row seat then press the icon audio output R / L / GND; and your amplifier board R / L / GND pair are connected. Or connected to the AUX input jack 4,The audio input (AUX): 3P-row seat according to the illustrated audio inputs L-IN / GND / R-IN
Note:Voltage is not higher than the highest value product desired voltage can damage the main chips and related components! Please note.

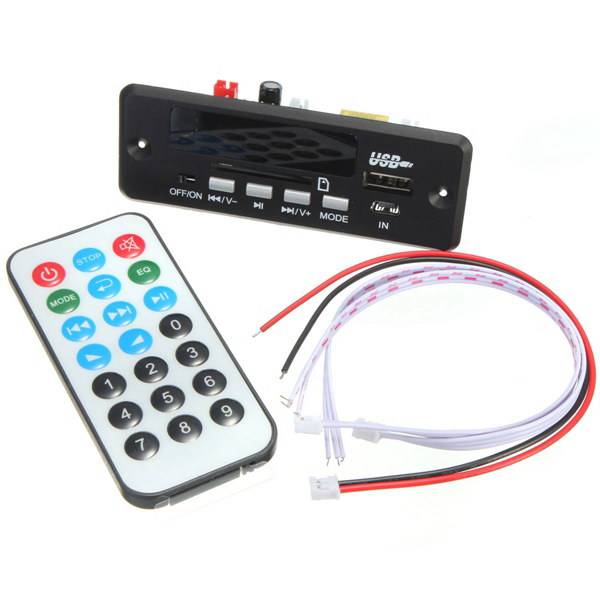

Package included:1 x Decoding panel

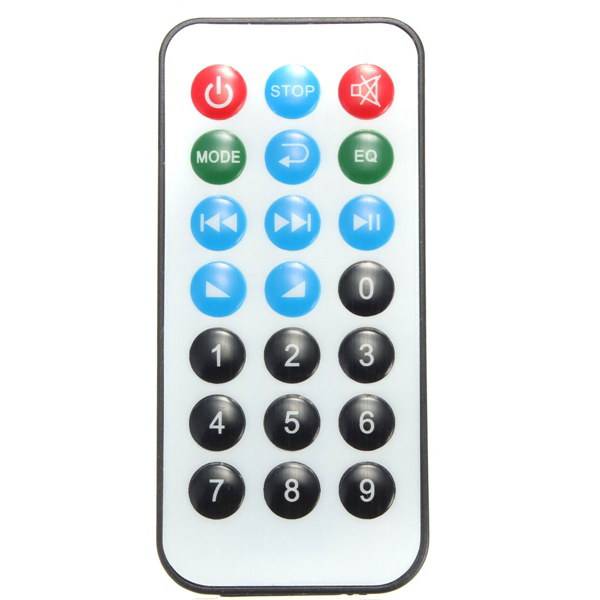

1 x Remote control (with battery)
