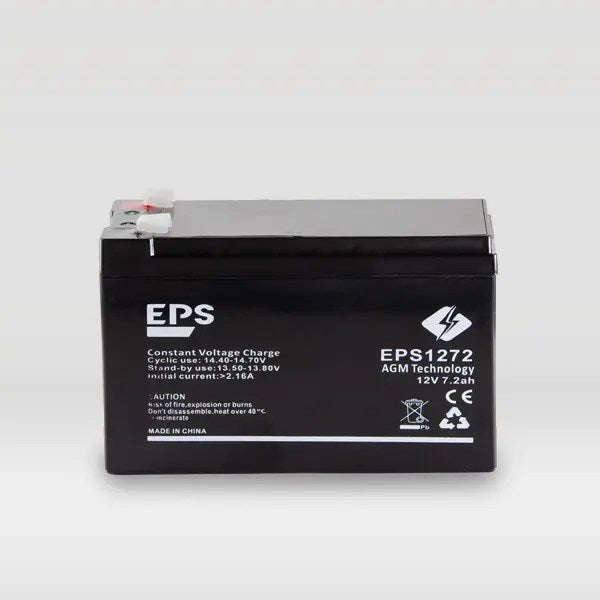

The EPS1272 7.2Ah 12v Lead Acid battery offers 5 years full maintenance free design life. With optimum design and good reliability, this series is highly suited for security and alarm systems, UPS systems, emergency light systems and other small backup applications.
WEIGHT | 2100 g |
---|---|
DIMENSIONS | 151 × 65 × 99 mm |
Nominal Voltage (V) | 12 (6 cells per unit) |
Designed Floating Life (20°C) | 5 Years |
Nominal Capacity (20°C) | 7.2 Ah @20HR-rate (to 1.75Vpc) |
Dimension (mm) | L151mm x W65mm x H99mm |
Approx. Weight | 2.15kg |
Terminal Type | Fasten Tab F1 |
Internal Resistance | Approx. 0.02 Ohm (fully charged @ 20°C) |
Max Charge Current | 2.0A |
Max. Discharge Current (55) | 105A |
Short Circuit Current | 600A |
Self-Discharge | Approx. 3% per month @ 20°C |
Ambient Temperature | Discharge: -15~50°C
Charge: -15~40°C Storage: -15~40°C |
Float Charge Voltage (20~25°C) | 13.6-13.8V (-3mV/ cell / °C) |
Equalize and Cycle Use Charge Voltage (20~25°C) | 14.414.8V (-5mV/ cell / °C) |
Container Material | ABS (UL94-V0 Optional) |
