Main Features:

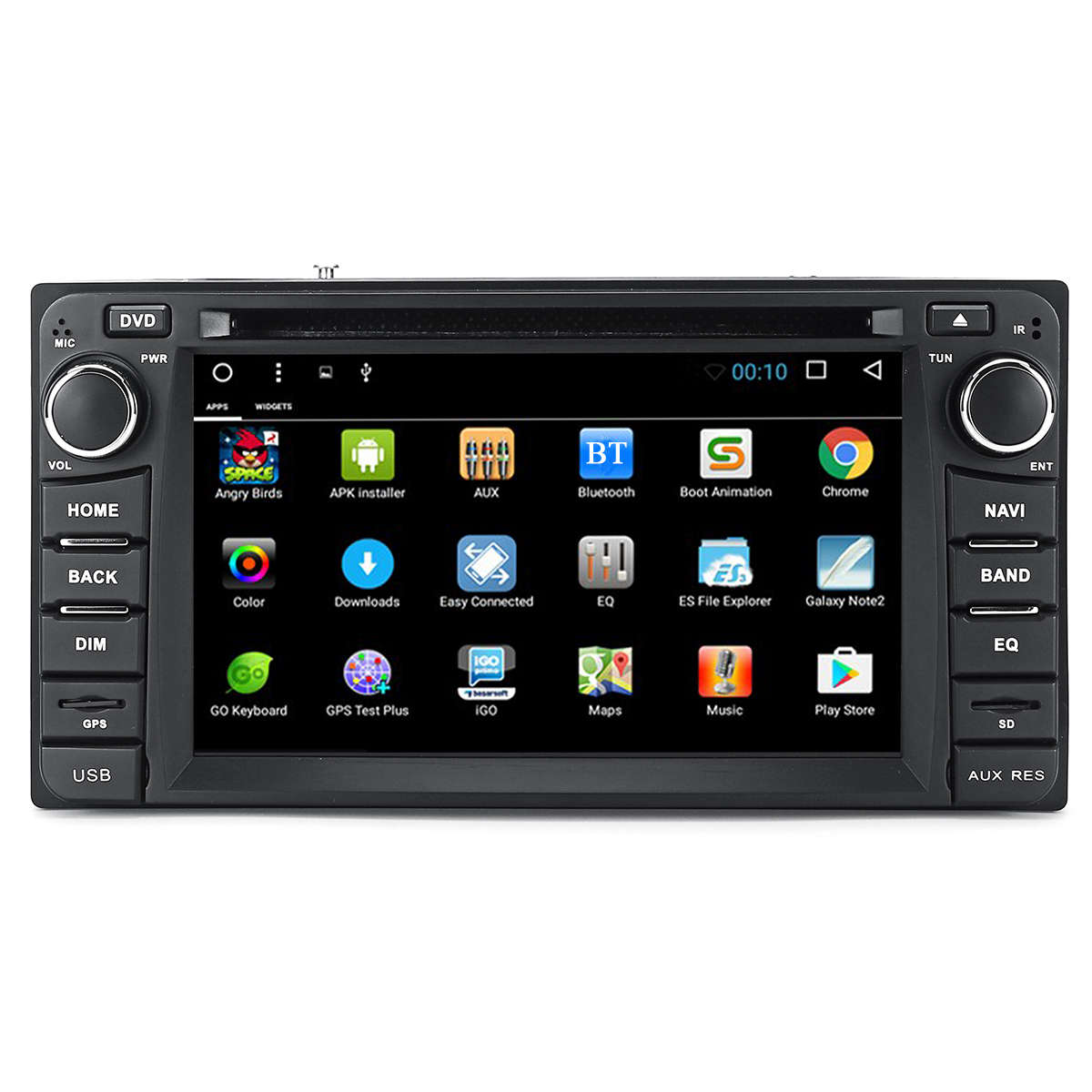

1. 7 inch 2 din HD car radio MP5 player with digital touch screen.
2. Supporting GPS navigation, equipped with 8G GPS card, built-in map of Europe ,America,etc
3. Support wireless bluetooth connection and hand free phone call function.
4. Has CD room for the CD Player, Support CD/DVD Player.
5.Support the USB TF card
6. Support FM and built-in Aux Input.
7.Support Steering Wheel Control
8.Video input,can be connected with rear camera
9.Suitable for automobiles with 200*100mm central control panel size
Installation:
Please click this link: httpss://drive.google.com/open?id=1m9soEpqxlbM-41wMjhM-g82fzY-GmBSI
General Parameters:
1.Screen size: 7 inch touch screen
2.Operating system:Wince 6.0
3.Operating voltage: 12V
4.Operating voltage range:10.8-16V
5.Maximum current consumption:15A
6.Operating temperature range:-10°C-60°C
7.GPS: Support(with 8G GPS card)
8.Network: Support WiFi
9.Steering wheel control (original car): support
10.Play mode: Radio/DISC/USB/SD/NAVI/TV/AV/bluetooth/EQ
11.Storage temperature range:-20°C-85°C
12.Angle of installation:tilt angle in the front and rear is below 30
13.Product size: 205mm*170mm*105mm
Radio:
1.Radio Tuner:FM/AM
2.Station Preset Qty:24
3.Support RDS:Yes
4.Radio response bandwidth:AM:522~1710 KHz, FM: 64~108 MHz
DVD/ CD Section:
Signal to noise ratio: 65dB
Frequency response range: 20HZ-20KHZ
ESP(Electronic Shock Protection):
DVD for 2-3 seconds
CD for 10 seconds
MP3 for 100 seconds
WMA for 200 seconds
MSP(Mechanical Shock Protection):10-200Hz,X/Y/Z:1.0G
System:
1.CPU:800MHz Mstar 8288H
2.RAM:DDR III 256M
3.Nand Flash:
