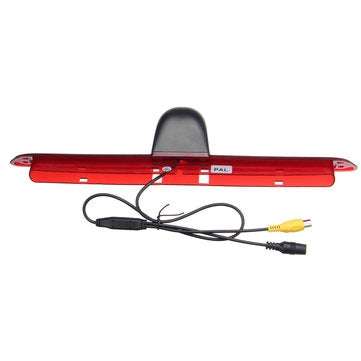

Description: The camera 1. This camera is a bespoke reversing camera designed specifically for use with the Mercedes-Benz/Dodge
Sprinter (2006-2015) and the Volkswagen Crafter (2006-2015).
2. It will simply replace your existing rear high level brake light located at the top of the rear doors, integrating
seamlessly with the lights original mounting clips/screws.
3. The camera is designed to replicate the size and shape of the existing high level brake light but with the
addition of a precision angled camera.
4. Once correctly installed, the camera will automatically power on as soon as the vehicle is put into reverse
delivering a PAL video signal via the included 10 metre RCA video cable signal to any monitor with an RCA
reverse camera input.
5. The camera is also compatible with any aftermarket car head unit with a suitable video input. If your aftermarket
head unit has a dedicated camera input then the camera can be set up so that the rear-view image can be
automatically displayed as soon as the car is put into reverse.
6. The camera is not designed for use with original factory-fitted monitors or OEM displays, as vehicle manufacturers
do not design their equipment with the required RCA video inputs used by aftermarket cameras.
7. Uses with this item no more wonder what's going on in the back
8. Displays a reversed camera image on the monitor to duplicate the normal view seen in a rear view mirror.
9. Perfect solution to get rid if that poor rear view visibility on your car,boat,trailer,camper,truck,or any vehicle that
has no rear-view mirror or poor rear vision.
10.Connect to any type of monitor with a composite yellow RCA jack for crystal clear resolution.
11. Mounted inside will fit into most vehicle key holes,no other installation needed.

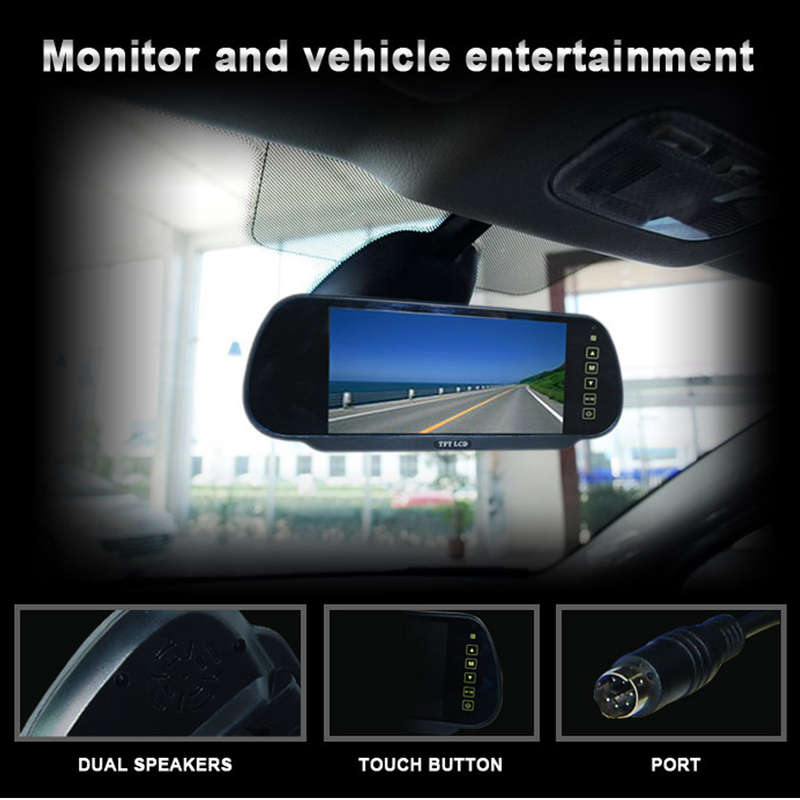

The Monitor 1. The monitor comes with dual video input (i.e. V1 and V2), with V1 video as the default when the reverse
gear is not engaged, once the reverse gear is engaged the monitor automatically switches to V2 video input.
2. Switching between V1 and V2 inputs (when not reversing) can be done by pressing the V1/V2 button on the
right side of display or using remote control key: 'video select'
3. The display automatically powers on when reverse gear is engaged, and if there is no video signal, the monitor
can be turned on/off by pressing the power button.
Feature: Small compact size
Waterproof
Low power consumption
High sensitivity
Low maintenance
Easy and comprehensive installation
Night vision Camera

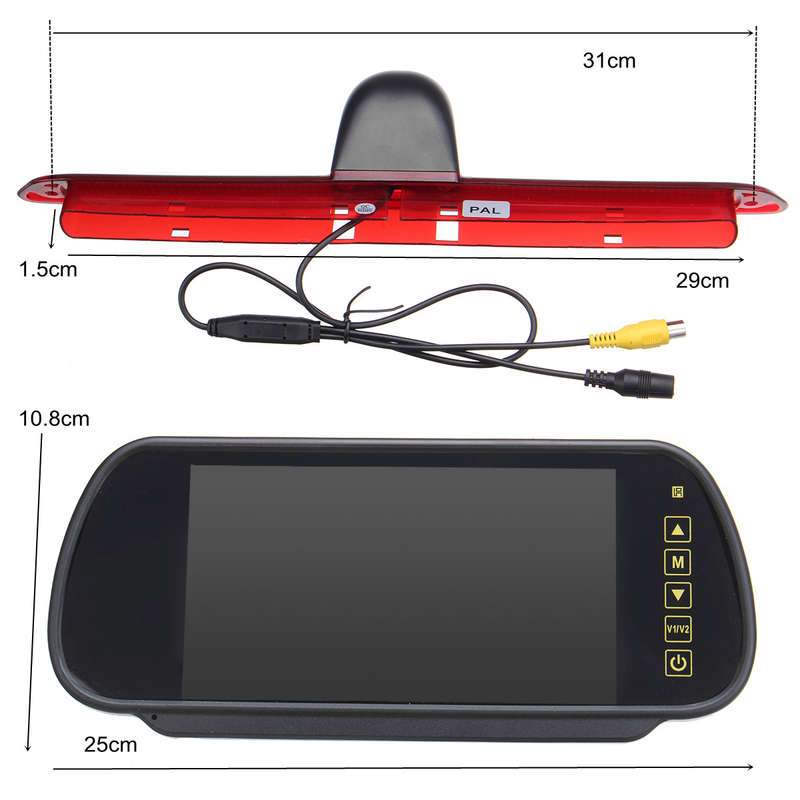

Specification: Camera Camera dimensions: (31cm between screw holes, 3.2cm wide)
Van hole: (29cm long x 1.5cm wide)
TV System: PAL
Sensor: CMOS
Effective Pixels: 682*504/728*576
Horizontal Sync Frequency: 15625KHz
Vertical Sync Fre: 50Hz
Scanning System: 2:1 Interlace
Sync System: Internal
White Balance: Auto
Resolution: 420 -480TV lines
Signal to noise ratio: >48dB (AOC on)
Current Consumpition: No more 150mA
Minimum illumination: 0.5Lux
Operating voltage: 12V DC
Output line: Power supply, signal line, ground
Operating temperature: -20 a ~ +70 a, RH95% MAX
Storage temperature: -30 a ~ +80 a, Rh95% MAX
Lens Angle (Deg.): 92-170 Wide Angle
IP rating: IP67-68
Monitor Screen size: 7 inches
Size: 25x10.8cm
Aspect ratio: 16:9
Resolution: 800x480
Contrast ratio: 350:1
bluetooth: 2.0
Video input: Two video inputs, Automatically display when reversing.
Input signal: AV
Input standard: PAL / NTSC
Current source: DC12V
Power: 6W
Operating temperature: -20-70 degrees Celsius.
Rear view image screen can be up / down / left / right image flip
Optional: bluetooth, digital HD screen, with audio

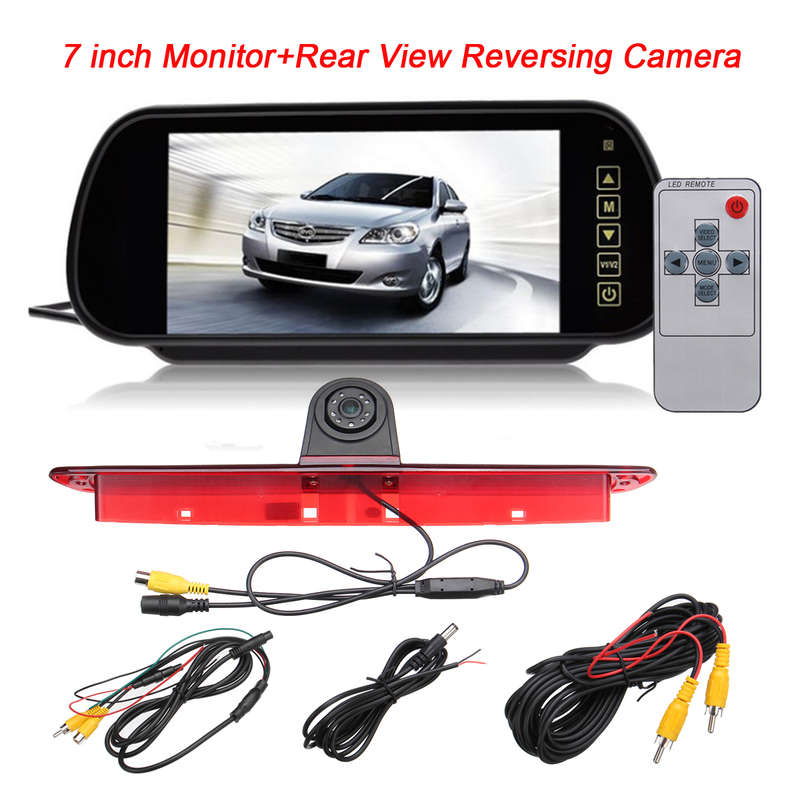

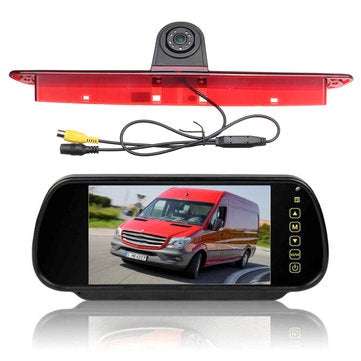

Package Included: 1 X Camera
1 X Monitor
,
,
,
,
