Parameter
Camera Module
Sensor: 1/3" CMOS Panasonic 34229
Total Pixel: 2.0 Megapixels
Output Pixel: 1920*1080@30fps 1920*1080@25fps
Lens: 36X optical zoom 4.6mm-165.6mm
Iris: F1.6~F4.8
Min.illumination: Color:0.01Lux B/W:0.001Lux
D/N: IR-Cut
WB: Manual/auto
AGC: Manual/auto
S/N Ratio: 50dB
Dome
Communications Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Software Control: IE, CMS, Management Platform
Mobile View(optional): Support Android iPhone platform smartphone
Horizontal Rotation Speed: 0.02 ~ 200/s
Horizontal Rotation Range: 0.02 ~ 120/s
Tilt Rotation Speed: 360/s
Tilt Rotation Range: 93
Auto Flip: Horizontal 180, Vertical 93
Auto Control IR LED: PWM
A-B Scan: User programmable
A-B Scan Speed : 1-64 levels setting available
Dwell Preset: 01-60s interval available
Preset Points : 220
Go to Preset Speed: 01-64 levels available
Guard Tours: 3 groups
Guard Points: Max.16 points, dwell time user selectable
PWR On Action: Memory/Tour 1/360 scan/A-B scan/Preset 1-8/None
Park Time: 1-60mins available
Communication Protocol: Pelco-D, Pelco-P
Baud Rate: 9600bps by default
Operating Temperature: Indoor: 0~ +40 Outdoor: -40~ +60
Operating Humidity : 95% Non condensing
Heater & Blower : Auto temperature control
Power: DC12V 4A
IR Illumination Distance: 150M
Power Consumption: 25W
Lightning Protection: Transient voltage 6000V

Description

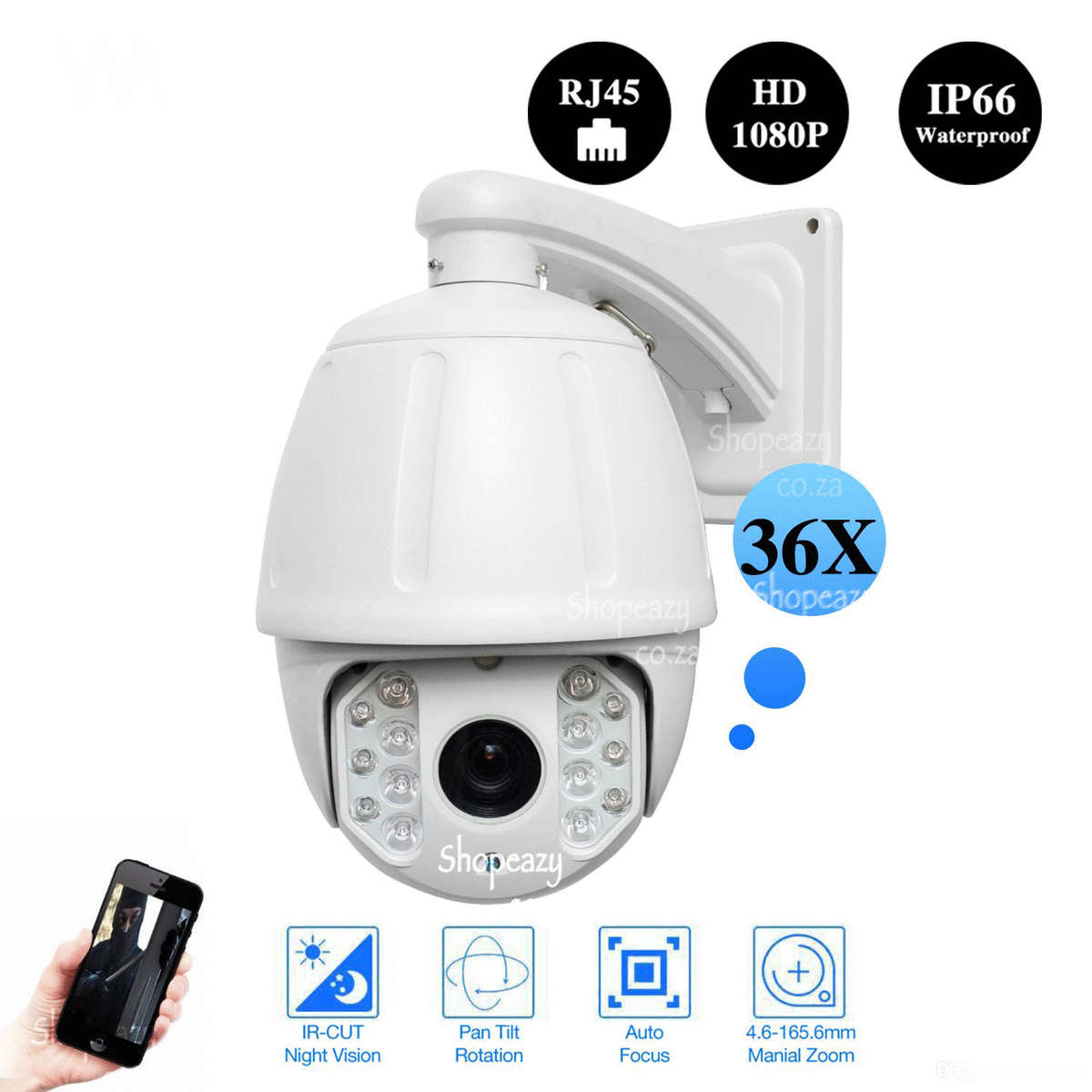

• • 7" Inch HD 2.0MP 36X ZOOM Outdoor PTZ IP High Speed Dome CCTV Camera IR CUT Night 120M ONVIF

  • Category:IP Cameras

  • Short Description:

    IP Camera with 2.0MP high resolution , has high speed, Optical zoom is 36M!! Support H.264/H.265, IR distance reach 150M, IP66 Waterproof level, perfect Dome

  • Quantity:1   Piece

  • Package Size:32.0 * 32.0 * 43.0 ( cm )

  • Gross Weight/Package:8.81 ( kg )
