7 Inch On-Camera HD DSLR Monitor (1080P, HDMI) - E157

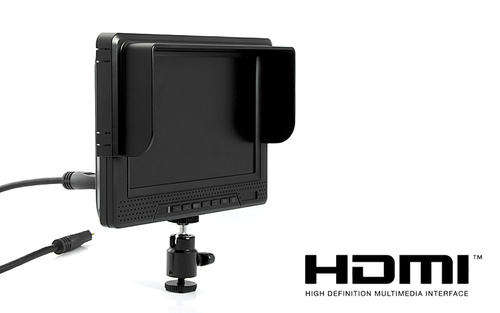

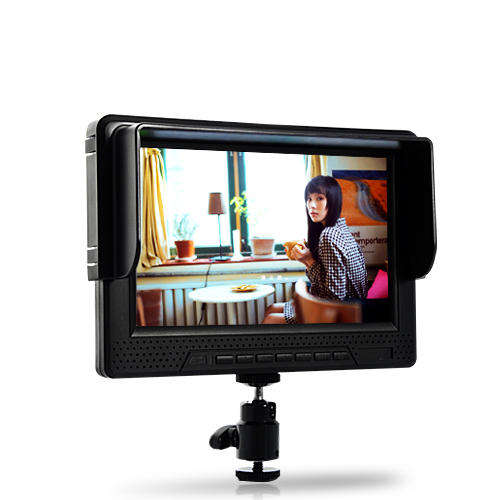

7 Inch On-Camera HD DSLR Monitor (1080P, HDMI)

Step Your Game Up

This on-camera monitor for DSLR cameras and camcorders provides a clear and accurate image of what’s being recorded without having to look through your camera’s tiny built-in monitor. This makes framing, focusing and previewing faster and easier than before- while allowing you to position the monitor at different angles without being forced to keep your eye level with the back of the camera. The E157 HD DSLR monitor connects to your camera’s hot shoe adapter, provides HDMI and BNC YPbPr inputs and comes with a 2200mAh battery for run-and-gun shooting. Continue reading to get the full scoop.

Great Outdoor Performance

The E157 is one of our brightest monitors yet thanks to the enhanced 450 cd/m2 backlight. This produces a crystal clear picture and shows colors vividly, even when used under sun light. Additionally, a light-hood is also provided to ensure a perfect picture under excessive lighting conditions as well as image adjustments like color temperature, red, green, blue adjustments, image flip and more.

High Contrast Ratio

Professional camera crews and photographers require accurate color representation on their field monitor, and the E157 provides just the same. The LED matte display has a 500:1 color contrast ratio so colors are rich and vibrant, and the matte display prevents any unnecessary glare or reflection.

Wide Viewing angles

The display on the E157 remains perfectly viewable 120 degrees horizontally and 140 degrees vertically (from the center point). You can be standing adjacent to the monitor and still experience a perfectly clear picture. This feature is useful for when there are multiple cameramen and a director standing around the one monitor to view content. Nobody will get a distorted picture.

Factory Direct OEM

Shooting video with a DSLR means you are stuck operating from the small low-resolution screen to judge critical focus and exposure. Make things clear and easy for yourself and upgrade your DSLR camera with the E157 today. The best part? The E157 comes direct from the OEM factory at roughly $150, that’s about 4 times cheaper than the same exact branded model that’s currently selling at major online resellers. Order now and we’ll express ship your order and even back the E157 with our full one year warranty.

At a Glance...

• Super bright 1080P HD DSLR 7 inch monitor
• Anti-glare screen works great even under sun light
• High Contrast Ratio: 500:1
• Wide viewing angle: 140V / 120H degrees
• HDMI, BNC YPbPr and composite video inputs
• Comes with HDMI cable and remote control
• Full image control: color temp, red, green, blue and more
• Connects to hot shoe, shoulder mount and more
• Uses standard tripod threads at bottom and side for mounting

Manufacturer Specifications:

• Screen Resolution: 800 x 480
• Resolution Support: 1920 x 1080(max)
• Screen Size: 7 inch
• Display Ratio: 16:9, 4:3
• Brightness: 450cd/m2
• Contrast: 500:1
• Viewing Angle (degrees): 50/70, 70/70 (L/R, U/D)
• Signal Input:
  -HDMI
  -BNC YPbPr component
  -BNC composite video x2
  -BNC Audio
• Adjustments:
  - Image flip
  - Image invert
  - Brightness
  - Contrast
  - Saturation
  - Tint
  - Horizontal position
  - Vertical Position
  - Red, Green and Blue adjustment
  - Color temperature: 6500K, 7500K, 9300K
• Remote Controller: Yes
• Mount: Hot shoe (uses standard tripod screw)
• Power Source: 2200mAh removable battery
• Battery Charger:100-240V wall adapter- 12V output
• Battery Life: 2-3 hours on full charge
• Power Consumption: <8w
• Languages: English, Chinese
• Dimensions: W:190 x L:133 x D:40 (mm)

Product Notes:

• Can mount to any existing equipment using the screw holes (standard tripod thread) at the bottom and side.
• Can also be used an external monitor for DVD, gaming GPS and more.

Package Contents:

• 7 inch HD Monitor
• User Manual - English
• Remote Control
• Light hood
• HDMI Cable
• Hot shoe mount
• Battery
• Power Adapter (100-240v)

Frequently Asked Questions:

• Can I use this HD monitor with my camcorder?
  Yes, so long as you have a way of mounting it to your camcorder. Most people who use this with their camcorders already have a steady cam rig or shoulder rig, so it can mount with your existing hardware by using the tripod screws located at the bottom and side of this device.
• Can I install this HD monitor in my car?
  Yes, you can place it anywhere you wish. This product is not limited to DSLR use and can be used in many scenarios including gaming, DVD, GPS and more.
