7 Inch On Camera IPS DSLR Monitor - 1280x800 Resolution, Peaking Focus Assist, Image Freeze, Zoom-in

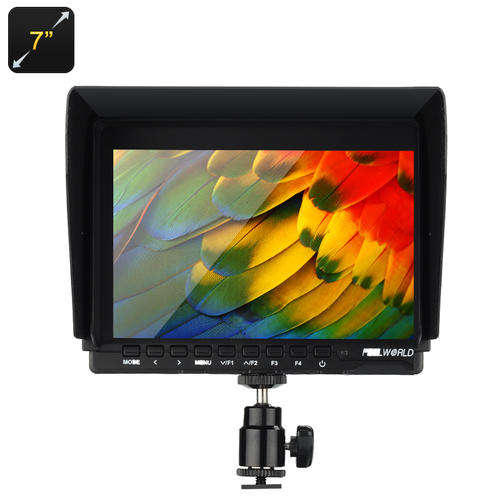

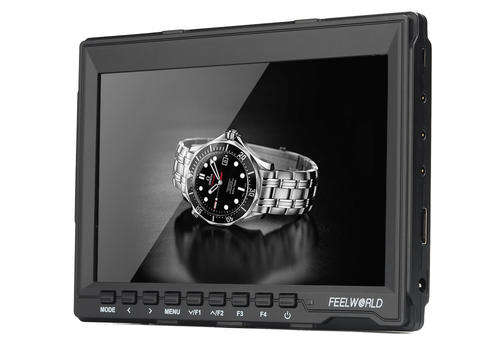

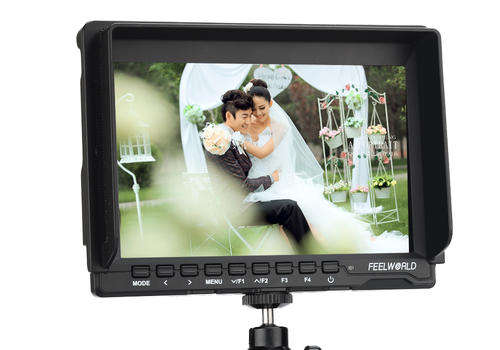

7 Inch On Camera IPS DSLR Monitor

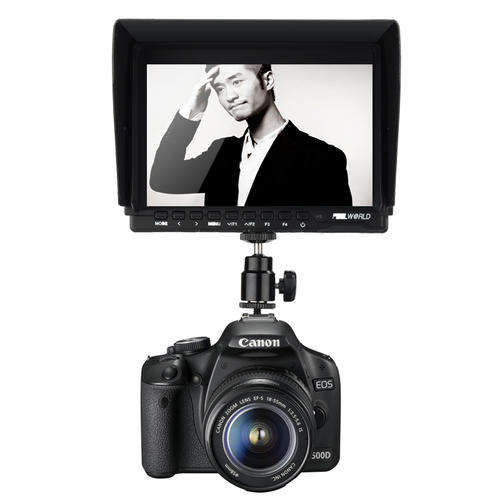

Perfect for DSLR and professional video cameras this on Camera IPS monitor displays high quality images at 1280x800 resolutions and has a 400cd/m² brightness and sunshade for easy viewing in sun lit places. You can use this on camera monitor with AC power or in conjunction with a SONY battery as a NP-F970 battery plate is included. Including a built in speaker and audio head jack out port you can listen to the audio feed when recording and with a HDMI locking plate you will never accidently disconnect the monitor while shooting.

Coming with all the advanced features you need such as Peaking Focus Assist, Image Freeze, Zoom-in and Image Flip this slim build 7 inch HD camera monitor is the perfect accessory for when you’re out taking shots. This monitor has a USB upgrade port as well as OSD controller, AV in, HDMI in comes with everything you need to get started reviewing your photos in real time.

At a Glance...

• 7 Inch IPS Screen
• Brightness: 400cd/ m²
• Contrast: 800:1
• 1280x800 Resolution
• Composite Video: PAL/ NTSC auto recognize
• OSD Controller Port
• HDMI In

.

Manufacturer Specifications
General

• Screen: 7 Inch IPS
• Dot pitch: 0.11775(H) ×0.11775(V) mm
• Brightness: 400cd/ m²
• Contrast: 800:1
• Resolution: 1280x800
• Aspect Ratio: 16:9 / 4:3 (Adjustable)
• Backlight: LED
• Outputs: Built-in Speaker, 3.5mm audio
• Composite Video: PAL/ NTSC auto recognize
• HDMI: 480i/ 576i/ 480p/ 576p, 1080i (60/ 59.94/ 50), 720p (60/ 59.94/ 50/ 30/ 29/ 25/ 24/ 23.98) 1080p (60/ 59.94/ 5030/ 29.97/ 25/ 24/ 24fps/ 23.98/ 23.98fpsï¼Â‰
• Viewing Angle: 89 Degrees/ 89 Degrees (L/ R), 89 Degrees/ 89 Degrees (U/ D)
• Power Consumption: 5W
• Input Voltage: 7.4V to 35V
• 1/4 Inch Thread Socket
• Work Temperature: -20 to 50 Degrees Celsius
• Store Temperature: -30 to 60 Degrees Celsius
• Advanced Features
• Peaking Focus Assist in Red line
• DSLR Camera Mode (480p/ 1080i)
• Check Field: Red, Green, Blue, Mono
• Image Flip (U/ D, L/ R)
• Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Center Marker
• Pixel-to-Pixel
• Zoom-in
• Image Freeze

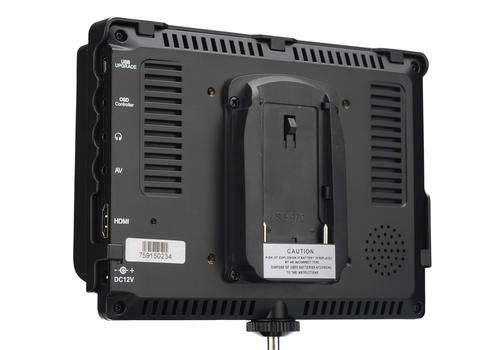

Ports

• USB Upgrade Port
• OSD Controller Port
• Earphone
• AV In
• HDMI In
• DC In

Dimensions

• Main Product Dimensions: 175.5 x 135 x 37 mm (L x W x D)
• Main Product Weight: 290g

Product Notes

• Battery: not included

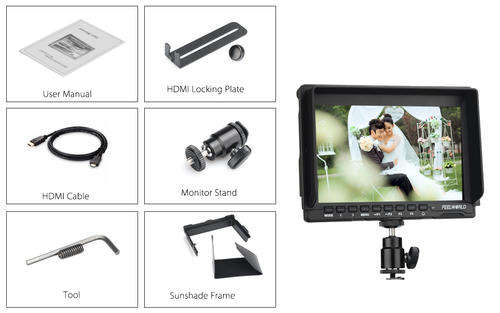

Package Contents

• On-Camera Monitor
• User Manual

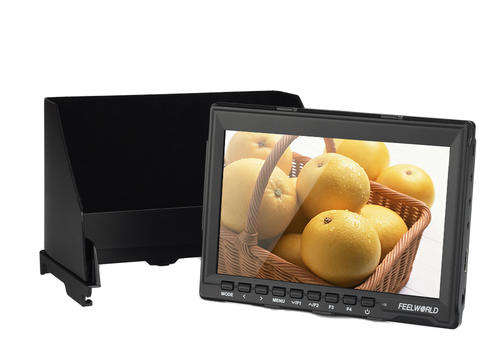

• Sunshade
• HDMI Cable
• Sunshade Frame
• HDMI Locking Plate
• Monitor Stand
• Tool
