7 Inch Reversing Detection Visible AHD Digital Radar Image(PZ903)

TBD0605432401A

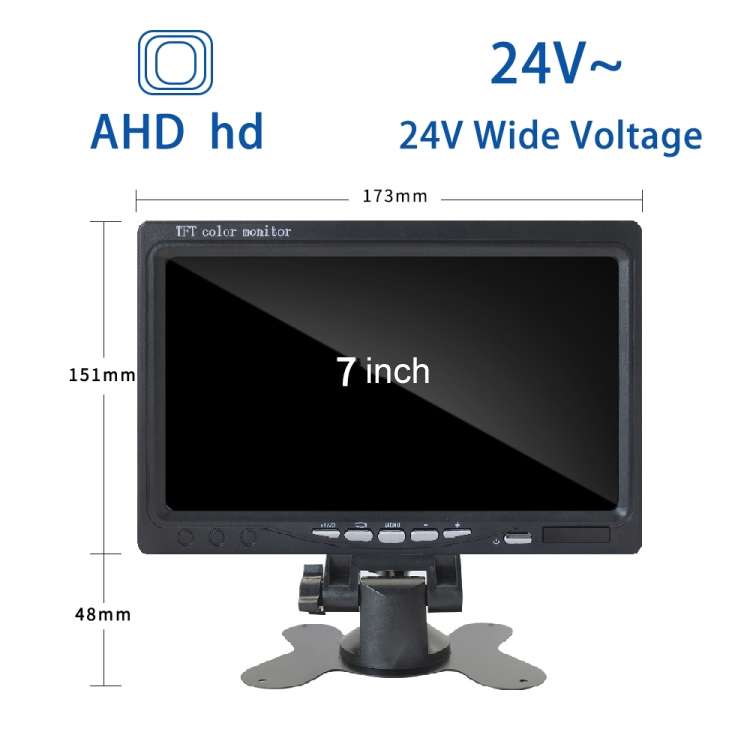

Monitor:
1. Screen size: 7 inches
2. Resolution: 1024x600
3. Video input: 2 channels
4. Aspect ratio: 16:9 (4:3)
5. Viewing angle: U:70/ D:75. R/L:75
6. Color system: automatic
7. Power requirement: 12V-36V DC
8. Color system: PAL/NTSC automatic detection
9. Power consumption: Max 6W

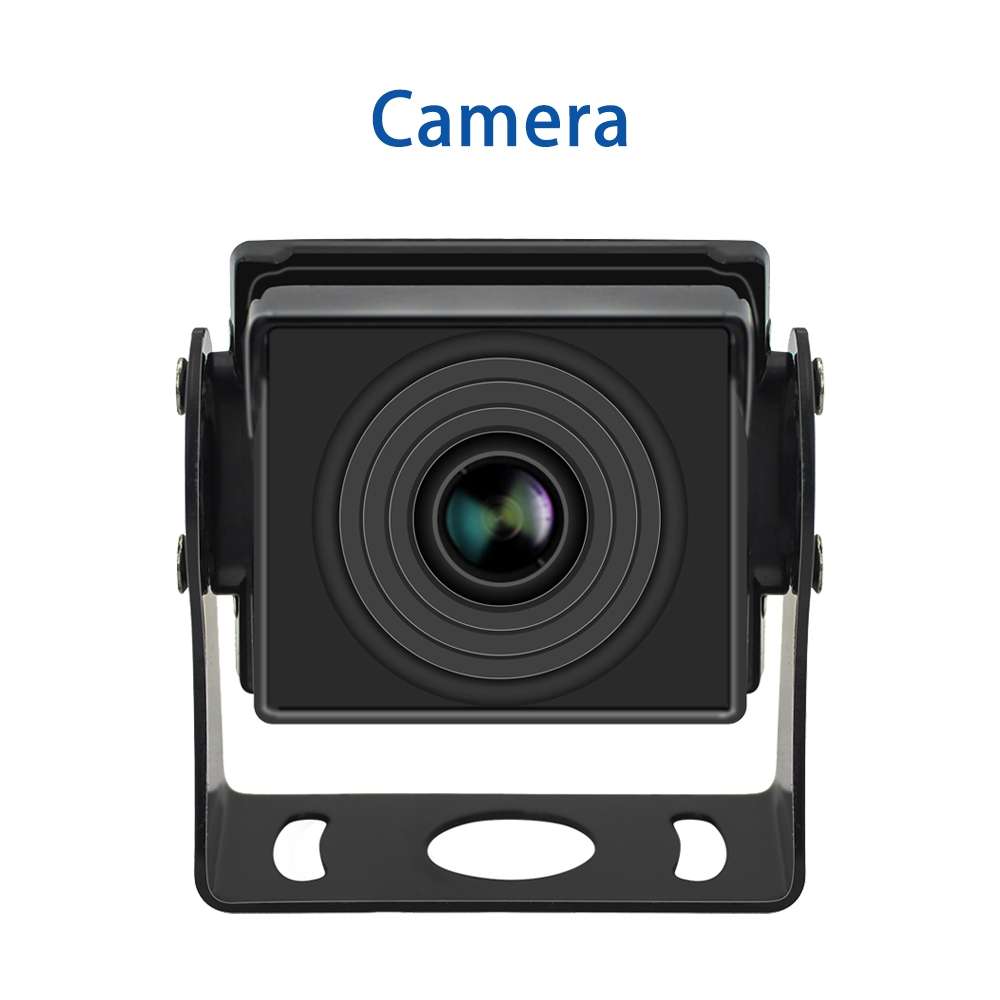

Camera:
1. Image sensor: Pixelplus
2. TV system: NTSC/PAL
3. Effective pixels: 720P
4. Pixel size: 3.0 um x 3.0 um
5. Brightness (min): 0.1 Lux
6. Video output: 75 ohm, Тyp.
7. Operating power supply: DC 12V
8. Night vision distance: 45 ft
9. Viewing angle: 120
10. TV lines: 600tvl
11. Lens: 2.5 mm

Parking sensor
1. Voltage: 12DCV-36DCV
2. Power consumption: MAX 4W
3. Detection distance: 0.3 m--3.0 m
4. Alarm distance: 0 m--3.0 m
5. Sensor angle: X/Y/30 degrees
6. Number of sensors: 128
7. Error: -5mm, +2mm
8. Sensor connector: Aviation connector
9. Alarm type: Buzzer beep
10. Alarm volume: 65 dB
11. Sensor size: 26 mm

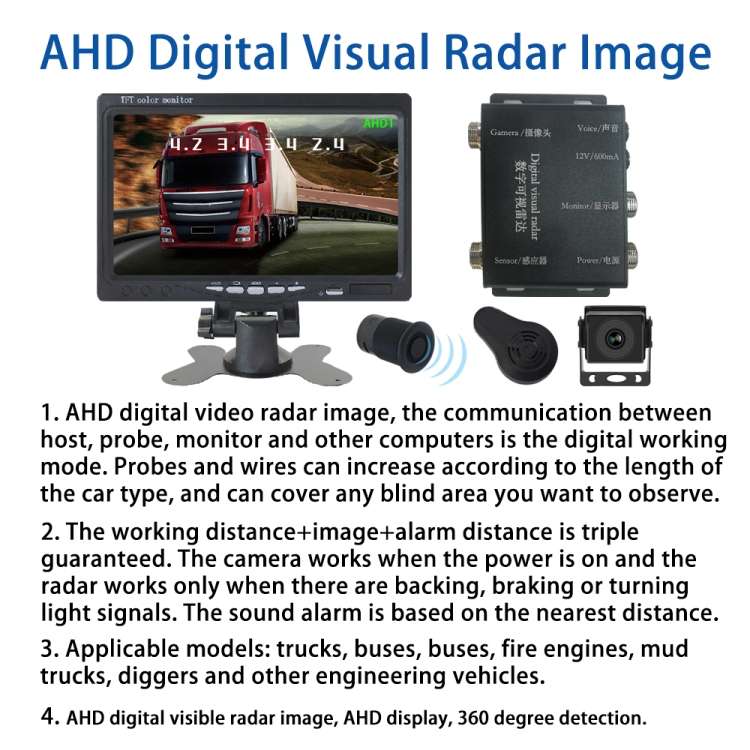

Description:
1. The communication between the host, probe, display and AHD digital video radar is a digital working mode. Probes and wires can be added according to the length of the vehicle model to cover any blind spot you want to observe.
2. Triple protection of working distance + image + alarm distance, working as soon as the power is turned on, the radar works when there are reverse, brake and turn signal signals, and the sound alarm is based on the close distance
3. Applicable models: trucks, buses, public buses, fire trucks, mud trucks, excavators and other engineering vehicles
4. AHD digital visual radar image, AHD display, 360-degree detection

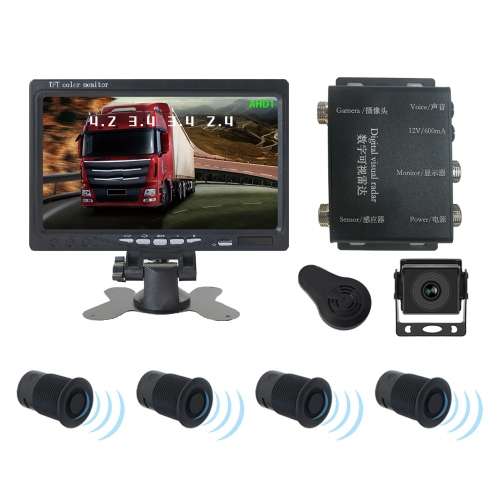

Packing list:
- 7-inch AHD display x 1
- AHD camera x 1

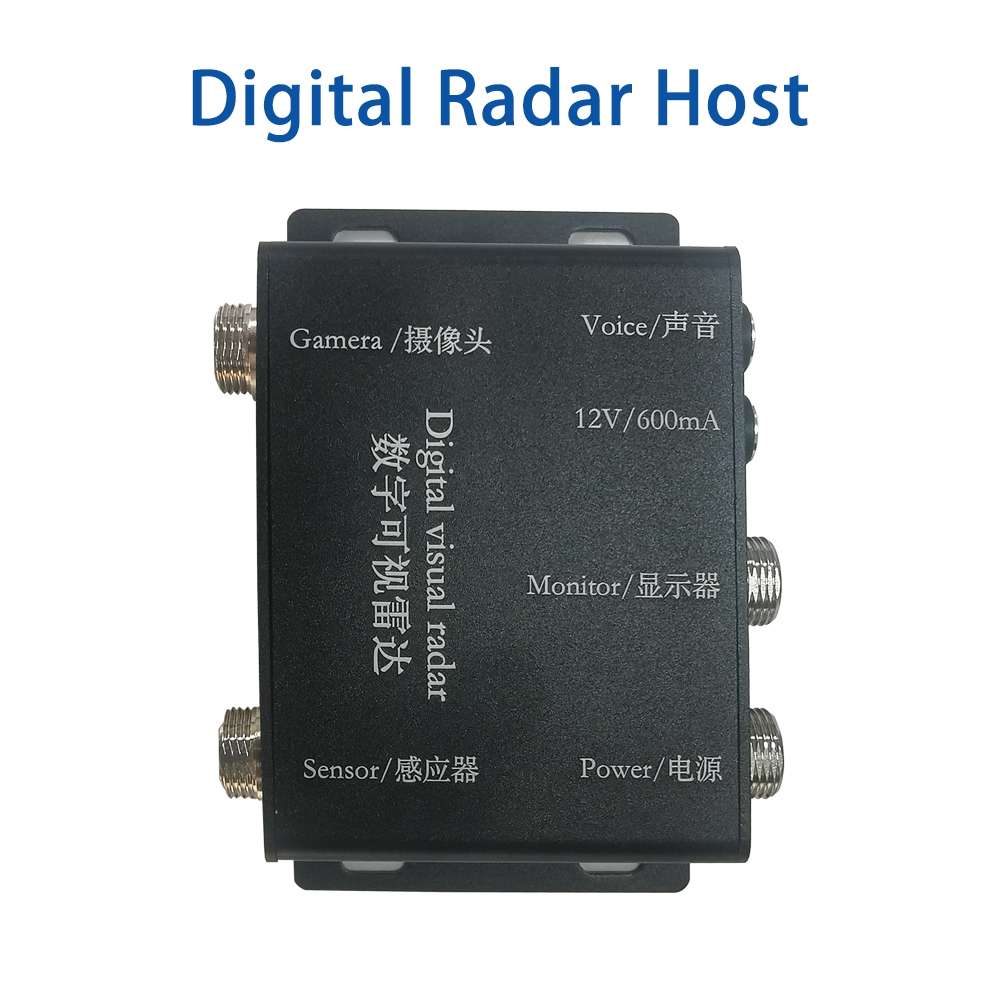

- Digital radar host x 1
- 10-meter aerial video cable x 1
- Buzzer x 1

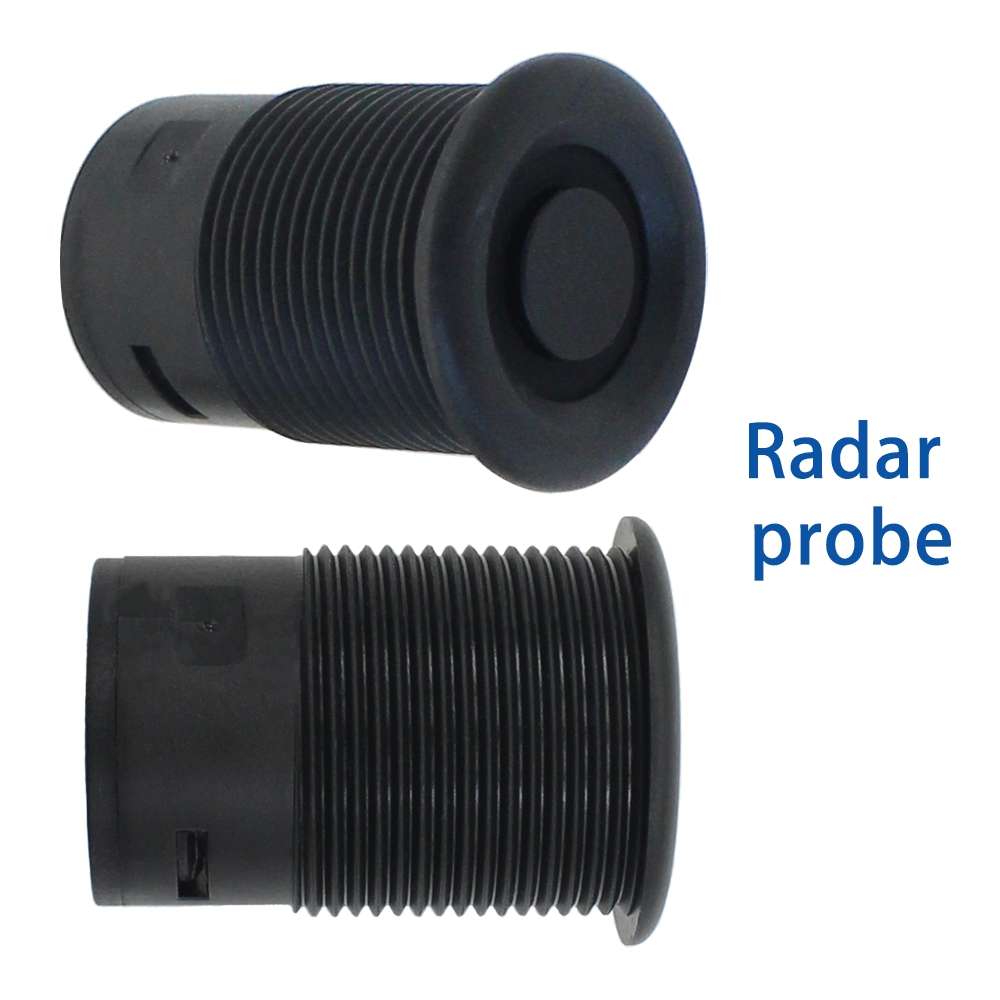

- Digital probe x 4
- Cable x 5
