Features:
1. 4CH digital wireless camera and DVR system
2. Total digital wireless, no interference, no privacy leak
3. 7 inch TFT LCD Monitor with integrated video recorder
4. Support SD card up to 32GB
5. Support 4 cameras/24hours/7 days non-stop overwrite recording
6. Multiple recording modes: manual, schedule and motion activated
7. 6-15 meter night vision range
8. Weather proof outdoor cameras with 100-300m transmission open range
9. Video output function for bigger monitor
10. Simple installation, no cable required
Specifications:
Outdoor Camera:
1. Image Sensor: 1/4" CMOS Sensor
2. Resolution: 640 x 480 Pixel (VGA)
3. Lens: 3.6mm
4. Viewing Angle: 70°
5. Transmission Frequency: ISM 2400 ~ 2483MHz
6. Transmission Power: 23dBm
7. Modulation Type: GFSK
8. Transmission Distance: 100 ~ 300m
9. Power Supply: DC 5V
10. Work Temperature: -10â~+60â
11. Dimensions: (11 x 5.8) cm / (4.33 x 2.28)" (L x Dia.)
12. Color: Black
Indoor Receiver:
1. Modulation Type: GFSK
2. Rceiving Sensitivity: ≤-80dBm
3. LCD: 7" TFT
4. Resolution: 800 x 480 Pixel
5. Video Format: NTSC / PAL
6. Storage Type: Support SD Card Up to 32GB
7. Audio Output: 1.5Vpp
8. Vidoe Output: 1.0Vpp
9. Power Supply: DC 5V or Lithium Battery
10. Receiving Frequency: ISM 2400 ~ 2483MHz
11. Dimensions: (20 x 11.7 x 2) cm / (7.87 x 4.6 x 0.79)" (L x W x H)
12. Total Weight: 2290g / 80.77oz
13. AC Adapter: Input: 100-240V, 50/60HZ
Output: 5V, 2A

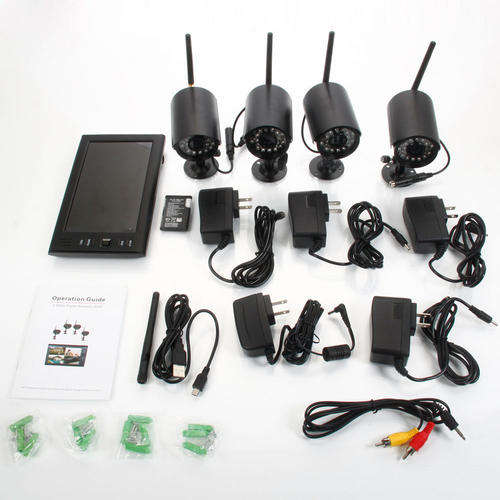

Package Includes:
1 x Indoor Receiver
4 x Outdoor Camera
5 x US Standard AC Adaptor
1 x USB Cable
1 x A/V Cable
5 x Antennas
1 x Lithium Battery
4 x Screws Set
4 x Bracket
1 x User Manual
