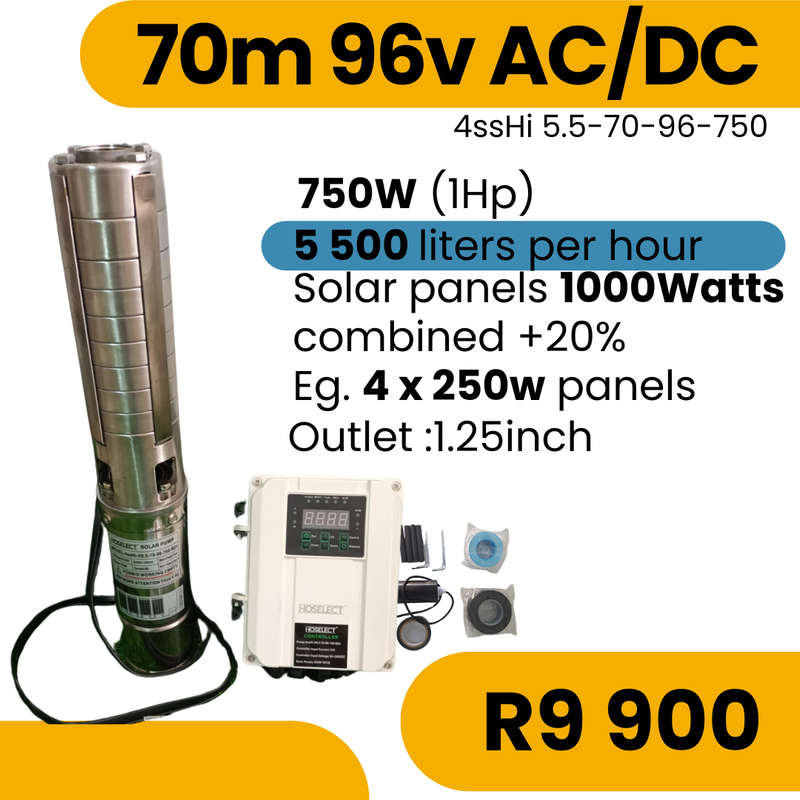

70m 96V AC/DC Solar Borehole Pump

Max Head: 70m

Max Flow 5500 liter per hour

96v

750W

 1Hp

This pump needs 1000watts of solar panels combined.**

Eg. 4x 250watt panels

**We suggest you go 20% bigger since most solar panels on the market in South Africa is around 23% less power than what it tells you on the lable.

Solar panels sold separately.

Energy supply:

1. Solar panels (DC)

2. Battery (DC)

3. Generator (AC)

4. AC power grid - eskom power(AC)

Why you should choose this borehole pump.

* They sport a brushless permanent magnetic motor, which means efficiency is improved by 20%-40%,

* The frequency conversion and controller is outside

* Soft start running -makes motor life longer

* Powered by AC/DC

(AC power include: grid electricity and generator electricity;

DC power include: solar panel and battery)

Meaning you will never be without water.

* Comes with an MPPT controlled, to maximize the energy you get from the sun even on cloudy days

* Reverse protection

* Locked rotor protection

* Phase protection

* Over current protection

* Phase deficiency protection

* Low water level sensor protection built in

* High water level sensor protection

* AC/DC input option by manual

* Spare parts readily available.

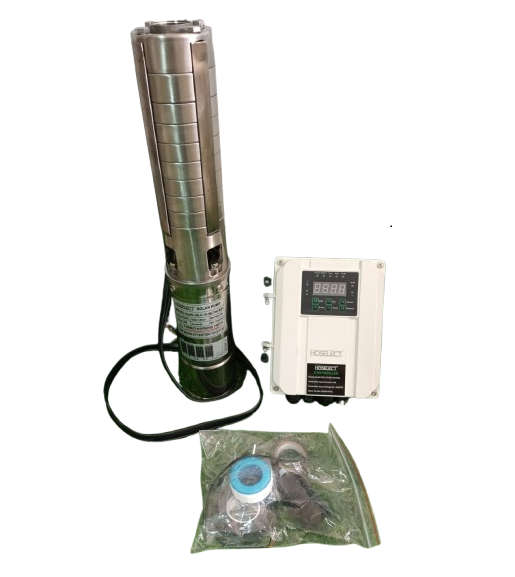

What comes in the box

-Borehole Pump

-MPPT Controller

-High level water sensor(for your tank/dam)

-User manual

-Change over switch built in

-Accessories (sealers & tape)
