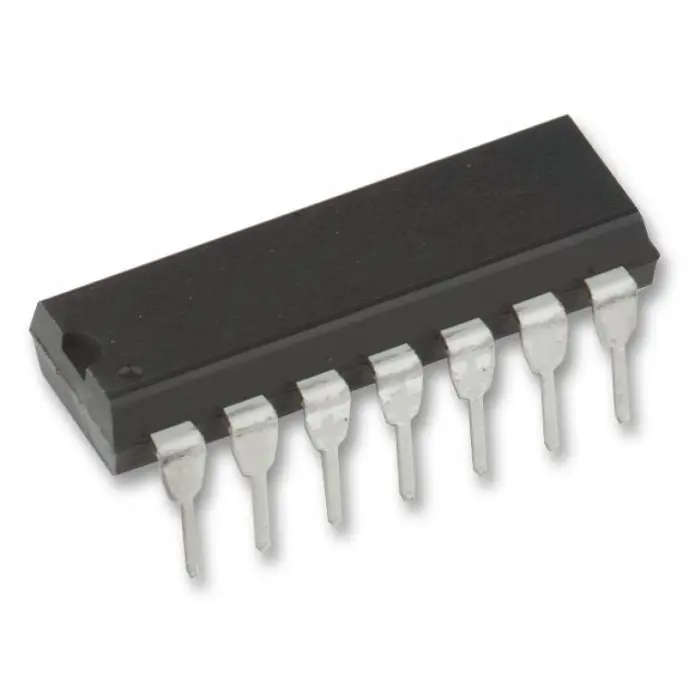

74F10N NAND Gate
NAND Gates are a very important component to use if you want to keep your logic circuit as small and simple as possible. Building this specific NAND gate with normal 2 input gates will take as many as 3 different gates, which increases the overall size and complexity of your circuit.
Even though the F family of logic gates are not a very common family, and they can not easily communicate with all the other families of logic gates, they have the great advantage of switching with extremely high speed and very low delay times. They are ideal to use in circuits that have to process a lot of data and provide the correct output in the shortest possible time.
Pin layout:
Technical specifications:
Max supply voltage | 7V |
| Max input voltage | 7V |
| Max output voltage | Supply voltage |
| Min high level input voltage | 2V |
| Max low level input voltage | 0.8V |
Extra resources:
Datasheet for 74F10N
