775 All Copper Motor Double Outlet Shaft Belt Sander Polisher Engraving Drill Grinder High Torque...

1. Voltage: DC 12/24V
2. Maximum current: 12A
3. Power: 12V 5000 rpm: 150W; 24V 10000 rpm: 288W
4. Maximum torque: 12V 5000 rpm: 2kg; 24V 10000 rpm: 3.8kg

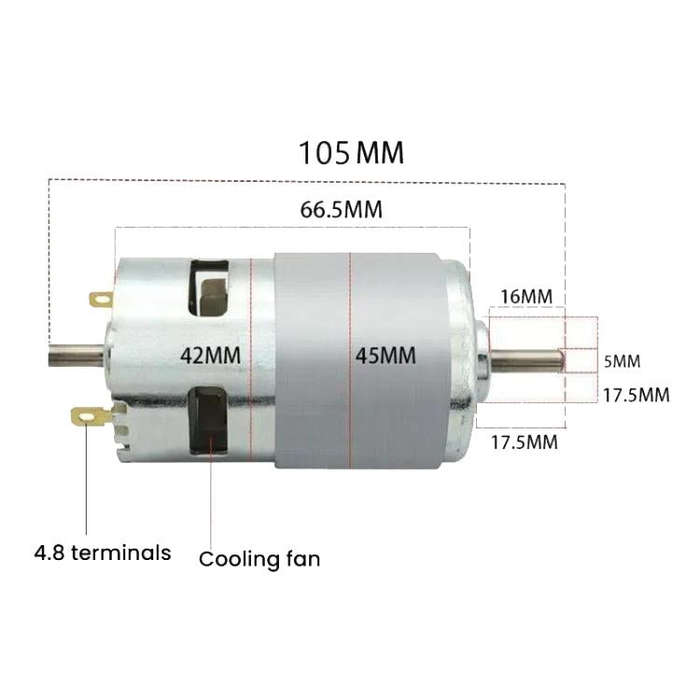

5. Motor shaft diameter: 5mm
6. Size: about 10.5 x 4.5cm

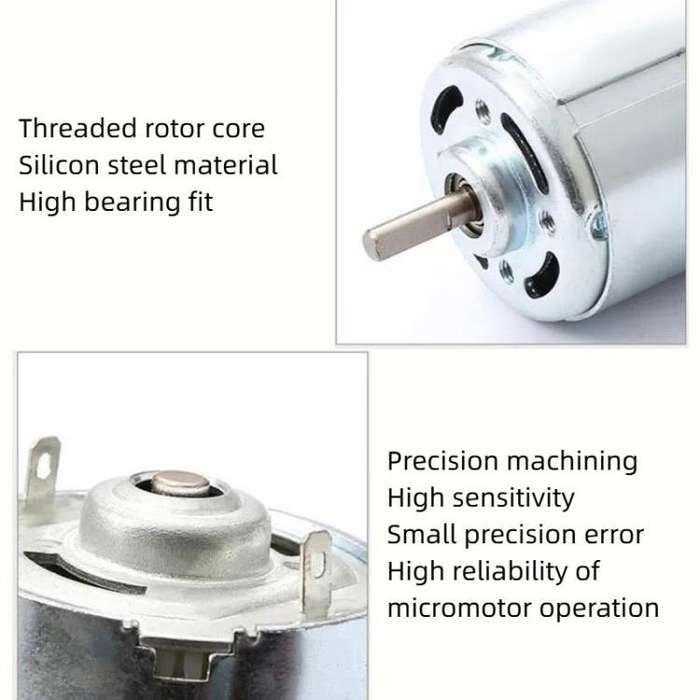

1. Threaded rotor core, made of silicon steel, high bearing fit
2. Precision machining, high sensitivity, small precision error, high reliability of micro motor operation
3. Compact structure, easy to install, low current, high torque, stable operation
4. Copper core motor: three layers of high-density molecular coating, effectively isolate dust, high temperature resistance, high torque
5. Strong magnetic tile: strong magnetic energy can effectively improve the magnetic field of the motor, improve the performance of the copper core rotor, and reduce losses
6. Ball bearings: reduce power transmission by rolling, friction during the process and improve transmission efficiency

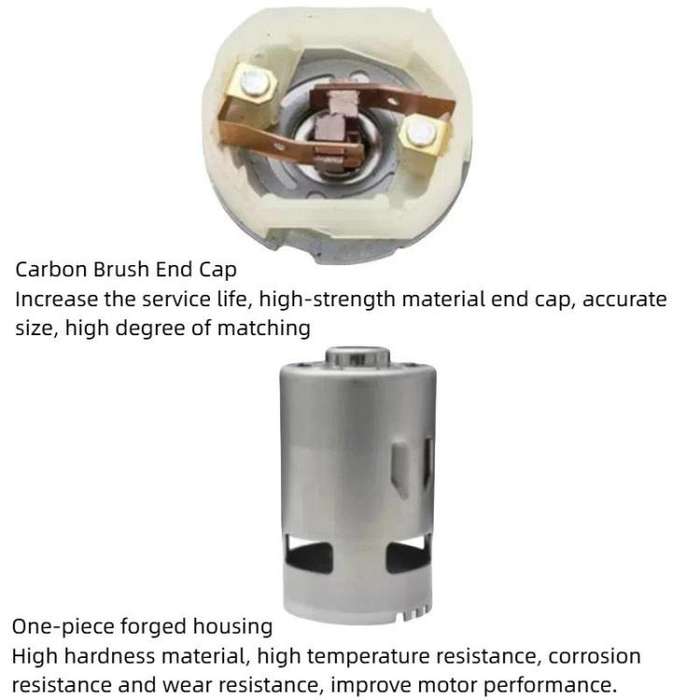

7. Carbon brush end caps: increase service life, high-strength material end caps, precise size, high matching degree
8. One-piece forged housing: high-hardness material, high temperature resistance, corrosion resistance, wear resistance, improve motor performance
