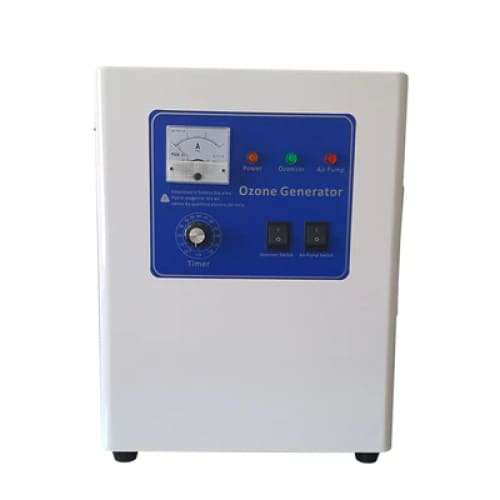

7g/hr Ozone Generator Qla-7gw

Technical Specifications

• Power: 120W
• Injection Range: 0-150m3
• Ozone Concentration: 15-25g/m3
• Unit Dimensions: 32cm x 25cm x 41cm
• Package Dimensions: 41cm x 33cm x 47cm
• Net Weight: 8.8kg
• Gross Weight: 10kg
• Cooling Way: Air Cooling
• Voltage: 220V/50Hz
• Gas Feeding: Air Source
• Air Pump Model: Air Pump 16L
• Outer Flow: 16L
• Chassis Material: Carbon Steel Spray Painted
• Cooling Fans: 38W/15cm x 15cm x 5cm

Functions

• Efficiently destroy a variety of bacteria and viruses, but without secondary pollution.
• Effectively remove residual pesticides from vegetables and fruits.
• Eliminate mold, smoke, and remove bad odor.
• Improve the oxygen level for air and water.
• Purifies the air and expedites human metabolism. Removes skin pore dirt, bacteria, and prevent freckles, acne, and pigmentation.

Operating Environment

• Ambient Temperature: -10°C ~37°C
• Ambient Humidity: ¤55%
• There should be no flammable or explosive gas and conductive power dust in the room. It is not permittable to install the unit in a place where alkaline air is easy to leak or with a risk of an explosion that could occur.
• The ground for equipment installation must be horizontal, and the equipment should be placed on the ground or steady supports
• There must be a draft fan or air conditioner to keep the air dry and the operating environment in good ventilation.

Safety Notes

• This series of products use a 220V/50Hz AC power source. If the voltage and frequency fluctuation range is heavy, this may cause damage and equipment failure.
• The power cord plugs should keep in contact with the socket firmly. If not, this may cause abnormal electricity usage, and even cause electrocution.
• Users should regularly check the power cord, and avoid standing or putting heavy objects on the power cord.
• Please dont use the unit in an environment that contains explosive products.
• In operation, the machine uses high voltage. Dont open the back door or touch the inside of the unit when its plugged in.
• Avoid inside contact with water as this will damage the unit.
